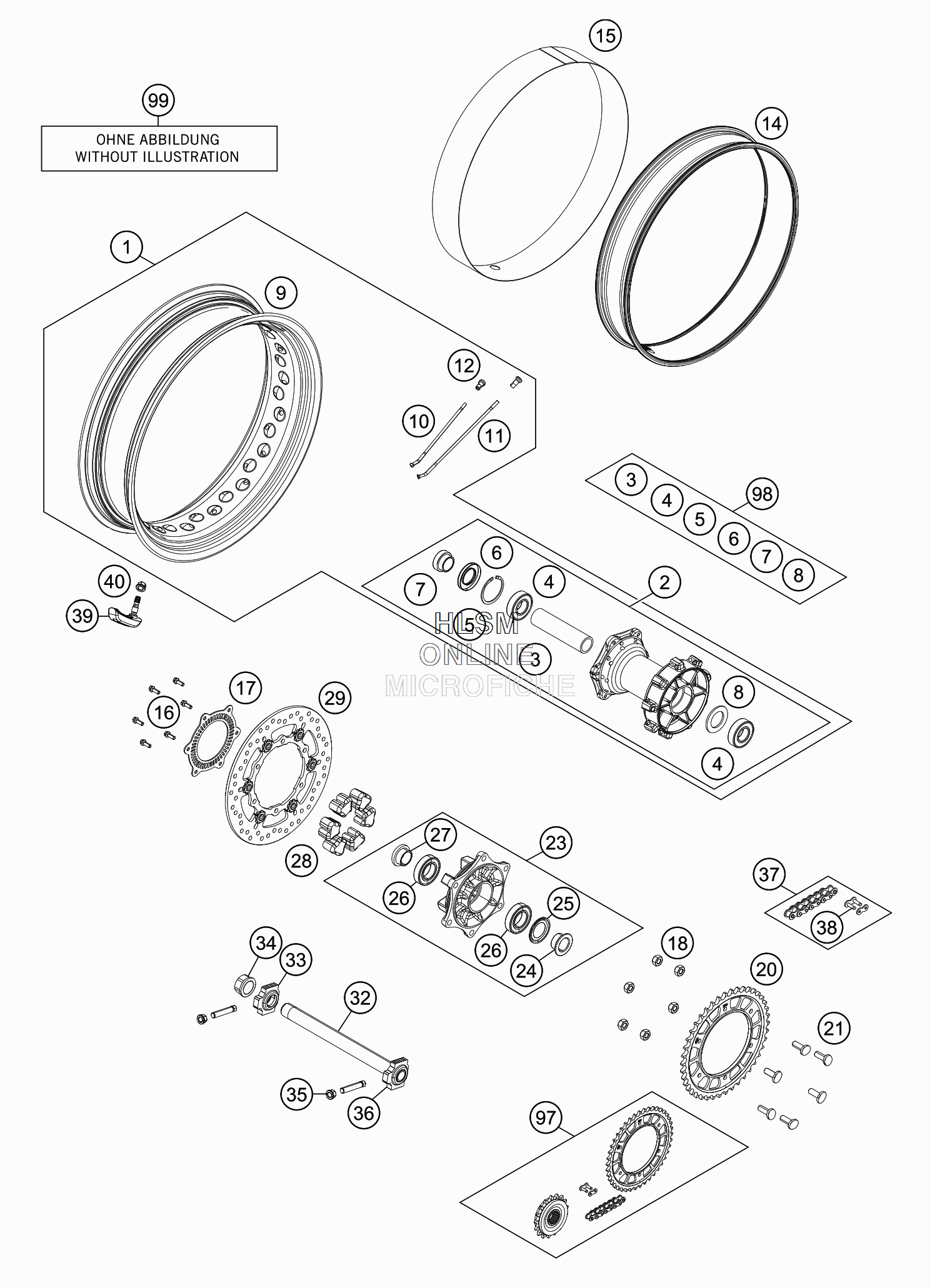

REAR WHEEL для Ktm 1290 SUPER ADVENTURE T - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    6041000114433A REAR WHEEL COMPLETE. 5''X17''
    REAR WHEEL COMPLETE. 5''X17''
  • 2
    60310010144KBA REAR HUB CPL.
    REAR HUB CPL.
  • 3
    60010011000 BEAR. SPACERTUBE L=124,8MM 03
    BEAR. SPACERTUBE L=124,8MM 03
  • 4
    0625062052 GR.BALL BEAR. 6205-2RSHC3HMTF7
    GR.BALL BEAR. 6205-2RSHC3HMTF7
  • 5
    0472052200 CIRCLIP DIN0472-52X2
    CIRCLIP DIN0472-52X2
  • 6
    0760305271 SHAFT SEAL RING 30X52X7
    SHAFT SEAL RING 30X52X7
  • 7
    60310013000 SPACER BUSHING REAR WHEEL R/S
    SPACER BUSHING REAR WHEEL R/S
  • 8
    60010015000 SPACER RING
    SPACER RING
  • 9
    6041007010033A REAR RIM 5,0X17" TL
    REAR RIM 5,0X17" TL
  • 10
    60310271000 SPOKE 5/4.37/M5
    SPOKE 5/4.37/M5
  • 11
    60310371000 SPOKE 5/4.37/M5
    SPOKE 5/4.37/M5
  • 12
    60310072100 SPOKE SIPPLE QUADRAX M5
    SPOKE SIPPLE QUADRAX M5
  • 14
    60310277100 GASKET RUBBER 5"X17"
    GASKET RUBBER 5"X17"
  • 15
    60310173200 RIM BAND 17"
    RIM BAND 17"
  • 16
    59009062016 SPECIAL SCREW M6X16 WS=8 10.9
    SPECIAL SCREW M6X16 WS=8 10.9
  • 17
    60142021100 SENSOR GEAR ABS REAR
    SENSOR GEAR ABS REAR
  • 18
    0980101253 HEXAG.NUT DIN 980V M10X1,25 SL
    HEXAG.NUT DIN 980V M10X1,25 SL
  • 20
    60010051042 REAR SPROCKET 42-T
    REAR SPROCKET 42-T
  • 21
    60010052000 SPROCKET SCREW M10X1,25
    SPROCKET SCREW M10X1,25
  • 23
    6011005004433 SPROCKET SUPPORT CPL. BLACK
    SPROCKET SUPPORT CPL. BLACK
  • 24
    60110012000 SPACER BUSH. SPROCKET SUPP. 06
    SPACER BUSH. SPROCKET SUPP. 06
  • 25
    60110016000 NILOS RING 6006AV
    NILOS RING 6006AV
  • 26
    0625060060 BALL BEARING 6006 DDU2CG23S6NM
    BALL BEARING 6006 DDU2CG23S6NM
  • 27
    60110014000 SPACER BUSH. SPR. SUPP. IN. 06
    SPACER BUSH. SPR. SUPP. IN. 06
  • 28
    54610459000 RUBBER DAMPING BLOCK
    RUBBER DAMPING BLOCK
  • 29
    6031006000030 BRAKE DISK REAR
    BRAKE DISK REAR
  • 32
    60310081044 AXLE REAR CPL.
    AXLE REAR CPL.
  • 33
    60010084000 CHAIN TENSIONER R/S LC8
    CHAIN TENSIONER R/S LC8
  • 34
    61010086000 COLLAR NUT M25X1,5 WS=32
    COLLAR NUT M25X1,5 WS=32
  • 35
    58414030000 HH COLLAR NUT M10X1,25
    HH COLLAR NUT M10X1,25
  • 36
    50304040100 SCREW M10X1,25X50 WS=10
    SCREW M10X1,25X50 WS=10
  • 37
    60410165118 CHAIN 525 SDZZ WITH MAST. LINK (RIVET TOOL NEEDED)
    CHAIN 525 SDZZ WITH MAST. LINK (RIVET TOOL NEEDED)
  • 38
    60410066000 MASTER LINK F.CHAIN 525 SDZZ
    MASTER LINK F.CHAIN 525 SDZZ
  • 39
    60312033000 TIRE AIR PRESSURE SENSOR
    TIRE AIR PRESSURE SENSOR
  • 40
    60312033050 NUT AIR PRESSURE SENSOR
    NUT AIR PRESSURE SENSOR
  • 97
    00050002013 DRIVETRAIN KIT ADV/-S 17T/42T
    DRIVETRAIN KIT ADV/-S 17T/42T
  • 98
    60310015000 REAR WHEEL REP. KIT ADV 13-14
    REAR WHEEL REP. KIT ADV 13-14
  • 99
    60312034044 VALVE KIT AIR PRESSURE SENSOR
    VALVE KIT AIR PRESSURE SENSOR
