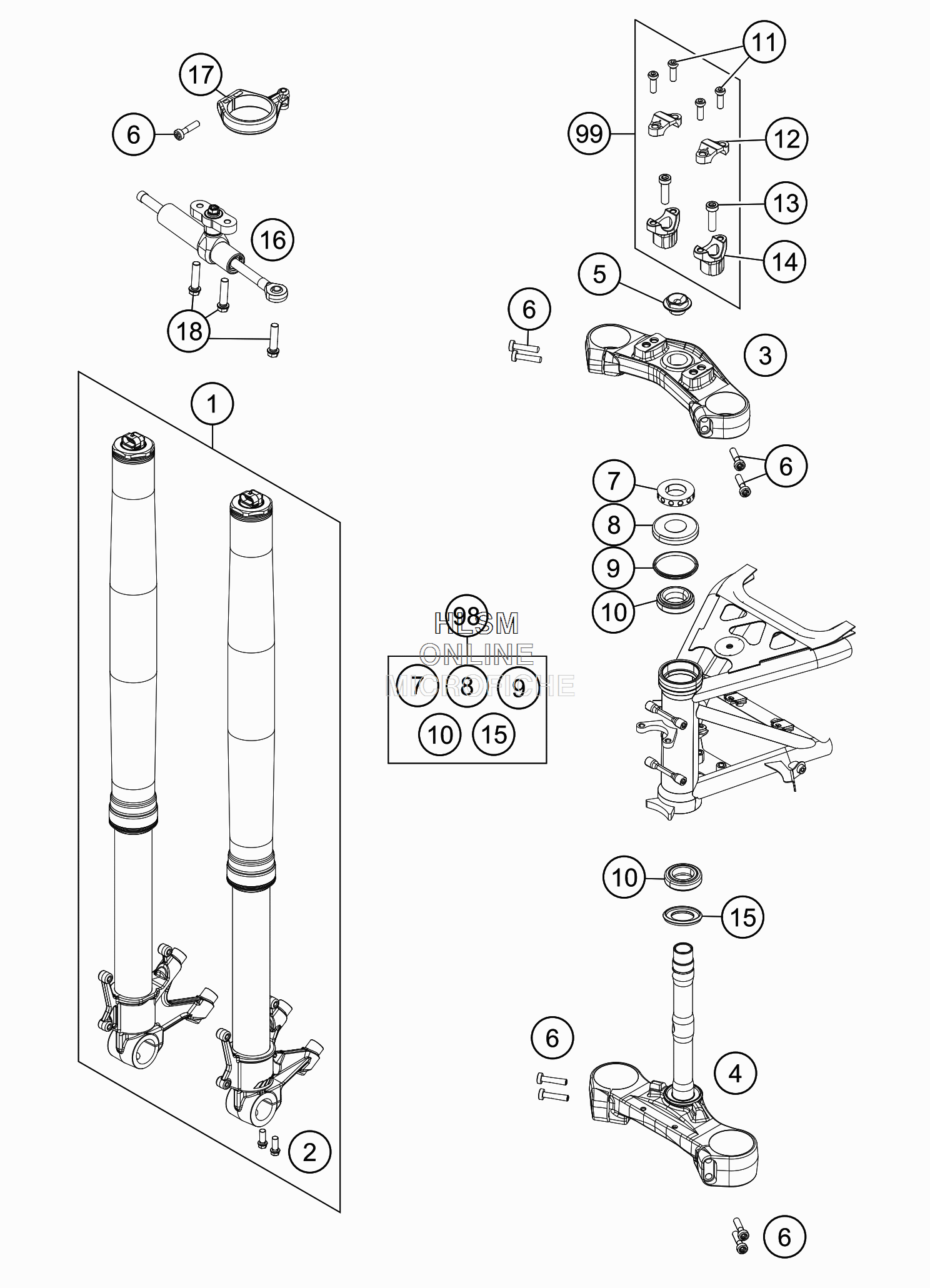

FRONT FORK - TRIPLE CLAMP для Ktm 1290 SUPER ADVENTURE T - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    14181Q2601 FORK SAFE ADVENTURE 2017
    FORK SAFE ADVENTURE 2017
  • 2
    0025080206S HH COLLAR SCREW M8X20 ISA40
    HH COLLAR SCREW M8X20 ISA40
  • 3
    6030103403233S TOP TRIPLE CLAMP
    TOP TRIPLE CLAMP
  • 4
    6030103203233S BOTTOM TRIPLE CLAMP CPL.
    BOTTOM TRIPLE CLAMP CPL.
  • 5
    6030103600001 STEER.HEAD SCREW M22X1,5 SW27
    STEER.HEAD SCREW M22X1,5 SW27
  • 6
    0035080356 AH-COLLAR SCREW M8X35 ISA45
    AH-COLLAR SCREW M8X35 ISA45
  • 7
    57301036100 STEER.HEAD NUT
    STEER.HEAD NUT
  • 8
    61001086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 9
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 10
    54201081100 TAPERED ROLLER BEARING CPL.
    TAPERED ROLLER BEARING CPL.
  • 11
    0025080256 HH COLLAR SCREW M8X25
    HH COLLAR SCREW M8X25
  • 12
    7720103800030 HANDLEBAR CLAMP 28MM
    HANDLEBAR CLAMP 28MM
  • 13
    0032100356S AH-COLLAR SCREW M10X35 ISA45
    AH-COLLAR SCREW M10X35 ISA45
  • 14
    5940103903730 HANDLEB.SUPP. D=28MM H=37MM
    HANDLEB.SUPP. D=28MM H=37MM
  • 15
    77701084000 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 16
    16181N53ES STEERING DAMPER CPL.
    STEERING DAMPER CPL.
  • 17
    6031200700033S CLAMP STEERING DAMPER
    CLAMP STEERING DAMPER
  • 18
    0025080256S HH COLLAR SCREW M8X25
    HH COLLAR SCREW M8X25
  • 98
    60301081010 STEARING HEAD REP. KIT ADV 13
    STEARING HEAD REP. KIT ADV 13
  • 99
    00050000927 HANDLEBAR SUPPOR T KIT ADV .1190
    HANDLEBAR SUPPOR T KIT ADV .1190
