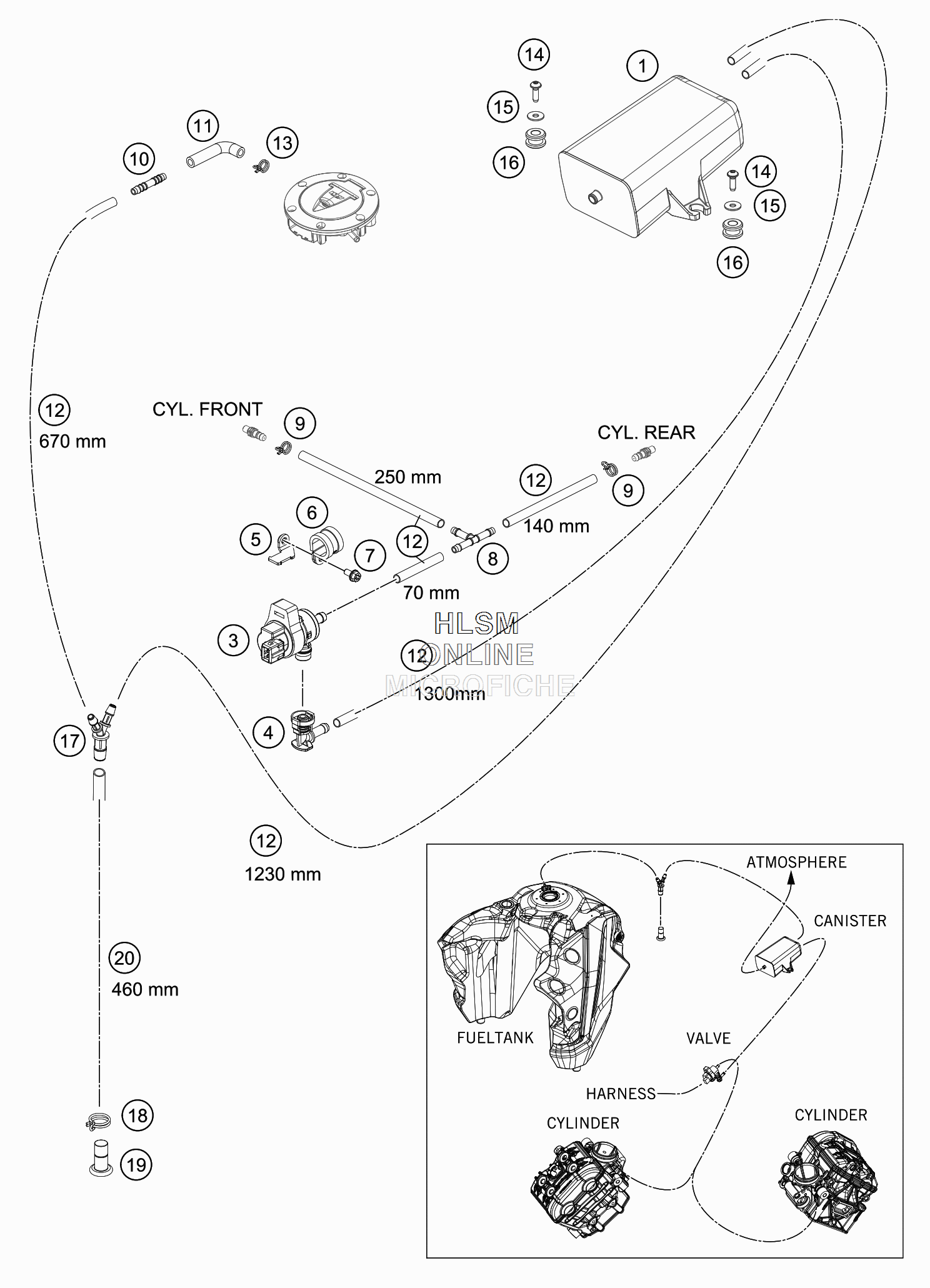

EVAPORATE CANISTER для Ktm 1290 SUPER ADVENTURE T - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    60415001000 EVAPORATE CANISTER
    EVAPORATE CANISTER
  • 3
    61115015000 VALVE FOR CARBON CANISTER
    VALVE FOR CARBON CANISTER
  • 4
    61115016000 FITTING PIECE NQV2 NW7 90°
    FITTING PIECE NQV2 NW7 90°
  • 5
    76515032000 RETAINING PLATE VALVE EC
    RETAINING PLATE VALVE EC
  • 6
    59007439000 CLAMP RSGU 18/15
    CLAMP RSGU 18/15
  • 7
    0025050106 COLLAR SCREW M5X10 ISA30
    COLLAR SCREW M5X10 ISA30
  • 8
    60015022000 T-CONNECTOR TS-6
    T-CONNECTOR TS-6
  • 9
    58007017000 YDNAC CLAMP 10101 (10,4MM)
    YDNAC CLAMP 10101 (10,4MM)
  • 10
    69015019010 HOSE CONNECTION STRAIGHT
    HOSE CONNECTION STRAIGHT
  • 11
    61315022000 PREFORMED HOSE 6X10 FPM
    PREFORMED HOSE 6X10 FPM
  • 12
    78015019000 HOSE EPA D=6/10 L=2000MM
    HOSE EPA D=6/10 L=2000MM
  • 13
    59007017000 CLAMP YDNAC 10096F (9,6MM)
    CLAMP YDNAC 10096F (9,6MM)
  • 14
    0081050161 EJOT PT SCREW K50X16 1451
    EJOT PT SCREW K50X16 1451
  • 15
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 16
    60039030000 VIBRATION DAMPER DIGITALBOX
    VIBRATION DAMPER DIGITALBOX
  • 17
    61315028100 Y-CONNECTOR YS 6-10-6
    Y-CONNECTOR YS 6-10-6
  • 18
    58431082100 YDNAC-CLAMP 10173 (16MM)
    YDNAC-CLAMP 10173 (16MM)
  • 19
    61315026000 PLUG D=10
    PLUG D=10
  • 20
    78015119000 HOSE EPA D=10/16 L=2000MM
    HOSE EPA D=10/16 L=2000MM
