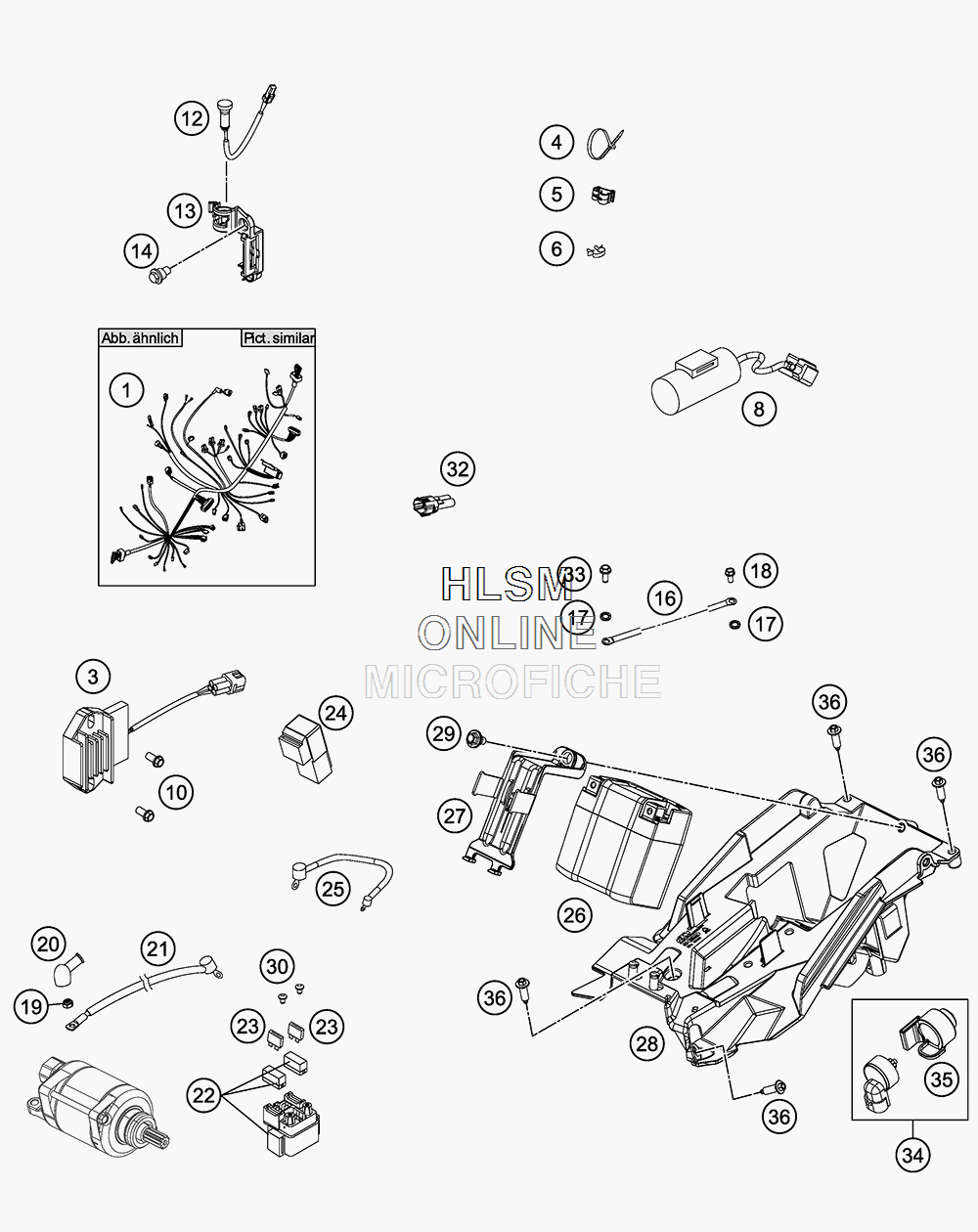

WIRING HARNESS для Ktm 450 SX-F FACTORY EDITION - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    79211075000 WIRING HARNESS
    WIRING HARNESS
  • 3
    77211034000 VOLTAGE REGULATOR
    VOLTAGE REGULATOR
  • 4
    44011076140 CABLE TIE 140/2,5MM (BLACK)
    CABLE TIE 140/2,5MM (BLACK)
  • 4
    44011076200 CABLE TIE 200/3,6MM (BLACK)
    CABLE TIE 200/3,6MM (BLACK)
  • 4
    44011076305 CABLE TIE 300/4,8MM (BLACK)
    CABLE TIE 300/4,8MM (BLACK)
  • 5
    83013026000 CABLE GUIDE
    CABLE GUIDE
  • 6
    58111076000 CABLE SUPPORT KHS NR.150-47610
    CABLE SUPPORT KHS NR.150-47610
  • 8
    79011035000 CONDENSER
    CONDENSER
  • 10
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 12
    81214083000 INDICATOR LIGHT LED (YELLOW) FI
    INDICATOR LIGHT LED (YELLOW) FI
  • 13
    77214098000 HOLDER INDICATOR LIGHT
    HOLDER INDICATOR LIGHT
  • 14
    59001092050 SPECIAL SCREW M6X12,5
    SPECIAL SCREW M6X12,5
  • 16
    58411097100 GROUND CABLE D=6MM L=140MM
    GROUND CABLE D=6MM L=140MM
  • 17
    58411098100 CONTACT WASHER M6 VSV-K6
    CONTACT WASHER M6 VSV-K6
  • 18
    0009050106 EJOT SPIRAL SCREW SF M5X10-K
    EJOT SPIRAL SCREW SF M5X10-K
  • 19
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 20
    77240099000 PROTECTION CAP F. STARTER ENG.
    PROTECTION CAP F. STARTER ENG.
  • 21
    58411059100 STARTERCABLE 700 MM
    STARTERCABLE 700 MM
  • 22
    58211058000 STARTER RELAY 12V
    STARTER RELAY 12V
  • 23
    58011109110 FUSE 10 A
    FUSE 10 A
  • 24
    61111057000 RELAY CM1A-R-12V-H80
    RELAY CM1A-R-12V-H80
  • 25
    58711086000 WIRING HARNESS BATTERY
    WIRING HARNESS BATTERY
  • 26
    79011153000 BATTERY 12V / 2,2AH
    BATTERY 12V / 2,2AH
  • 27
    79011056000 BATTERY BOX SUPPORT
    BATTERY BOX SUPPORT
  • 28
    79011055000 BATTERY BOX
    BATTERY BOX
  • 29
    83008000012 SPECIAL SCREW M6X12X3
    SPECIAL SCREW M6X12X3
  • 30
    0902060083 AH OVAL SCREW ISO 7380 M 6X8
    AH OVAL SCREW ISO 7380 M 6X8
  • 32
    69011040000 END PLUG CAN-BUS
    END PLUG CAN-BUS
  • 33
    0025050126 HH COLLAR SCREW M5X12
    HH COLLAR SCREW M5X12
  • 34
    76511010000 MAP-SELECT-SWITCH
    MAP-SELECT-SWITCH
  • 35
    76511010050 RUBBER HOLDER F. MAP-SEL-SWIT.
    RUBBER HOLDER F. MAP-SEL-SWIT.
  • 36
    0017060205 SCREW FOR PLASTIC K60X20
    SCREW FOR PLASTIC K60X20
