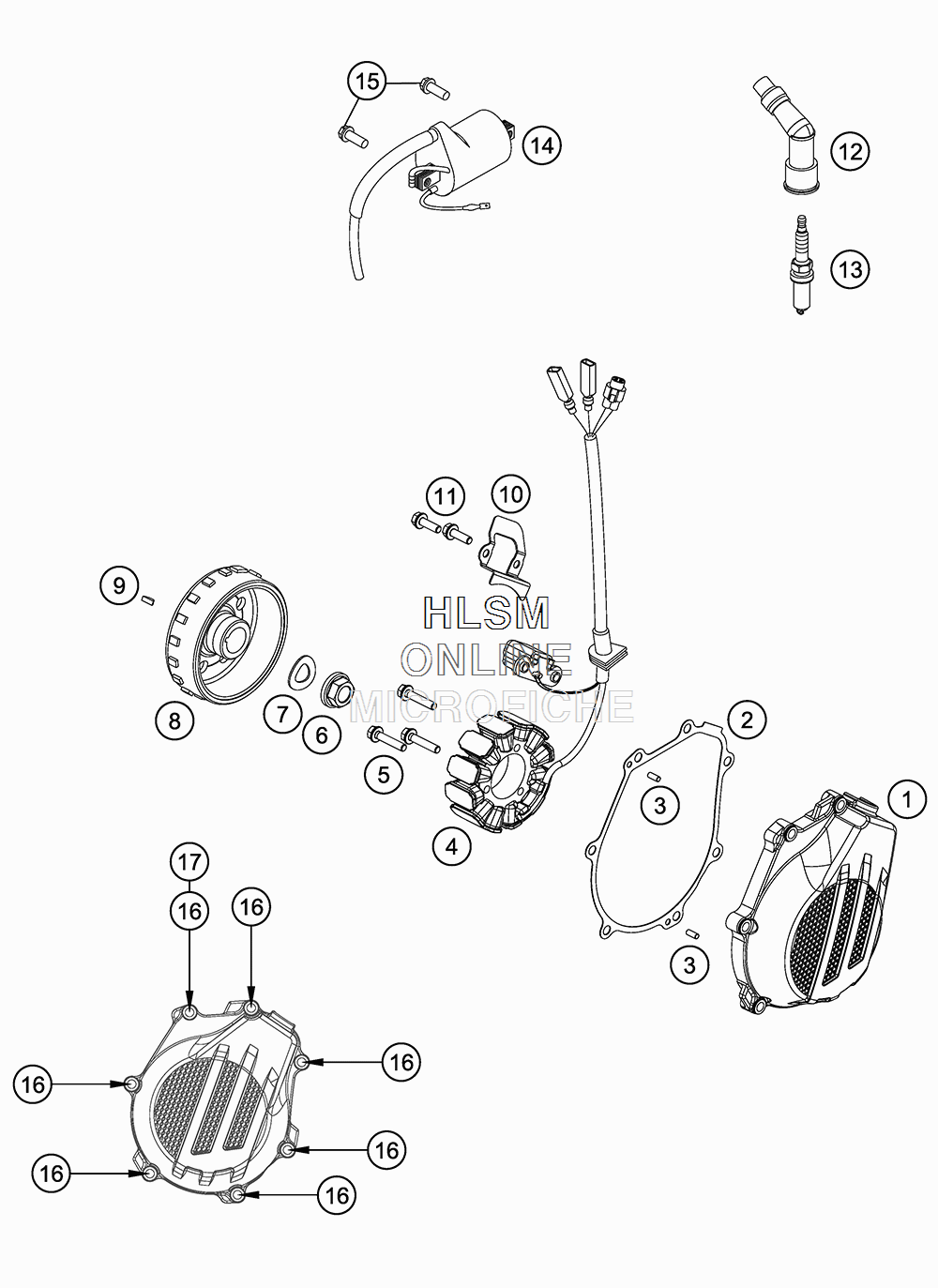

IGNITION SYSTEM для Ktm 450 SX-F FACTORY EDITION - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    7943000200015 IGNITION COVER
    IGNITION COVER
  • 2
    79430040000 IGNITION COVER GASKET
    IGNITION COVER GASKET
  • 3
    0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8
    NEEDLE ROL.DIN5402 NRB 4X9,8
  • 4
    79239004000 STATOR
    STATOR
  • 5
    0025050256 HH COLLAR SCREW M5X25 ISA30
    HH COLLAR SCREW M5X25 ISA30
  • 6
    49030021000 COLLAR NUT M12X1 R/S
    COLLAR NUT M12X1 R/S
  • 7
    0137120000 SPRING WASHER DIN0137-B12
    SPRING WASHER DIN0137-B12
  • 8
    79439005000 ROTOR
    ROTOR
  • 9
    0888030050 WOODRUFF KEY DIN6888-3X5X13
    WOODRUFF KEY DIN6888-3X5X13
  • 10
    79430002050 CABLE HOLDER PLATE
    CABLE HOLDER PLATE
  • 11
    0025050166 HH COLLAR SCREW M5X16
    HH COLLAR SCREW M5X16
  • 12
    78039090100 SPARK PLUG CONNECTOR
    SPARK PLUG CONNECTOR
  • 13
    77239093000 PLUG NGK (LMAR9AI - 8)
    PLUG NGK (LMAR9AI - 8)
  • 14
    58439006000 IGNITION COIL IG3826 KOKUSAN
    IGNITION COIL IG3826 KOKUSAN
  • 15
    0026060186 COLLAR SCREW M6X18 ISA30
    COLLAR SCREW M6X18 ISA30
  • 16
    0025060256 HH COLLAR SCREW M6X25
    HH COLLAR SCREW M6X25
  • 17
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
