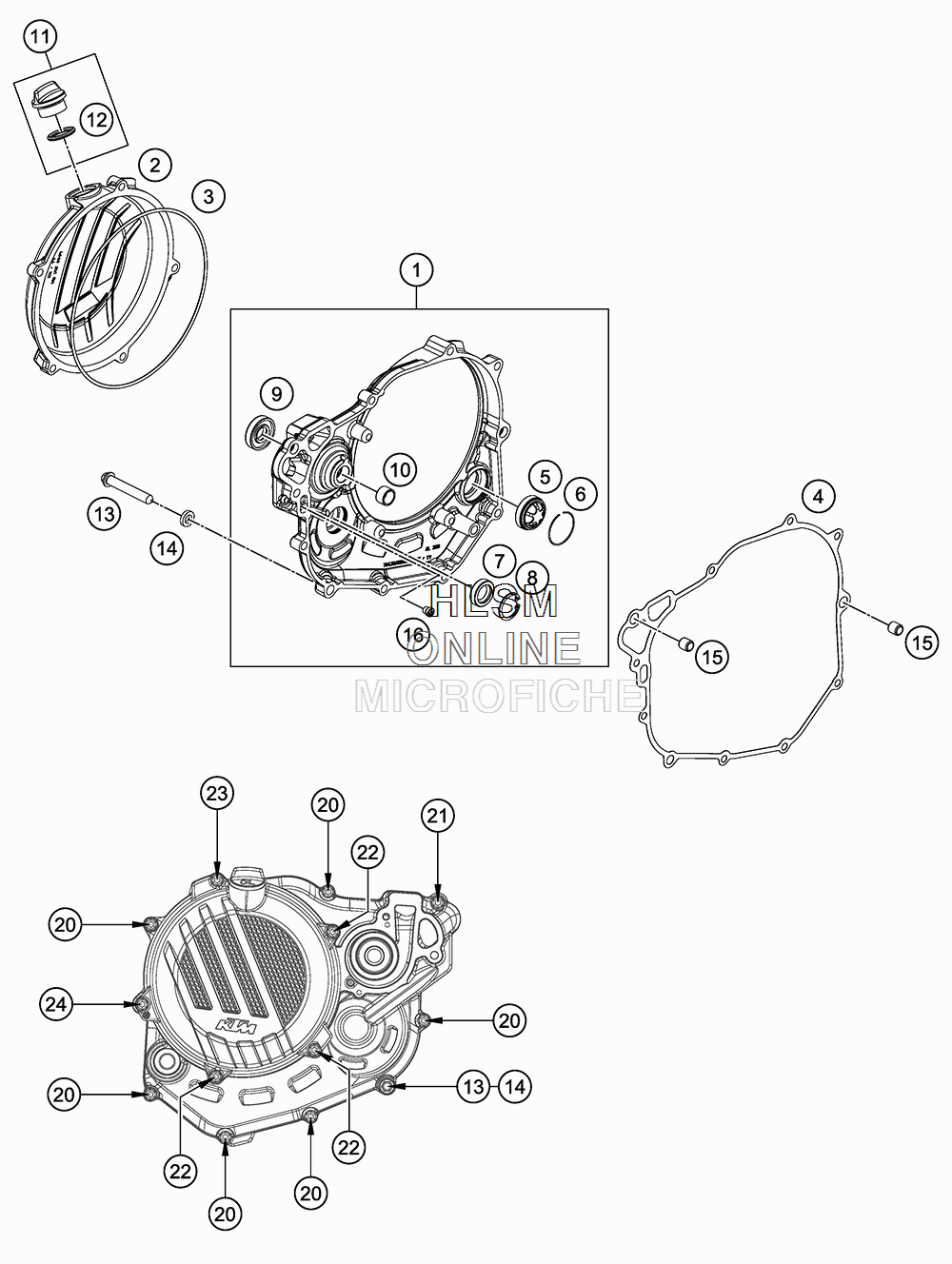

CLUTCH COVER для Ktm 450 SX-F FACTORY EDITION - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    79430001044 CLUTCH COVER CPL.
    CLUTCH COVER CPL.
  • 2
    7943002600015 OUTER CLUTCH COVER
    OUTER CLUTCH COVER
  • 3
    78130027000 GASKET - CLUTCH OUTER COVER
    GASKET - CLUTCH OUTER COVER
  • 4
    79430025000 INNER CLUTCH COVER GASKET
    INNER CLUTCH COVER GASKET
  • 5
    59030019200 OIL SIGHT GLASS
    OIL SIGHT GLASS
  • 6
    61030019050 CIRCLIP OIL LEVEL GLASS
    CIRCLIP OIL LEVEL GLASS
  • 7
    0760142460 SHAFT SEAL RING 14X24X6 B
    SHAFT SEAL RING 14X24X6 B
  • 8
    0472024120 CIRCLIP DIN0472-24X1.2
    CIRCLIP DIN0472-24X1.2
  • 9
    0760123073 SHAFT SEAL RING 12X30X7 PTFE
    SHAFT SEAL RING 12X30X7 PTFE
  • 10
    79430057010 FRICTION BEAR. BUSH BALANC.SH.
    FRICTION BEAR. BUSH BALANC.SH.
  • 11
    79430020033 OIL FILLER CAP M24X3 WITH O-RING
    OIL FILLER CAP M24X3 WITH O-RING
  • 12
    0770191015 O-RING 19,00X3,00 NBR
    O-RING 19,00X3,00 NBR
  • 13
    78030080000 LOCATING SCREW
    LOCATING SCREW
  • 14
    58030081000 CU-SEAL RING 8 X 14 X 3
    CU-SEAL RING 8 X 14 X 3
  • 15
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 16
    57031523145 MAIN JET 145
    MAIN JET 145
  • 20
    0025060256 HH COLLAR SCREW M6X25
    HH COLLAR SCREW M6X25
  • 21
    0025060306 HH COLLAR SCREW M6X30
    HH COLLAR SCREW M6X30
  • 22
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 23
    0025060456 HH COLLAR SCREW M6X45
    HH COLLAR SCREW M6X45
  • 24
    0025060506 HH COLLAR SCREW M6X50
    HH COLLAR SCREW M6X50
