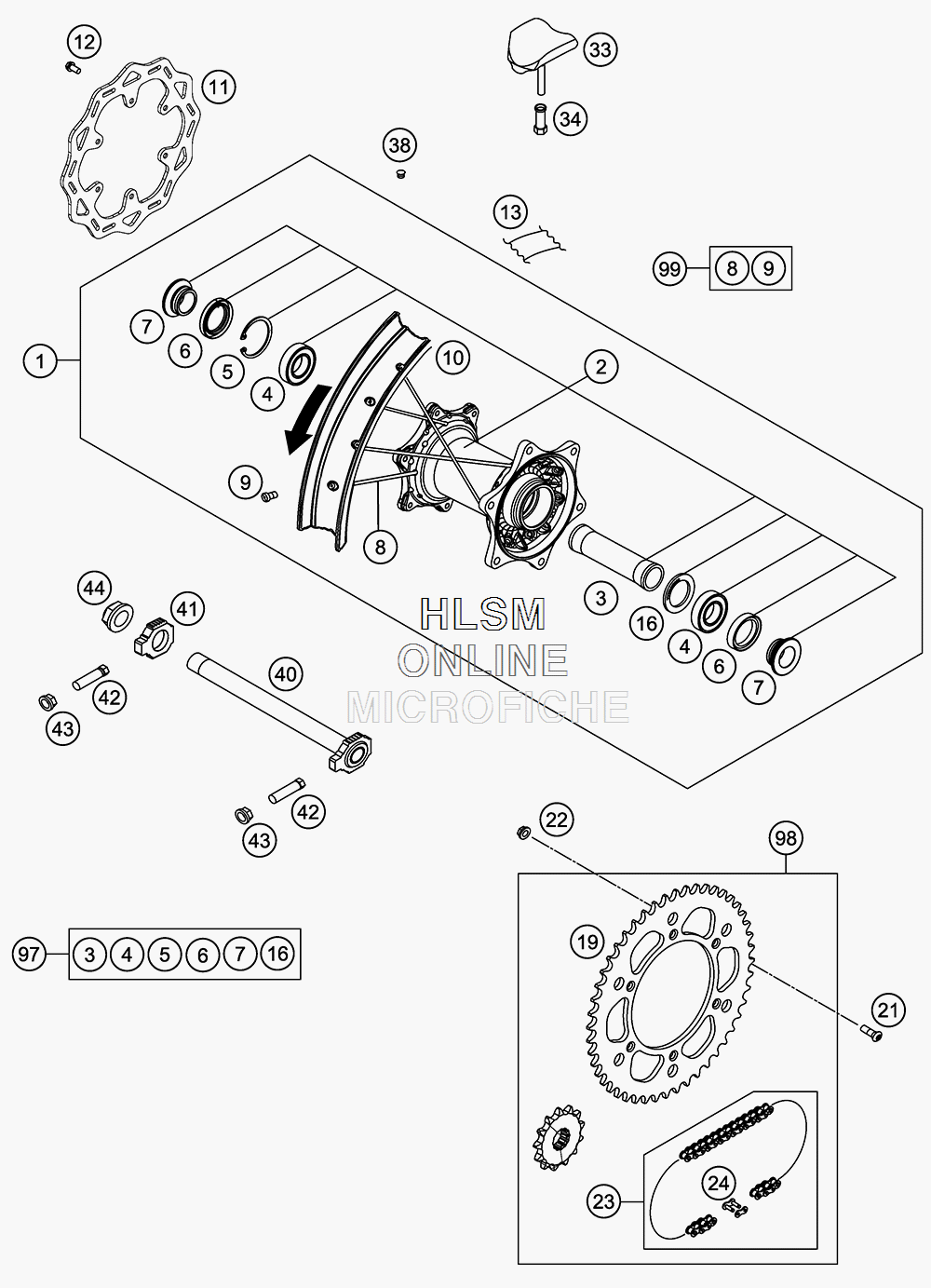

REAR WHEEL для Ktm 450 SX-F FACTORY EDITION - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    2501000104430 REAR WHEEL CPL.2,15X19" DID
    REAR WHEEL CPL.2,15X19" DID
  • 2
    25010010044 REAR HUB COMPLETE
    REAR HUB COMPLETE
  • 3
    77710011000 BEARING DISTANCE TUBE 121,5MM
    BEARING DISTANCE TUBE 121,5MM
  • 4
    0625060058 GR.BALL BEAR.6005 DDU2CG23S6NM
    GR.BALL BEAR.6005 DDU2CG23S6NM
  • 5
    0472047175 CIRCLIP DIN0472-47X1,75
    CIRCLIP DIN0472-47X1,75
  • 6
    0760324771 SHAFT SEAL RING 32X47X7 BSL
    SHAFT SEAL RING 32X47X7 BSL
  • 7
    77710016000 DISTANCE BUSHING REAR WHEEL
    DISTANCE BUSHING REAR WHEEL
  • 8
    79010071205 SPOKE M4,5X205-19"
    SPOKE M4,5X205-19"
  • 9
    77109072000 SPOKE NIPPLE M4,5 AL
    SPOKE NIPPLE M4,5 AL
  • 10
    2501007000030 RIM 2,15X19" DID
    RIM 2,15X19" DID
  • 11
    79010060000 BRAKE DISC REAR 220MM
    BRAKE DISC REAR 220MM
  • 12
    59009062013 SPECIAL SCREW M6X13 WS=8 10.9
    SPECIAL SCREW M6X13 WS=8 10.9
  • 13
    50310073200 RIM BAND 18" AND 19"
    RIM BAND 18" AND 19"
  • 16
    77710015000 DISTANCE RING
    DISTANCE RING
  • 19
    7771015104804 REAR SPROCKET 48T (ORANGE)
    REAR SPROCKET 48T (ORANGE)
  • 19
    7771015105004 REAR SPROCKET 50T (ORANGE)
    REAR SPROCKET 50T (ORANGE)
  • 19
    7771015105104 SPROCKET 51-Z
    SPROCKET 51-Z
  • 19
    7771015105204 REAR SPROCKET 52T (ORANGE)
    REAR SPROCKET 52T (ORANGE)
  • 21
    0019080266S COUNTER-SUNK SCREW ISA45 M8X26
    COUNTER-SUNK SCREW ISA45 M8X26
  • 22
    06923080003 HEXAGON NUT DIN EN1661 M8 SW13
    HEXAGON NUT DIN EN1661 M8 SW13
  • 23
    78910065118 CHAIN 520 GPXV (GOLD)
    CHAIN 520 GPXV (GOLD)
  • 23
    50310165118 CHAIN 5/8X1/4" MX
    CHAIN 5/8X1/4" MX
  • 24
    78910066000 CONNECTING LINK F. 78910065118
    CONNECTING LINK F. 78910065118
  • 24
    50310166000 CONNECTING LINK F. 50310165118
    CONNECTING LINK F. 50310165118
  • 33
    78110090000 RIM LOCK 2,15"
    RIM LOCK 2,15"
  • 34
    77110090050 NUT FOR WHEEL HOLDER
    NUT FOR WHEEL HOLDER
  • 38
    55003135000 PLUG FOR RIM
    PLUG FOR RIM
  • 40
    77710085044 WHEEL SPINDLE CPL.
    WHEEL SPINDLE CPL.
  • 41
    77710084000 CHAIN TENSIONER R/S
    CHAIN TENSIONER R/S
  • 42
    50304040100 SCREW M10X1,25X50 WS=10
    SCREW M10X1,25X50 WS=10
  • 43
    58414030000 HH COLLAR NUT M10X1,25
    HH COLLAR NUT M10X1,25
  • 44
    61010086000 COLLAR NUT M25X1,5 WS=32
    COLLAR NUT M25X1,5 WS=32
  • 97
    77710015010 REAR WHEEL REP. KIT
    REAR WHEEL REP. KIT
  • 98
    00050002075 DRIVETRAI N KIT SX 13T/48T
    DRIVETRAI N KIT SX 13T/48T
  • 99
    00050000979 SPOKE KIT REAR 19"
    SPOKE KIT REAR 19"
