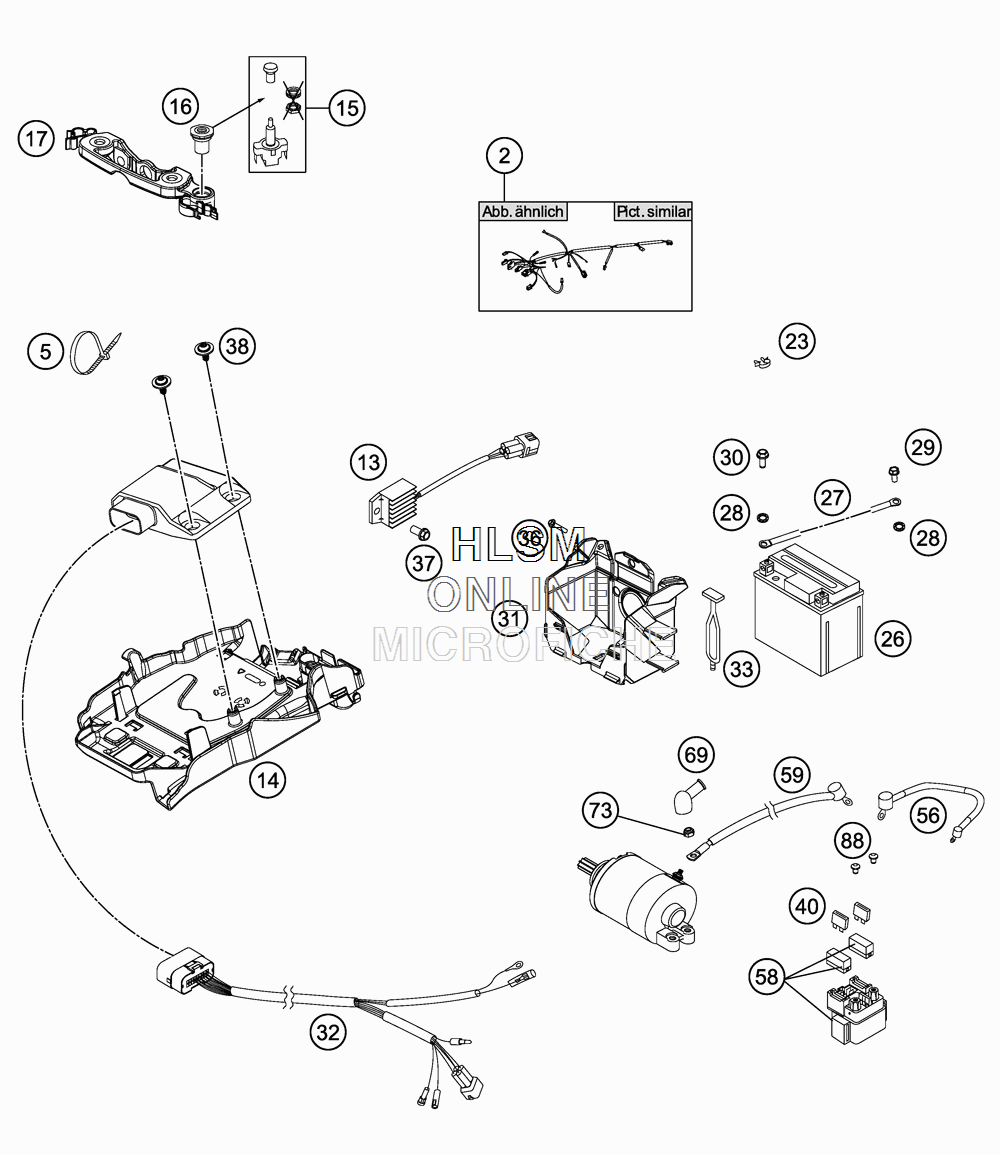

WIRING HARNESS для Ktm 200 XCW - 2016 года выпуска

  • №
    Артикул
    Название
  • 2
    54811075800 WIRING HARNESS
    WIRING HARNESS
  • 5
    44011076140 CABLE TIE 140/2,5MM (BLACK)
    CABLE TIE 140/2,5MM (BLACK)
  • 5
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 5
    44011076305 CABLE TIE 300/4,8MM BLACK
    CABLE TIE 300/4,8MM BLACK
  • 13
    80011034000 VOLTAGE REGULATOR
    VOLTAGE REGULATOR
  • 14
    77711094000 ELECTRIC BOX
    ELECTRIC BOX
  • 15
    55011599000 PULL SWITCH LOOSE
    PULL SWITCH LOOSE
  • 16
    54814060050 SPEC. NUT F. PULL SWITCH WS=17
    SPEC. NUT F. PULL SWITCH WS=17
  • 17
    77714060000 SPEEDOMETER BRACKET
    SPEEDOMETER BRACKET
  • 23
    57013072100 WIRING HOLDER 16MM
    WIRING HOLDER 16MM
  • 26
    77311053000 BATTERY 12V 3AH YTX4L-BS
    BATTERY 12V 3AH YTX4L-BS
  • 27
    58411097100 GROUND CABLE D=6MM L=140MM
    GROUND CABLE D=6MM L=140MM
  • 28
    58411098100 CONTACT WASHER M6 VSV-K6
    CONTACT WASHER M6 VSV-K6
  • 29
    0009050106 EJOT SPIRAL SCREW SF M5X10-K
    EJOT SPIRAL SCREW SF M5X10-K
  • 30
    0025050126 HH COLLAR SCREW M5X12
    HH COLLAR SCREW M5X12
  • 31
    77211055000 BATTERY BOX
    BATTERY BOX
  • 32
    54839032200 WIRING HARNESS FOR CDI 2-ST.
    WIRING HARNESS FOR CDI 2-ST.
  • 33
    50303018000 RUBBER L=145MM
    RUBBER L=145MM
  • 36
    0025060126 HH COLLAR SCREW M6X12
    HH COLLAR SCREW M6X12
  • 37
    0026060136 COLLAR SCREW M6X13 ISA30
    COLLAR SCREW M6X13 ISA30
  • 38
    0081645121 EJOT DELTA PT SCREW 45X12-Z
    EJOT DELTA PT SCREW 45X12-Z
  • 40
    58011109110 FUSE 10 A
    FUSE 10 A
  • 56
    58711086000 WIRING HARNESS BATTERY DUKE
    WIRING HARNESS BATTERY DUKE
  • 58
    58211058000 STARTER RELAY 12V
    STARTER RELAY 12V
  • 59
    55111059000 STARTERCABLE 1100MM
    STARTERCABLE 1100MM
  • 69
    58440099000 PROTECTION CAP F. STARTER ENG.
    PROTECTION CAP F. STARTER ENG.
  • 73
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 88
    0902060083 AH OVAL SCREW ISO 7380 M 6X8
    AH OVAL SCREW ISO 7380 M 6X8
