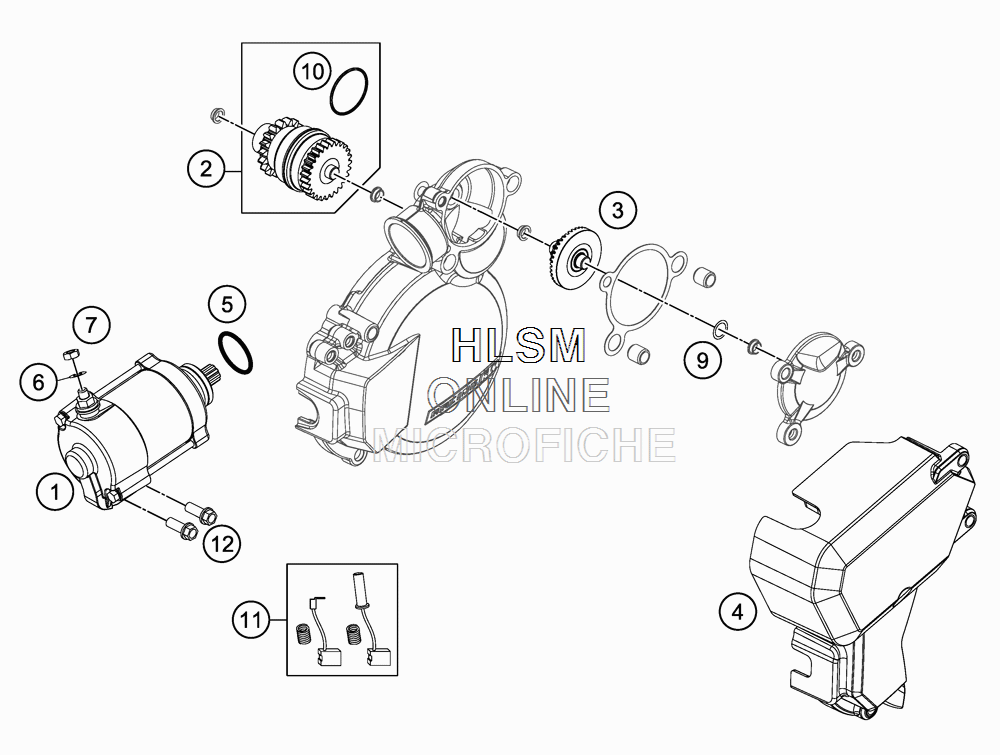

ELECTRO STARTER для Ktm 200 XCW - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    55140001100 STARTER MORIC
    STARTER MORIC
  • 2
    55140026100 BENDIX
    BENDIX
  • 3
    55140022100 CROWN WHEEL E-STARTER
    CROWN WHEEL E-STARTER
  • 4
    52440040000 STARTER DRIVE COVER CPL.
    STARTER DRIVE COVER CPL.
  • 5
    0770250030 O-RING 25,00X3,00 NBR 70
    O-RING 25,00X3,00 NBR 70
  • 6
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 7
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 9
    0988081401 THRUST WASHER 8X14X0,1
    THRUST WASHER 8X14X0,1
  • 9
    0988081402 THRUST WASHER 8X14X0,2
    THRUST WASHER 8X14X0,2
  • 9
    0988081403 THRUST WASHER 8X14X0,3
    THRUST WASHER 8X14X0,3
  • 9
    0988081405 THRUST WASHER 8X14X0,5
    THRUST WASHER 8X14X0,5
  • 10
    55140027000 BENDIX SPRING
    BENDIX SPRING
  • 11
    55140002144 BRUSH SET FOR ONLY FOR 55140001100
    BRUSH SET FOR ONLY FOR 55140001100
  • 12
    0025060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
