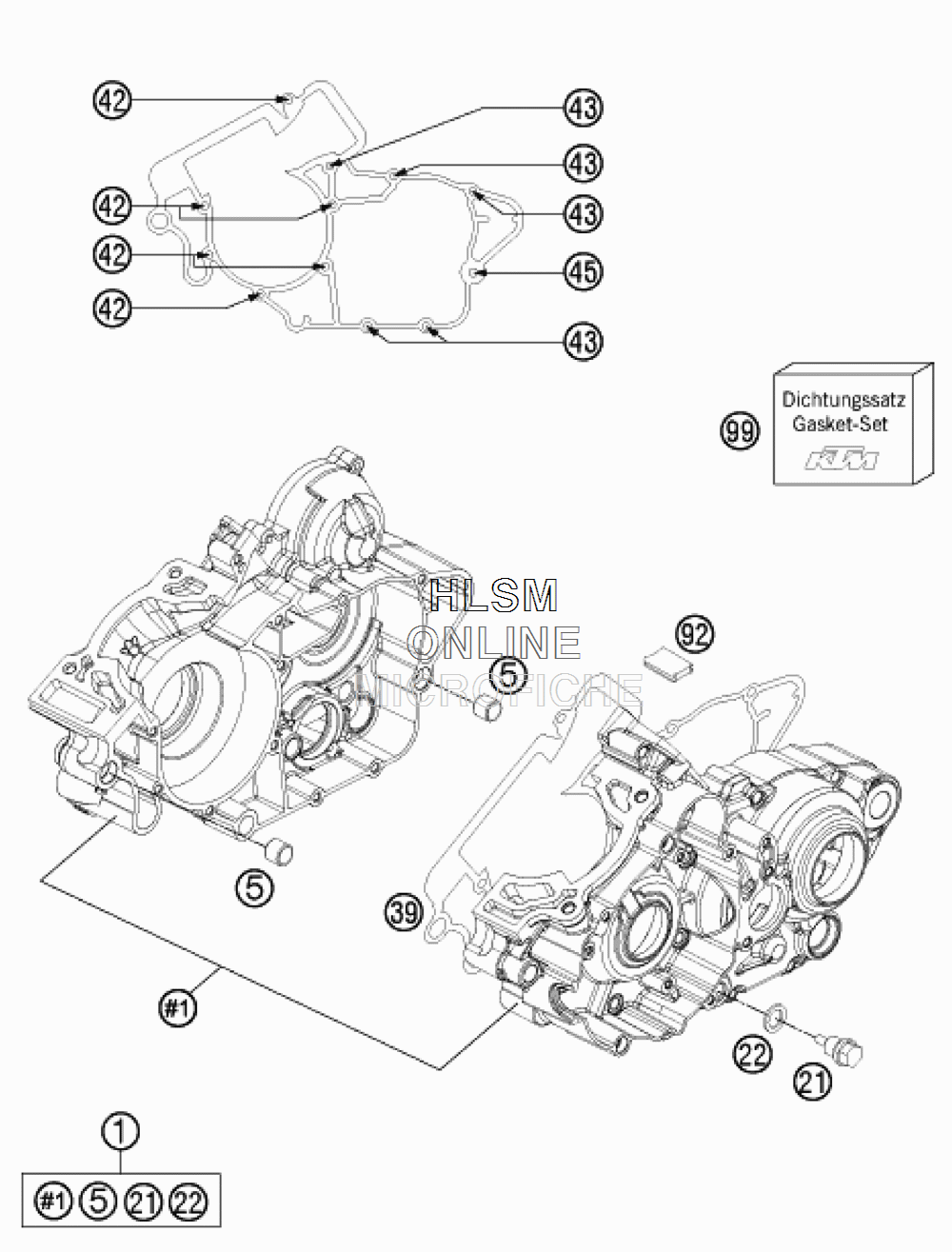

ENGINE CASE для Ktm 200 XCW - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    52430000033 ENGINE CASE CPL.
    ENGINE CASE CPL.
  • 5
    54630027000 DOWEL BUSHING 13,8X11X12
    DOWEL BUSHING 13,8X11X12
  • 21
    58030021000 OILDRAIN PLUG W.MAG. M 12X1,5
    OILDRAIN PLUG W.MAG. M 12X1,5
  • 22
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 39
    50330039000 ENGINE CASE GASKET 0,5MM
    ENGINE CASE GASKET 0,5MM
  • 42
    0025060506 HH COLLAR SCREW M6X50
    HH COLLAR SCREW M6X50
  • 43
    0025060556 HH COLLAR SCREW M6X55
    HH COLLAR SCREW M6X55
  • 45
    0025060606 HH COLLAR SCREW M6X60
    HH COLLAR SCREW M6X60
  • 92
    50330092000 OIL GUARD GROMMET 25X31
    OIL GUARD GROMMET 25X31
  • 99
    50330099201 GASKET SET
    GASKET SET
