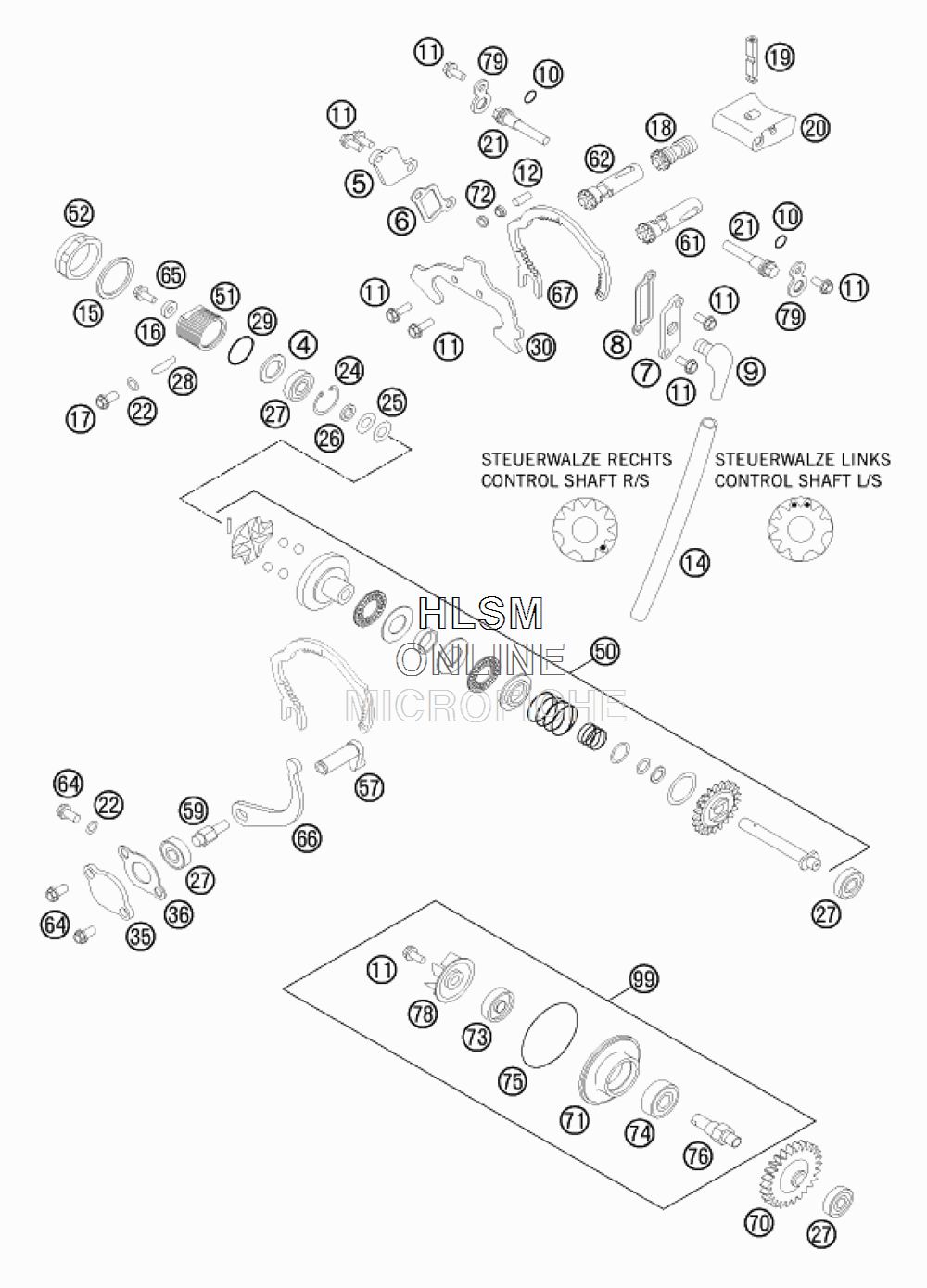

EXHAUST CONTROL для Ktm 200 XCW - 2016 года выпуска

  • №
    Артикул
    Название
  • 4
    49033031015 STOP DISK 14,2X22X1,5
    STOP DISK 14,2X22X1,5
  • 5
    50337005000 SIDE COVER R/S
    SIDE COVER R/S
  • 6
    50337006000 GASKET SIDE COVER R/S
    GASKET SIDE COVER R/S
  • 7
    50337007100 SIDE COVER LEFT M10
    SIDE COVER LEFT M10
  • 8
    50337008000 GASKET SIDE COVER L/S
    GASKET SIDE COVER L/S
  • 9
    51030022000 ANGLE PIECE 90 DEGREE M10X1
    ANGLE PIECE 90 DEGREE M10X1
  • 10
    0770008020 O-RING 8,00X2,00 NBR
    O-RING 8,00X2,00 NBR
  • 11
    0014050123 HH COLLAR SCREW M 5X12
    HH COLLAR SCREW M 5X12
  • 12
    0402051600 NEEDLE ROL. DIN5402 NRB 5X15,8
    NEEDLE ROL. DIN5402 NRB 5X15,8
  • 13
    0025050126 HH COLLAR SCREW M5X12
    HH COLLAR SCREW M5X12
  • 14
    50332095200 TUBE RUBBER 6X9 DVOH 200MM
    TUBE RUBBER 6X9 DVOH 200MM
  • 15
    0603262322 CU-SEAL RING DIN7603-26X32X2
    CU-SEAL RING DIN7603-26X32X2
  • 16
    50337050064 WASHER 5,2 X 12 X 3
    WASHER 5,2 X 12 X 3
  • 17
    0025060106 HH COLLAR SCREW M6X10
    HH COLLAR SCREW M6X10
  • 18
    52337018044 ECCENTRIC FOR CRANKBOLT
    ECCENTRIC FOR CRANKBOLT
  • 19
    52337019000 CRANK BOLT F.CONTROL FL.
    CRANK BOLT F.CONTROL FL.
  • 20
    52337020000 CONTROL FLAP
    CONTROL FLAP
  • 21
    51237021000 AXLE FOR CONTROL FLAP
    AXLE FOR CONTROL FLAP
  • 22
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 24
    0472022100 CIRCLIP DIN0472-22X1
    CIRCLIP DIN0472-22X1
  • 25
    0093821606 WASHER DIN2093-8,2X16X0,6
    WASHER DIN2093-8,2X16X0,6
  • 26
    50337050063 SPACER BUSHING 8X12X2,3
    SPACER BUSHING 8X12X2,3
  • 27
    0625006082 BALL BEARING 608 RS C3
    BALL BEARING 608 RS C3
  • 28
    00099300011 O-RINGSTRING 4MM NBR 70 PER/M
    O-RINGSTRING 4MM NBR 70 PER/M
  • 29
    0770160030 O-RING 16,00X3,00 NBR 70
    O-RING 16,00X3,00 NBR 70
  • 30
    52337030000 SHEET METAL GUIDE 3MM
    SHEET METAL GUIDE 3MM
  • 35
    50337035000 CLOSING COVER
    CLOSING COVER
  • 36
    50337035050 CLOSING COVER GASKET 1MM
    CLOSING COVER GASKET 1MM
  • 50
    52337050044 CENTRIFUGAL TIMER CPL.
    CENTRIFUGAL TIMER CPL.
  • 51
    50337050062 BUSHING HOLDER M 26X1
    BUSHING HOLDER M 26X1
  • 52
    50337050061 CLOSING NUT M 26X1 WS=30
    CLOSING NUT M 26X1 WS=30
  • 57
    50337057000 CONTROL LEVER
    CONTROL LEVER
  • 59
    50337059000 CONTROL SHAFT M 6 WS=10
    CONTROL SHAFT M 6 WS=10
  • 61
    52337061144 CONTROL SHAFT CPL.L/S
    CONTROL SHAFT CPL.L/S
  • 62
    52337062144 CONTROL SHAFT CPL.R/S
    CONTROL SHAFT CPL.R/S
  • 64
    0025060126 HH COLLAR SCREW M6X12
    HH COLLAR SCREW M6X12
  • 65
    0025050126 HH COLLAR SCREW M5X12
    HH COLLAR SCREW M5X12
  • 66
    50337066000 LEVER F. CONTROL SEGMENT
    LEVER F. CONTROL SEGMENT
  • 67
    52337067000 CONTROL SHAFT SEGMENT
    CONTROL SHAFT SEGMENT
  • 70
    50335054026 DRIVE WHEEL 26-T
    DRIVE WHEEL 26-T
  • 71
    50335056000 BUSHING SUPPORT WATER PUMP
    BUSHING SUPPORT WATER PUMP
  • 72
    50337072000 ROLLER GUIDE 5X6,1X8X4
    ROLLER GUIDE 5X6,1X8X4
  • 73
    0760082472 SHAFT SEAL RING 8X24X7 A DUO
    SHAFT SEAL RING 8X24X7 A DUO
  • 74
    0625060001 BALL BEARING 6000/C3
    BALL BEARING 6000/C3
  • 75
    0770049025 O-RING 49,00X2,50 NBR
    O-RING 49,00X2,50 NBR
  • 76
    50335054150 WATER PUMP SHAFT
    WATER PUMP SHAFT
  • 78
    54835005000 WATER PUMP WHEEL
    WATER PUMP WHEEL
  • 79
    50337079000 LOCK METAL SHEET 2MM
    LOCK METAL SHEET 2MM
  • 99
    54835055115 WATER PUMP REP. KIT
    WATER PUMP REP. KIT
