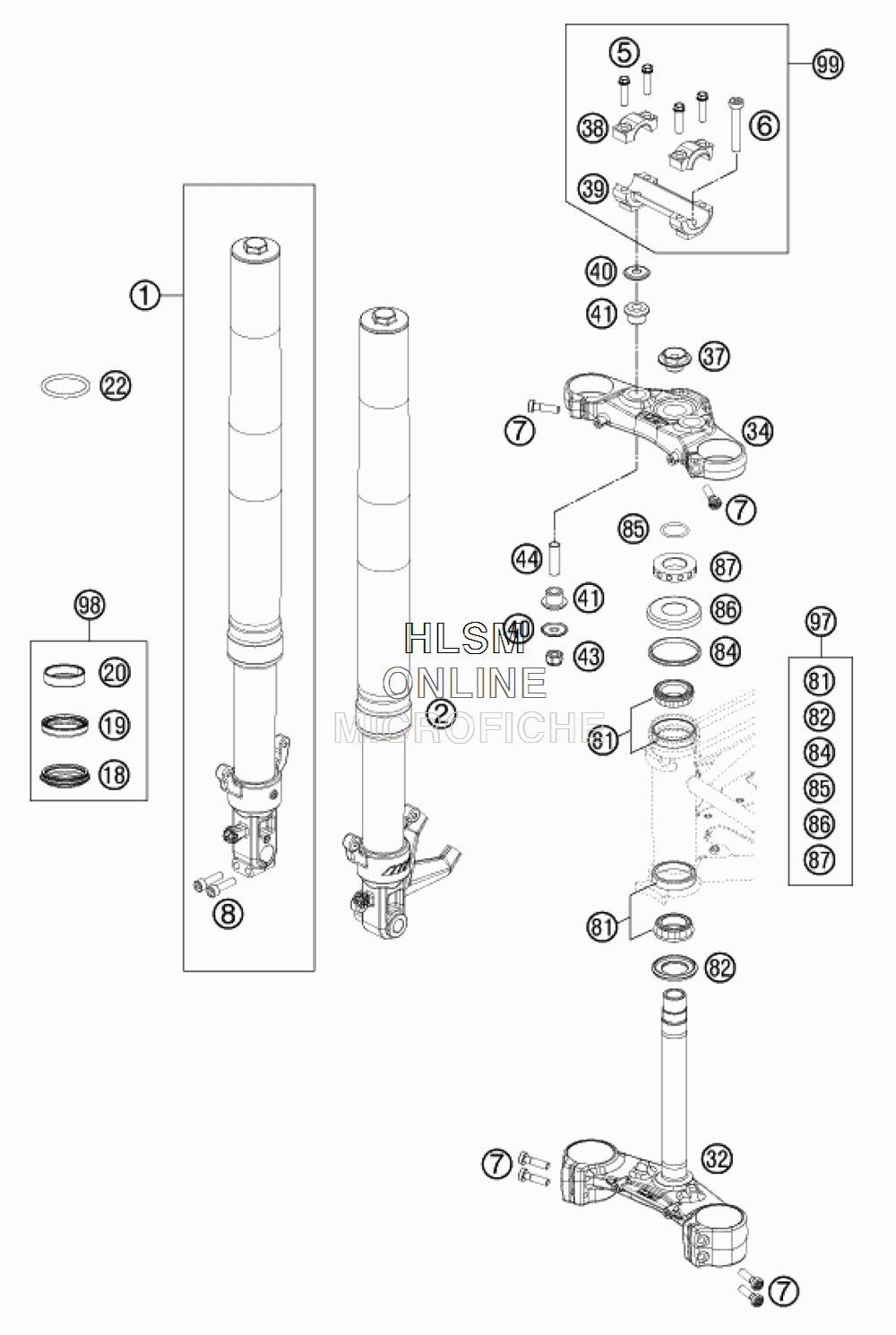

FRONT FORK TRIPLE CLAMP для Ktm 690 DUKE ABS WHITE - 2015 года выпуска`
-
№АртикулНазвание
-
105187L19R01 FORK WP 690 DUKE R/SFORK WP 690 DUKE R/S
-
205187L19L01 FORK WP 690 DUKE L/SFORK WP 690 DUKE L/S
-
50025080306 HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
60012100603 AH SCREW DIN6912-M10X60AH SCREW DIN6912-M10X60
-
70035080306 AH-COLLAR SCREW M8X30 ISA45AH-COLLAR SCREW M8X30 ISA45
-
8J020080273 AH SCREW M8X27AH SCREW M8X27
-
1843570624 DUST CAP 43X53,4X5, 8DUST CAP 43X53,4X5, 8
-
1943570623 OIL SEAL RING 43X52,9X11, 4OIL SEAL RING 43X52,9X11, 4
-
2043570618 GUIDE BUSHING 43X47X12GUIDE BUSHING 43X47X12
-
2240140024 O-RING NBR 43X2O-RING NBR 43X2
-
327600103203201S BOT .FORK PLA TE CPL.BOT .FORK PLA TE CPL.
-
347600103403201S TOP TRIPLE CLAMPTOP TRIPLE CLAMP
-
3754801036000 STEER.HEAD SCREW M20X1,5 WS=27STEER.HEAD SCREW M20X1,5 WS=27
-
385900103830001S HANDLEBAR CLAMP 28MMHANDLEBAR CLAMP 28MM
-
395900103920001S HANDLEBAR SUPPORT 28MMHANDLEBAR SUPPORT 28MM
-
4056401042000 WASHER 10,5X32X2WASHER 10,5X32X2
-
4156401040000 RUBBER BUSHINGRUBBER BUSHING
-
430982100003 SELF LOCK.NUT DIN0982-M10 HIGHSELF LOCK.NUT DIN0982-M10 HIGH
-
4461001041000 SPACER TUBE 10,2X12X38SPACER TUBE 10,2X12X38
-
8154201081100 T APERED ROLLER BEARING CPL.T APERED ROLLER BEARING CPL.
-
8277701084000 O-RING SUPPORT W . SEALING LIPO-RING SUPPORT W . SEALING LIP
-
8454601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
850770275025 O-RING 27,5X2,5 NBRO-RING 27,5X2,5 NBR
-
8678101086000 STEERING HEAD COVERSTEERING HEAD COVER
-
8757301036100 STEER.HEAD NUTSTEER.HEAD NUT
-
9776001080044 STEARING HEAD REP . KITSTEARING HEAD REP . KIT
-
9890101000010 REP . KIT FORK KPL.REP . KIT FORK KPL.
-
9900050000922 HANDLEBAR SUPPORT KITHANDLEBAR SUPPORT KIT
