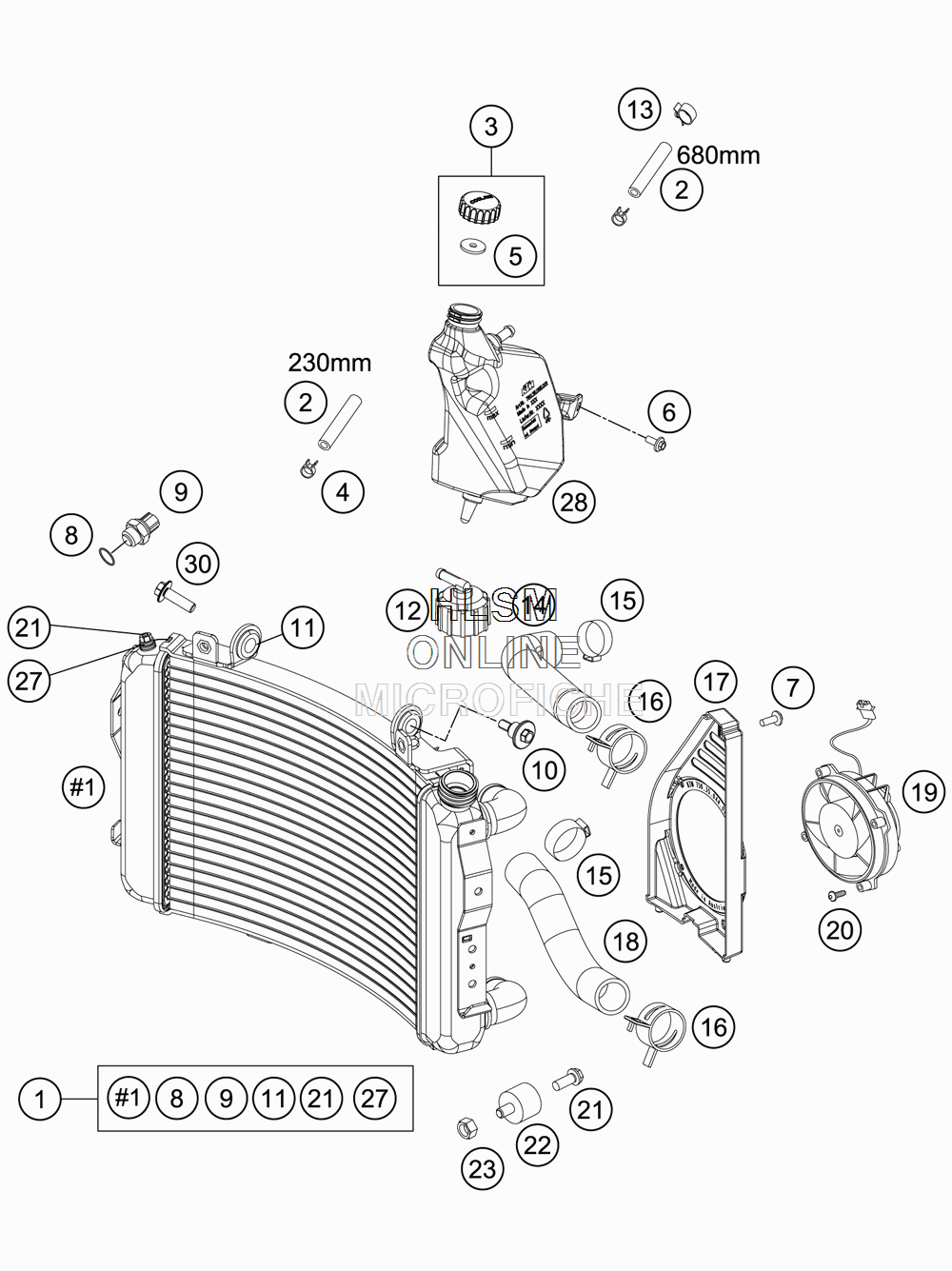

COOLING SYSTEM для Ktm 690 DUKE ABS WHITE - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    76035010000 RADIATOR VW2053
    RADIATOR VW2053
  • 2
    60035067001 HOSE 6X10 EPDM
    HOSE 6X10 EPDM
  • 3
    60335066044 PLUG F . EXPANSION TANK
    PLUG F . EXPANSION TANK
  • 4
    58007117000 YDNAC-C LAMP 10107 10MM
    YDNAC-C LAMP 10107 10MM
  • 5
    60335066010 RUBBER GASKET
    RUBBER GASKET
  • 6
    0025050126 HH COLLAR SCREW M5X12 TX30
    HH COLLAR SCREW M5X12 TX30
  • 7
    0024060106 HH COLLAR SCREW M6X10 TX30
    HH COLLAR SCREW M6X10 TX30
  • 8
    0770017015 O-RING 17X1,5 NB75
    O-RING 17X1,5 NB75
  • 9
    60035045000 THERMOSWI TCH LC8 102DG '03
    THERMOSWI TCH LC8 102DG '03
  • 10
    60035001000 SPECIAL SCREW M6X21 WS=8
    SPECIAL SCREW M6X21 WS=8
  • 11
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 12
    62535009000 RADIATOR CAP 1,4 BAR
    RADIATOR CAP 1,4 BAR
  • 13
    57013072100 WIRING HOLDER 16MM
    WIRING HOLDER 16MM
  • 14
    75035027000 RADIATOR HOSE
    RADIATOR HOSE
  • 15
    00050325706 VARIABLE ONE-EAR CLAMP 32,5MM
    VARIABLE ONE-EAR CLAMP 32,5MM
  • 16
    00050325706 VARIABLE ONE-EAR CLAMP 32,5MM
    VARIABLE ONE-EAR CLAMP 32,5MM
  • 17
    75035044000 FAN COWL
    FAN COWL
  • 18
    75035026000 RADIATOR HOSE
    RADIATOR HOSE
  • 19
    58435041000 F AN CPL. 12V
    F AN CPL. 12V
  • 20
    0081050161 EJOT PT SCREW K50X16 1451
    EJOT PT SCREW K50X16 1451
  • 21
    0025060106 HH COLLAR SCREW M6X10 TX30
    HH COLLAR SCREW M6X10 TX30
  • 22
    43205062100 RUBBER GROMMET 20X15-M6X10 (1)
    RUBBER GROMMET 20X15-M6X10 (1)
  • 23
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 27
    60035048000 ALU-GASKET 6X10X1.5
    ALU-GASKET 6X10X1.5
  • 28
    76035065001 EXP ANSION TANK
    EXP ANSION TANK
  • 30
    0024060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
