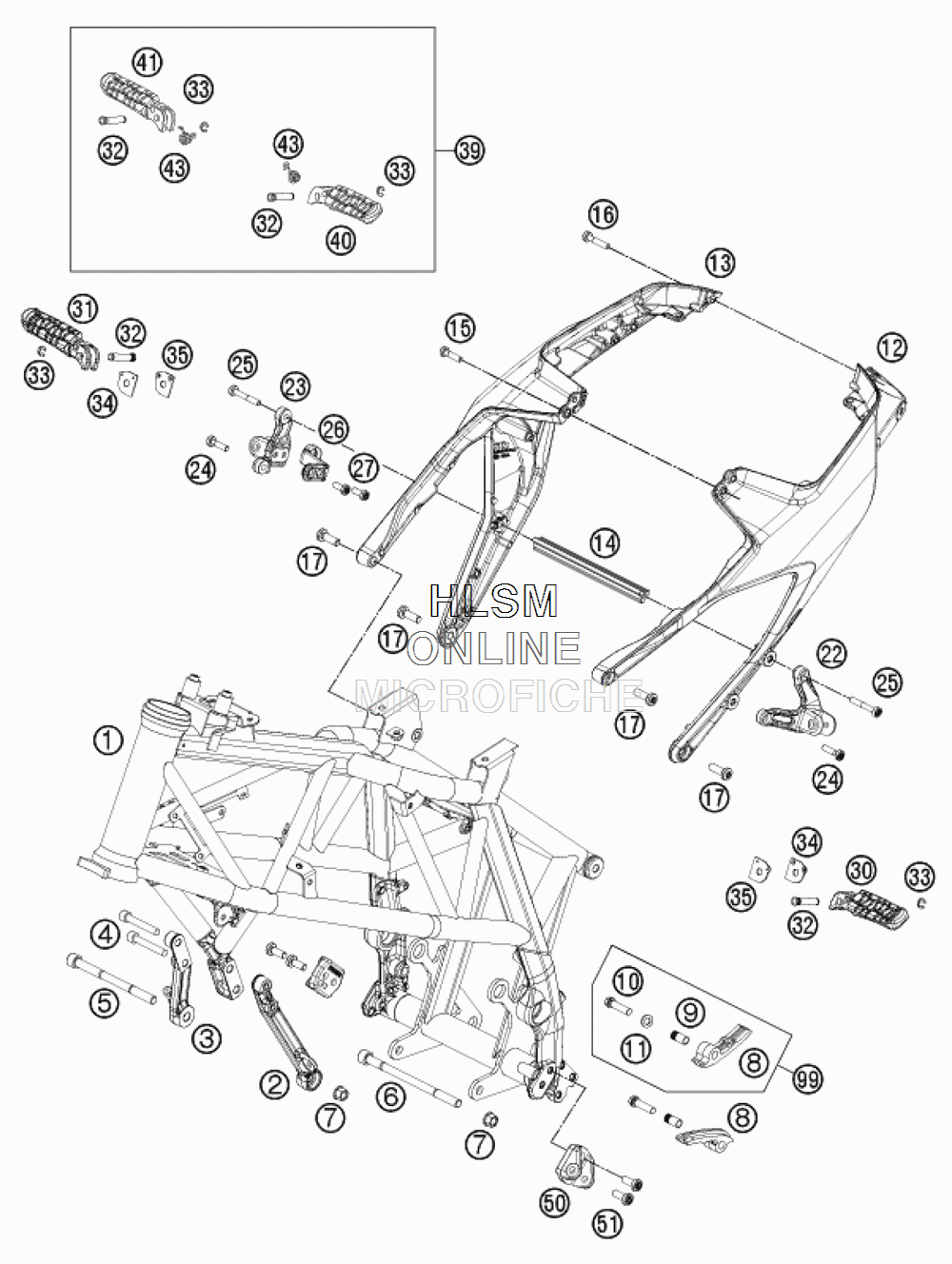

FRAME для Ktm 690 DUKE ABS WHITE - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    7600300100004 FRAME "760LA0" ORANGE
    FRAME "760LA0" ORANGE
  • 2
    7500300104901 CONNECT ION BRACKET ENG. L/S
    CONNECT ION BRACKET ENG. L/S
  • 3
    7500310104901 CONNECT ION BRACKET ENG. R/S
    CONNECT ION BRACKET ENG. R/S
  • 4
    0145790805062 CYL. SCREW DIN14579 M8X50 SS
    CYL. SCREW DIN14579 M8X50 SS
  • 5
    75603015000 SPECIAL SCREW M10X129 HEX8
    SPECIAL SCREW M10X129 HEX8
  • 6
    75003014000 SPECIAL SCREW M10X152 ISK8
    SPECIAL SCREW M10X152 ISK8
  • 7
    54630044000 COLLAR NUT M10 WS=13
    COLLAR NUT M10 WS=13
  • 8
    54804067000 CHAIN SLIDING PIECE
    CHAIN SLIDING PIECE
  • 9
    51103053051 BUSHING 8,2X10X20
    BUSHING 8,2X10X20
  • 10
    0025080306S HH COLLAR SCREW M8X30 TX40
    HH COLLAR SCREW M8X30 TX40
  • 11
    0125080003 WASHER DIN0125-A 8,4
    WASHER DIN0125-A 8,4
  • 12
    7600300200128 TAILBOOM L/S WHITE
    TAILBOOM L/S WHITE
  • 13
    7600300200228 TAILBOOM R/S WHITE
    TAILBOOM R/S WHITE
  • 14
    76003002010 BRACE SUBFRAME
    BRACE SUBFRAME
  • 15
    0035080256 AH-COLLAR SCREW M8X25 ISA45
    AH-COLLAR SCREW M8X25 ISA45
  • 16
    0035080406 AH-COLLAR SCREW M8X40 ISA45
    AH-COLLAR SCREW M8X40 ISA45
  • 17
    0035100309S AH-COLLAR SCREW M10X30 ISA45
    AH-COLLAR SCREW M10X30 ISA45
  • 22
    7600304800001S FOOTREST BRACKET REAR L/S
    FOOTREST BRACKET REAR L/S
  • 23
    7600304900001S FOOTREST BRACKET REAR R/S
    FOOTREST BRACKET REAR R/S
  • 24
    0035080306S AH-COLLAR SCREW M8X30 ISA45
    AH-COLLAR SCREW M8X30 ISA45
  • 25
    0035080506S AH-COLLAR SCREW M8X50 ISA45
    AH-COLLAR SCREW M8X50 ISA45
  • 26
    7600508400001S BRACKET F . SILENCER
    BRACKET F . SILENCER
  • 27
    0035080206S AH-COLLAR SCREW M8X20 ISA45
    AH-COLLAR SCREW M8X20 ISA45
  • 30
    60003050000 FOOTREST CPL. L/S REAR
    FOOTREST CPL. L/S REAR
  • 31
    60003051000 FOOTREST CPL. R/S REAR
    FOOTREST CPL. R/S REAR
  • 32
    60003044000 BOL T FOR FOOTREST REAR
    BOL T FOR FOOTREST REAR
  • 33
    0799060003 TAB WASHER DIN6799-RS 6,0
    TAB WASHER DIN6799-RS 6,0
  • 34
    60003052000 ENGAGE P ANEL FOOTREST R/S
    ENGAGE P ANEL FOOTREST R/S
  • 35
    60003152000 ENGAGE P ANEL FOOTREST L/S
    ENGAGE P ANEL FOOTREST L/S
  • 39
    76003040033 FOOTRESTS CPL.
    FOOTRESTS CPL.
  • 40
    61003050000 FOOTREST FRONT L/S CPL.
    FOOTREST FRONT L/S CPL.
  • 41
    61003051000 FOOTREST FRONT R/S CPL.
    FOOTREST FRONT R/S CPL.
  • 43
    76003042000 RETURN SPRING FOOTREST
    RETURN SPRING FOOTREST
  • 50
    76003101095 FOOTREST SUPPOR T
    FOOTREST SUPPOR T
  • 51
    0035080206S AH-COLLAR SCREW M8X20 ISA45
    AH-COLLAR SCREW M8X20 ISA45
  • 99
    54804067010 CHAIN SLIDING KIT UPPER CPL.
    CHAIN SLIDING KIT UPPER CPL.
