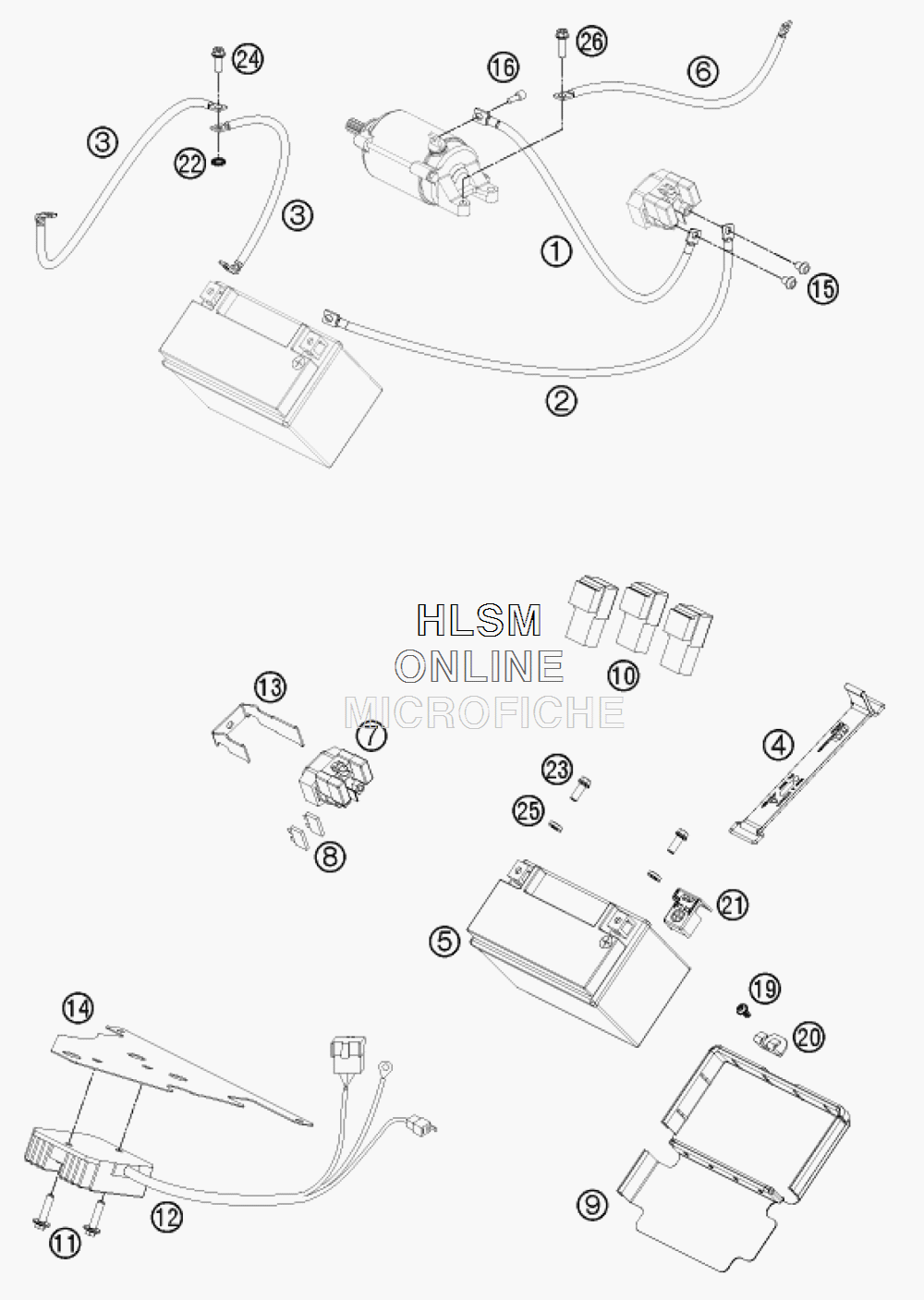

BATTERY для Ktm 690 DUKE ABS WHITE - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    76011059000 STARTER CABLE L=730 MM
    STARTER CABLE L=730 MM
  • 2
    76011059050 BATTERY CABLE L=430 MM
    BATTERY CABLE L=430 MM
  • 3
    60011097000 GROUND CABLE L=470MM
    GROUND CABLE L=470MM
  • 4
    76011056000 RUBBER HOLDER BATTERY
    RUBBER HOLDER BATTERY
  • 5
    76011053100 BATTERY 12V/8AH
    BATTERY 12V/8AH
  • 6
    61011097000 GROUND CABLE L=450MM
    GROUND CABLE L=450MM
  • 7
    76211058000 STARTER RELAY
    STARTER RELAY
  • 8
    58011109130 FUSE 30 A
    FUSE 30 A
  • 9
    76011054050 BATTERY -BASE
    BATTERY -BASE
  • 10
    61111057000 RELAY CM1A-R-12V -H80
    RELAY CM1A-R-12V -H80
  • 11
    0025060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
  • 12
    60011034100 VOLTAGE REGULATOR
    VOLTAGE REGULATOR
  • 13
    76011058050 BRACKET STARTER RELAY
    BRACKET STARTER RELAY
  • 14
    76003087000 SPLASH GUARD
    SPLASH GUARD
  • 15
    0902060083 AH OVAL SCREW ISO 7380 M 6X8
    AH OVAL SCREW ISO 7380 M 6X8
  • 16
    0912050083 AH SCREW DIN 912 M 5X8
    AH SCREW DIN 912 M 5X8
  • 19
    0081050121 SCREW FOR PLASTIC K50X12 T20
    SCREW FOR PLASTIC K50X12 T20
  • 20
    76011055000 RETAINING PLATE BATTERY
    RETAINING PLATE BATTERY
  • 21
    62111059060 COVER POSITIVE POLE
    COVER POSITIVE POLE
  • 22
    58411098100 CONT ACT WASHER M6 VSV -K6
    CONT ACT WASHER M6 VSV -K6
  • 23
    0025060166 HH COLLAR SCREW M6X16 TX30
    HH COLLAR SCREW M6X16 TX30
  • 24
    0025060126 HH COLLAR SCREW M6X12 TX30
    HH COLLAR SCREW M6X12 TX30
  • 25
    12011016000 WASHER 6 X 12 X 3
    WASHER 6 X 12 X 3
  • 26
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
