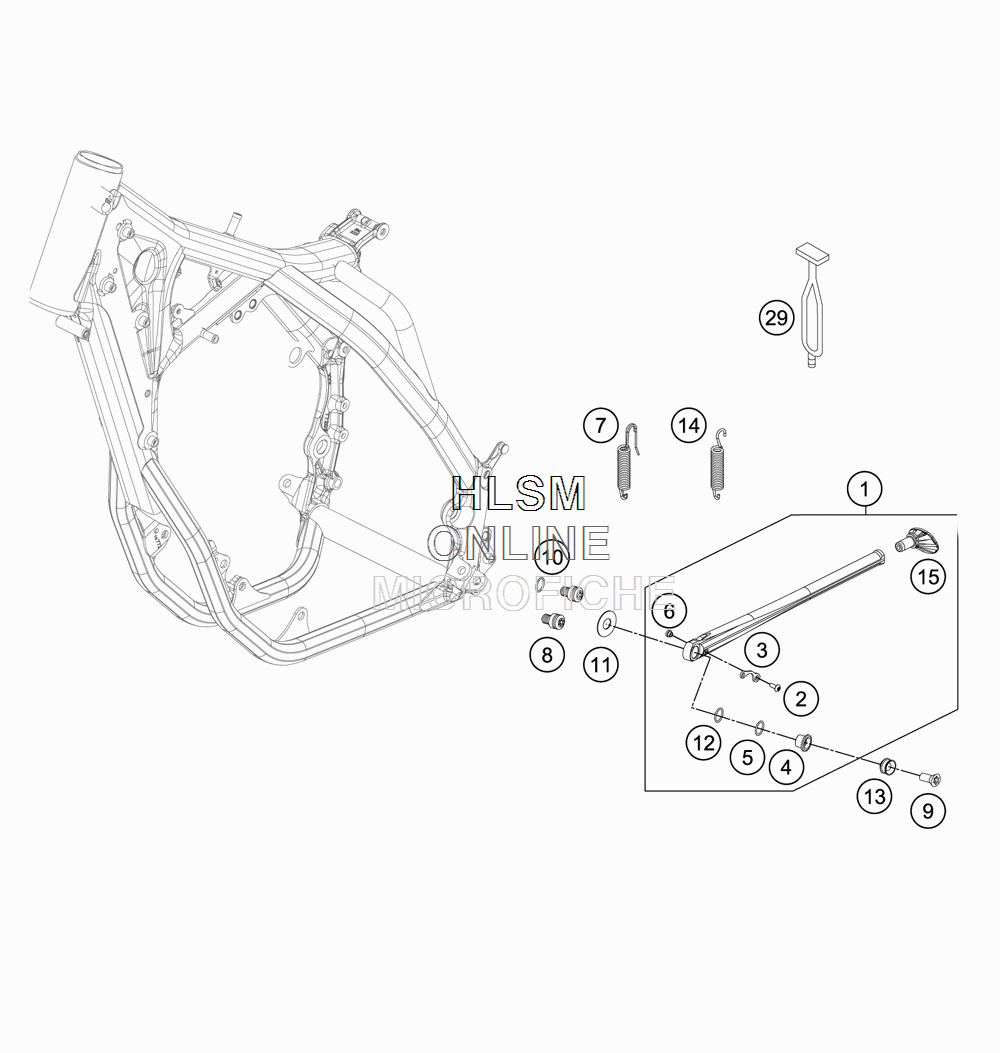

SIDE / CENTER STAND для Ktm 250 XCFW - 2015 года выпуска
-
№АртикулНазвание
-
178003023044 SIDE STAND CPL.SIDE STAND CPL.
-
258605083014 SCREW M5X14 TORX 25SCREW M5X14 TORX 25
-
378003023090 SPRING BRACKET F . SIDE ST .SPRING BRACKET F . SIDE ST .
-
478003023080 SIDE STAND BUSHINGSIDE STAND BUSHING
-
50770180020 O-RING 18,00X2,00 NBR 70O-RING 18,00X2,00 NBR 70
-
678003023070 SPACER BUSH. SPRING BRACKETSPACER BUSH. SPRING BRACKET
-
781203024000 SIDE STAND SPRING EYE MOVEABLESIDE STAND SPRING EYE MOVEABLE
-
878003023182 SIDE STAND STOP SCREW M10X12SIDE STAND STOP SCREW M10X12
-
90019080266S COUNTER -SUNK SCREW ISA45 M8X26 ONLY FOR 78003023081COUNTER -SUNK SCREW ISA45 M8X26 ONLY FOR 78003023081
-
90019080206S FLAT HEAD SCREW M. ISA45 M8X20FLAT HEAD SCREW M. ISA45 M8X20
-
100770120020 O-RING 12,00X2,00 NBR 70O-RING 12,00X2,00 NBR 70
-
1178003023083 WASHER F . SIDE ST AND 12,2X29,5WASHER F . SIDE ST AND 12,2X29,5
-
120770125015 O-RING 12,5X1,5 NBRO-RING 12,5X1,5 NBR
-
1378003023081 SIDE STAND BUSHINGSIDE STAND BUSHING
-
1478003024100 SIDE STAND SPRINGSIDE STAND SPRING
-
1578003023155 STAND BASESTAND BASE
-
2950303018000 RUBBER L=145MMRUBBER L=145MM
