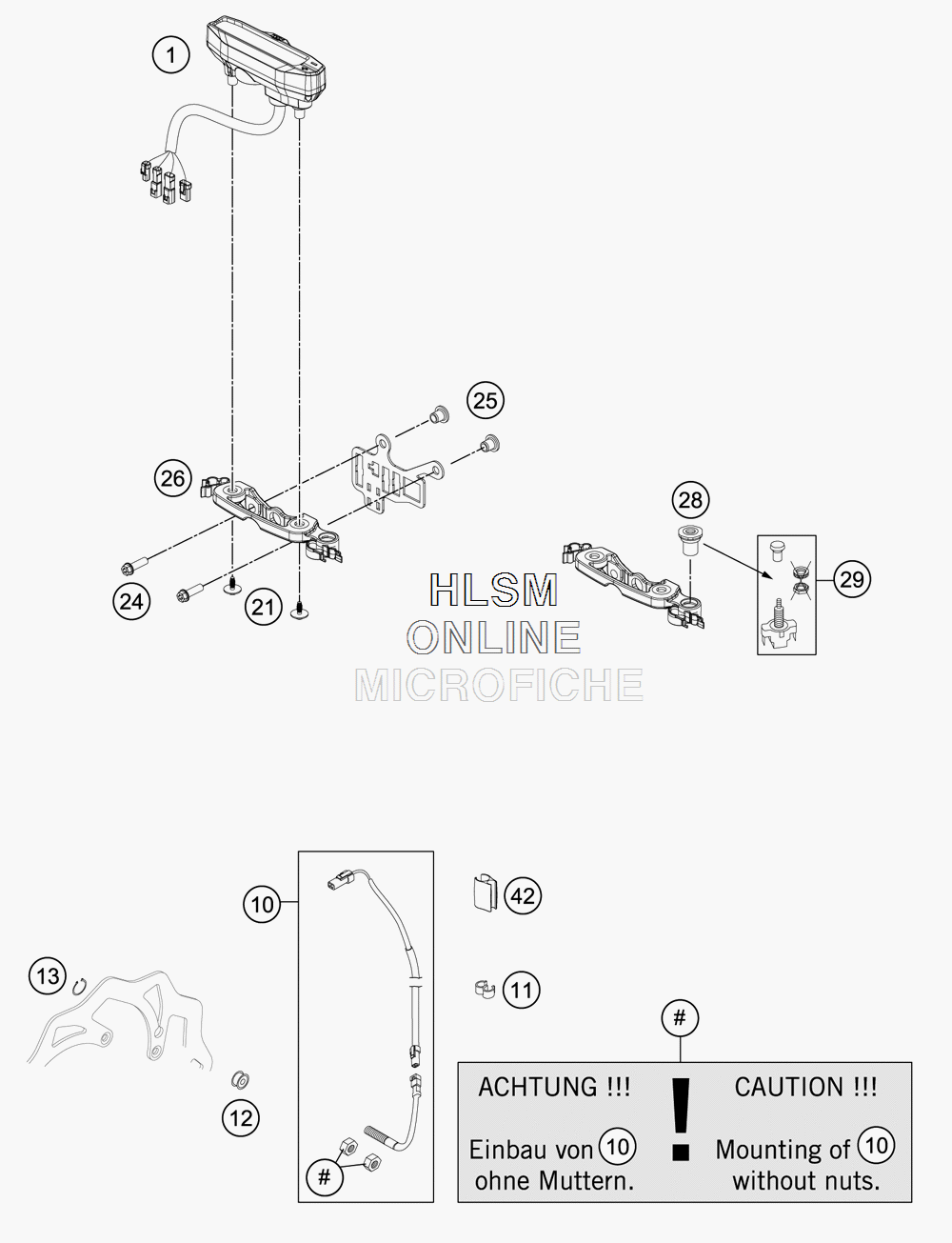

INSTRUMENTS LOCK SYSTEM для Ktm 250 XCFW - 2015 года выпуска
-
№АртикулНазвание
-
177714069200 SPEEDOMETER REPROGRAMMABLE: KM/H - MPHSPEEDOMETER REPROGRAMMABLE: KM/H - MPH
-
1054814068100 CABLE FOR DIGITAL SPEEDOM.CABLE FOR DIGITAL SPEEDOM.
-
1160111094000 CLAMP 5/7 MMCLAMP 5/7 MM
-
1254814069050 MAGNET FOR DIGITAL SPEEDOM.MAGNET FOR DIGITAL SPEEDOM.
-
130471009104 CIRCLIP DIN0471- 9X1 INOXCIRCLIP DIN0471- 9X1 INOX
-
210081645121 EJOT DELTA PT SCREW 45X12-ZEJOT DELTA PT SCREW 45X12-Z
-
240024060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
2559030060050 BUSHING F . SPROCKET COVER RAC.BUSHING F . SPROCKET COVER RAC.
-
2677714060000 SPEEDOMETER BRACKET EXC/XCWSPEEDOMETER BRACKET EXC/XCW
-
2854814060050 SPEC. NUT F . PULL SWITCH WS=17SPEC. NUT F . PULL SWITCH WS=17
-
2955011599000 PULL SWITCH LOOSEPULL SWITCH LOOSE
-
4254813026000 CABLE SUPPORT 10/6MMCABLE SUPPORT 10/6MM
