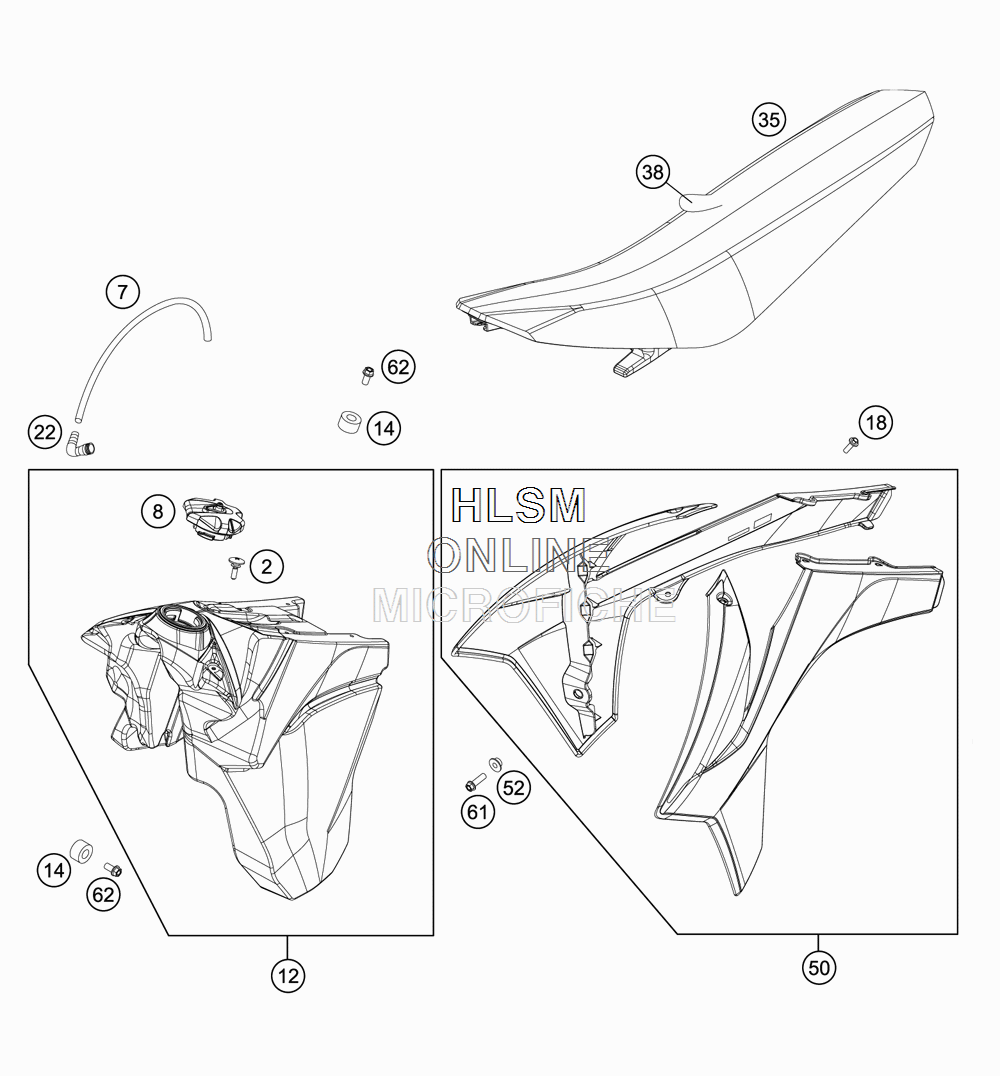

TANK - SEAT - COVER для Ktm 250 XCFW - 2015 года выпуска
-
№АртикулНазвание
-
277407011000 SCREW SEAT FIXING M5SCREW SEAT FIXING M5
-
778007000270 PVC-HOSE 5,6X10X270M MPVC-HOSE 5,6X10X270M M
-
878107008044X4 TANK PLUG CPL.TANK PLUG CPL.
-
127810701314499 FUEL TANK CPL. 8,5L EFIFUEL TANK CPL. 8,5L EFI
-
1450307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
180014050123 HH COLLAR SCREW M 5X12 WS=6HH COLLAR SCREW M 5X12 WS=6
-
2251030022000 ANGLE PIECE 90 DEGREE M10X1ANGLE PIECE 90 DEGREE M10X1
-
3577207040200 SEATSEAT
-
3877207040050 SEAT COVERSEAT COVER
-
507770805410028B SPOILER KIT W/DECALSPOILER KIT W/DECAL
-
5250308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
610025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
620026060136 COLLAR SCREW M6X13 ISA30COLLAR SCREW M6X13 ISA30
