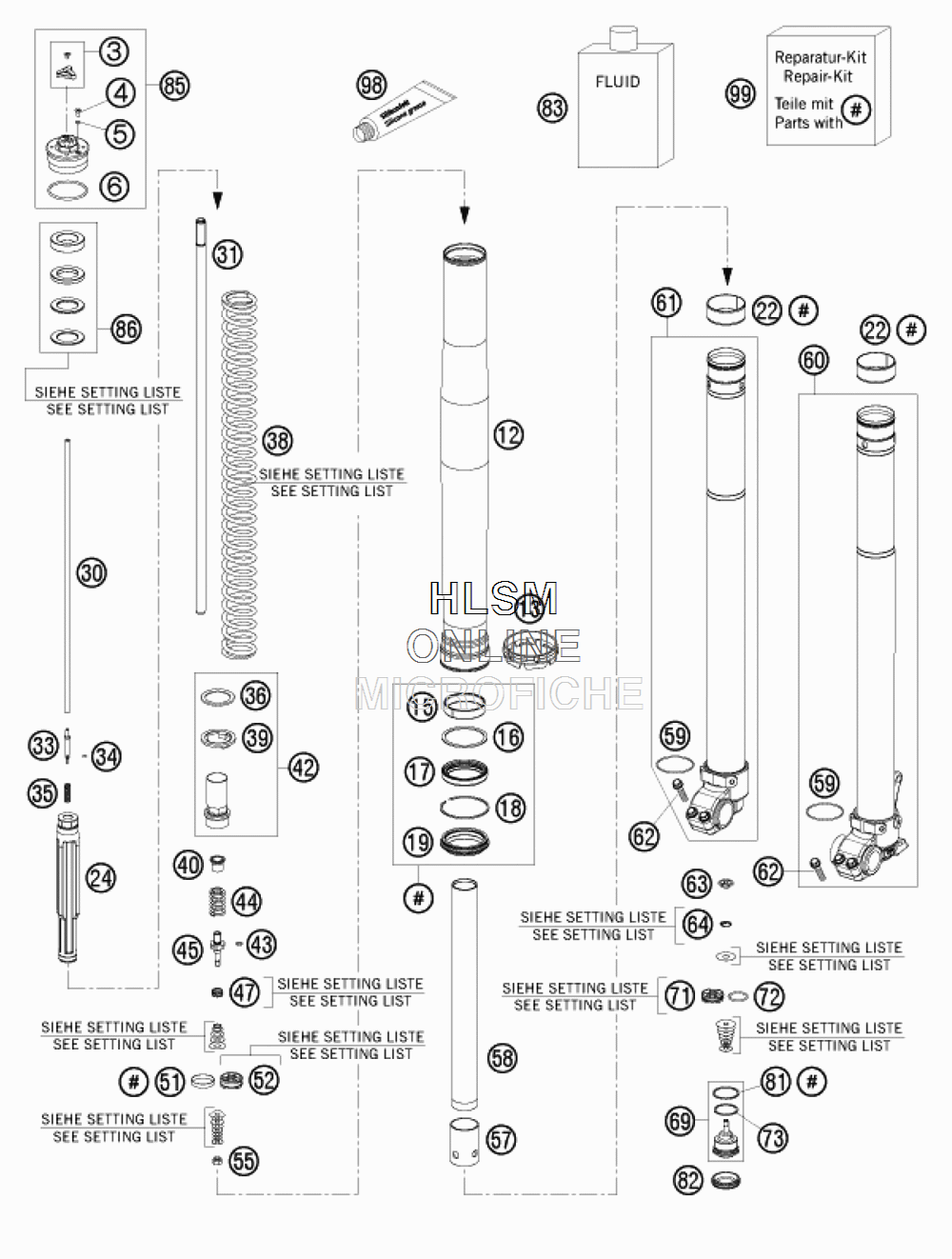

FRONT FORK DISASSEMBLED для Ktm 250 XCFW - 2015 года выпуска

№

Артикул

Название
3

48600812S ADJUSTING KNOB + SCREW

ADJUSTING KNOB + SCREW

900 ₽
4

48600481 VENT SCREW M4X8

VENT SCREW M4X8

410 ₽
5

48600046 O-RING NBR 3X1,5

O-RING NBR 3X1,5

220 ₽
6

46810340 O-RING NBR 45X2

O-RING NBR 45X2

220 ₽
12

48600736 OUTER TUBE L577 D54/60MM 2L

OUTER TUBE L577 D54/60MM 2L

121 280 ₽
13

48600698 FORK PROTECTION RING 08

FORK PROTECTION RING 08

2 140 ₽
15

48601009 GUIDING BUSH 48X52X12 R11

GUIDING BUSH 48X52X12 R11

3 240 ₽
16

48600013 SUPPORT RING 50 X 57,6 X 1,5

SUPPORT RING 50 X 57,6 X 1,5

610 ₽
17

48600969 OIL SEAL RING D48 SKF

OIL SEAL RING D48 SKF

5 140 ₽
18

48600070 LOCK WASHER SB58

LOCK WASHER SB58

350 ₽
19

48600968 DUST SEAL DL D48 SKF

DUST SEAL DL D48 SKF

5 140 ₽
22

48601008 GUIDING BUSH 47X49X20 R11

GUIDING BUSH 47X49X20 R11

3 240 ₽
24

48600557S HYDR.STOP L=200 D=31,9 CPL.

HYDR.STOP L=200 D=31,9 CPL.

10 530 ₽
30

48600559 ADJUSTING TUBE L=520

ADJUSTING TUBE L=520

3 440 ₽
31

48600568 PISTON ROD D=12 L=554 ALU

PISTON ROD D=12 L=554 ALU

22 940 ₽
33

48600277 ADJUSTER NEEDLE

ADJUSTER NEEDLE

1 240 ₽
34

48600298 O-RING 2X1,5 NBR

O-RING 2X1,5 NBR

60 ₽
35

48600444 REBOUND SPRING C=4N/MM

REBOUND SPRING C=4N/MM

620 ₽
36

48600113 WASHER 32X42X2,5

WASHER 32X42X2,5

3 010 ₽
38

91410012S SPRING 3,8N/MM SET D=4,9MM

SPRING 3,8N/MM SET D=4,9MM

39 430 ₽
38

91410013S SPRING 4,0N/MM SET D=5,0MM

SPRING 4,0N/MM SET D=5,0MM

39 430 ₽
38

91410014S SPRING 4,2N/MM SET D=5,0MM

SPRING 4,2N/MM SET D=5,0MM

39 430 ₽
38

91410015S SPRING 4,4N/MM SET D=5,1MM

SPRING 4,4N/MM SET D=5,1MM

39 430 ₽
38

91410016S SPRING 4,6N/MM SET

SPRING 4,6N/MM SET

39 430 ₽
39

48600021 INTERM. RING 26,2 X 43 X 3

INTERM. RING 26,2 X 43 X 3

4 510 ₽
40

48600525 GUIDING BUSH REBOUND SPRING

GUIDING BUSH REBOUND SPRING

310 ₽
42

48600830S SCREW SLEEVE M27X0,8

SCREW SLEEVE M27X0,8

8 360 ₽
43

48600299 O-RING 6X1,2 NBR

O-RING 6X1,2 NBR

30 ₽
44

48600511 REBOUND SPRING L=32 C=17

REBOUND SPRING L=32 C=17

630 ₽
45

48600576 PISTON ROD REBOUND

PISTON ROD REBOUND

2 230 ₽
47

48600382 SHUTTLE VALVE SPRING C=0,4

SHUTTLE VALVE SPRING C=0,4

370 ₽
51

48600455 PISTON RING 5X1X68

PISTON RING 5X1X68

3 790 ₽
52

48600575 PISTON REBOUND

PISTON REBOUND

3 400 ₽
55

40540486 NUT M6X0,5 REBOUND

NUT M6X0,5 REBOUND

920 ₽
57

48600764 ADAPTER SLEEVE D23/D28

ADAPTER SLEEVE D23/D28

5 130 ₽
58

48600763 PIPE D23/L350

PIPE D23/L350

17 330 ₽
59

48600048 O-RING NBR 46X2

O-RING NBR 46X2

540 ₽
60

48600860SA2 AXLE CLAMP L/S + TUBE CPL.

AXLE CLAMP L/S + TUBE CPL.

170 ₽
61

48600861S1 AXLE CLAMP R/S + TUBE CPL.

AXLE CLAMP R/S + TUBE CPL.

170 ₽
62

0025080256 HH COLLAR SCREW M8X25 TX40

HH COLLAR SCREW M8X25 TX40

300 ₽
63

48600163 CHECK VALVE NUT M6X0,5 D=2

CHECK VALVE NUT M6X0,5 D=2

720 ₽
64

48600202 SPRING CHECK VALVE D=0,7

SPRING CHECK VALVE D=0,7

310 ₽
69

48600586S TAP COMPRESSION CPL.

TAP COMPRESSION CPL.

24 910 ₽
71

48600047 PISTON COMPRESSION D=27,9

PISTON COMPRESSION D=27,9

2 250 ₽
72

46811499 O-RING NBR 21X2

O-RING NBR 21X2

60 ₽
73

35480320 O-RING NBR 24X2

O-RING NBR 24X2

80 ₽
81

48600004 COPPER WASHER 29,5X33,5X1

COPPER WASHER 29,5X33,5X1

910 ₽
82

48600141 RUBBER CAP D=35MM

RUBBER CAP D=35MM

920 ₽
83

48601166S1 FORK OIL SAE4 5L

FORK OIL SAE4 5L

47 770 ₽
85

48600431S2 PRE-LOAD ADJ. M51X1,5

PRE-LOAD ADJ. M51X1,5

22 640 ₽
86

48600038 SPACER 42X26,5X10

SPACER 42X26,5X10

560 ₽
86

48600037 SPACER 42X26,5X5

SPACER 42X26,5X5

800 ₽
86

48600036 SPACER 42X26,5X2,5

SPACER 42X26,5X2,5

440 ₽
86

48600053 SPACER 42X26,5X1,5

SPACER 42X26,5X1,5

800 ₽
98

T511 SILICONE GREASE F . DUST STRIPE

SILICONE GREASE F . DUST STRIPE

5 410 ₽
99

R14020 SXS SERVICE KIT

SXS SERVICE KIT

31 490 ₽
