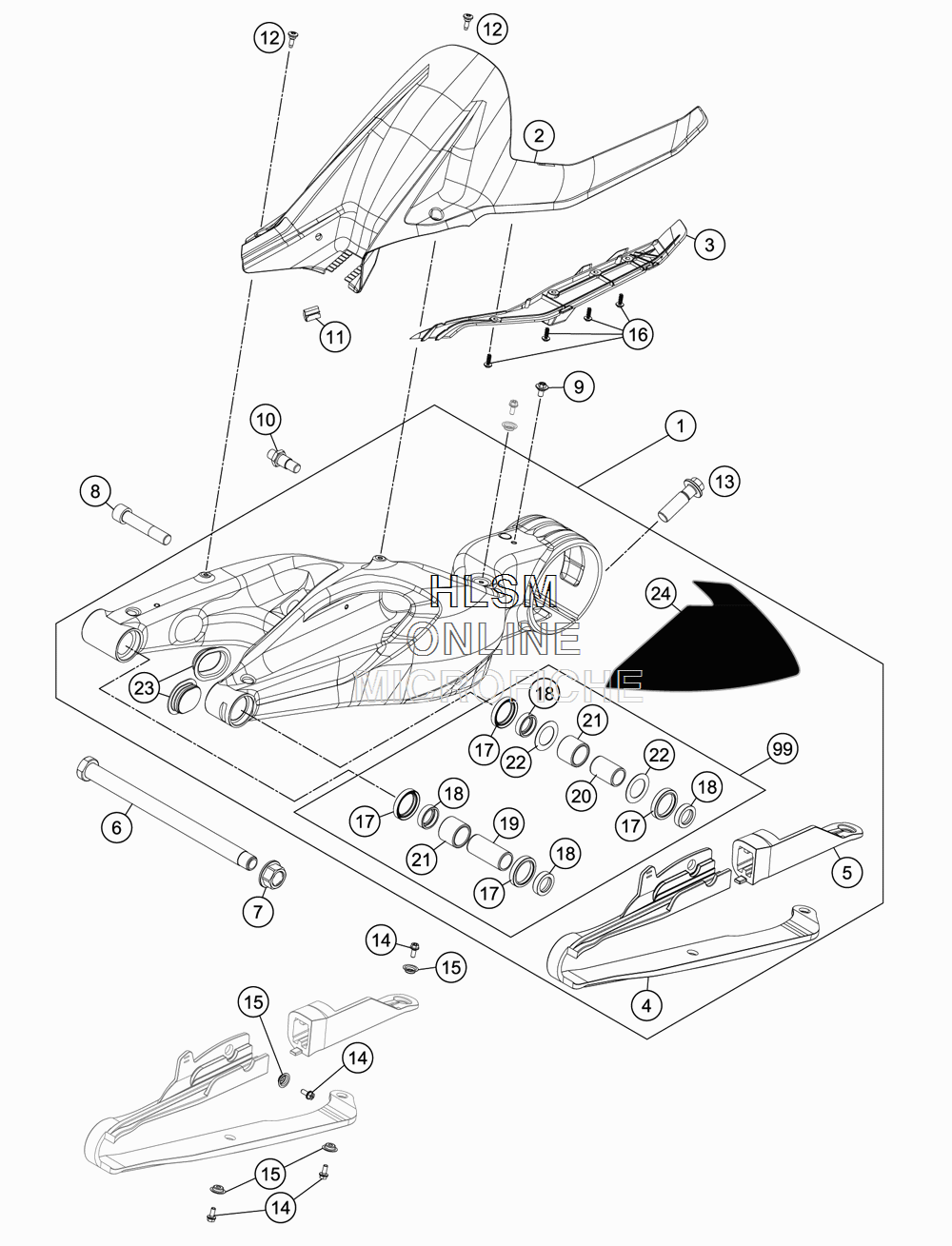

SWINGARM для Ktm 1290 SUPER DUKE R ABS ORANGE - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    6130403004433 SWINGARM CPL.
    SWINGARM CPL.
  • 2
    61304050000 SPLASH PROTECTOR
    SPLASH PROTECTOR
  • 3
    61304051000 BRACKET SPLASH PROTECTOR
    BRACKET SPLASH PROTECTOR
  • 4
    61304060000 CHAIN SLIDING GUARD FRONT
    CHAIN SLIDING GUARD FRONT
  • 5
    61304070000 CHAIN SLIDING GUARD REAR
    CHAIN SLIDING GUARD REAR
  • 6
    69004037144 SWINGARM BOLT
    SWINGARM BOLT
  • 7
    60004038000 COLLAR NUT M19X1,5 WS=27MM
    COLLAR NUT M19X1,5 WS=27MM
  • 8
    60004017000 SCREW M14X1,5 L=73MM
    SCREW M14X1,5 L=73MM
  • 9
    83008000012 SPECIAL SCREW M6X12X3
    SPECIAL SCREW M6X12X3
  • 10
    76004142000 BOLT BRAKE SADDLE BRACKET
    BOLT BRAKE SADDLE BRACKET
  • 11
    61304042000 CABLE SUPPORT
    CABLE SUPPORT
  • 12
    69008021060 SPECIAL SCREW M5X17
    SPECIAL SCREW M5X17
  • 13
    61310021000 HH COLLAR SCREW M16X1,5X55
    HH COLLAR SCREW M16X1,5X55
  • 14
    0025050126 HH COLLAR SCREW M5X12 TX30
    HH COLLAR SCREW M5X12 TX30
  • 15
    46104066050 BUSH FOR CHAINSLIDER GUARD
    BUSH FOR CHAINSLIDER GUARD
  • 16
    0081050141 EJOT PT SCREW 50X14 WN 1451
    EJOT PT SCREW 50X14 WN 1451
  • 17
    0760304073 SHAFT SEAL RING 30X40X7
    SHAFT SEAL RING 30X40X7
  • 18
    60004034000 BUCKET F . SHAFT SEAL RING
    BUCKET F . SHAFT SEAL RING
  • 19
    69004032000 INNER RING JR 20X25X56,5
    INNER RING JR 20X25X56,5
  • 20
    60004032000 INNER RING JR20X25X38,5
    INNER RING JR20X25X38,5
  • 21
    60004031000 NEEDLE BUSH HK2526B
    NEEDLE BUSH HK2526B
  • 22
    60004033000 STOP DISK
    STOP DISK
  • 23
    61304041000 PLUG CAP SWINGARM
    PLUG CAP SWINGARM
  • 24
    61304030010 STICKER SWINGARM (BLACK)
    STICKER SWINGARM (BLACK)
  • 99
    69004230010 SWINGARM REP . KIT
    SWINGARM REP . KIT
