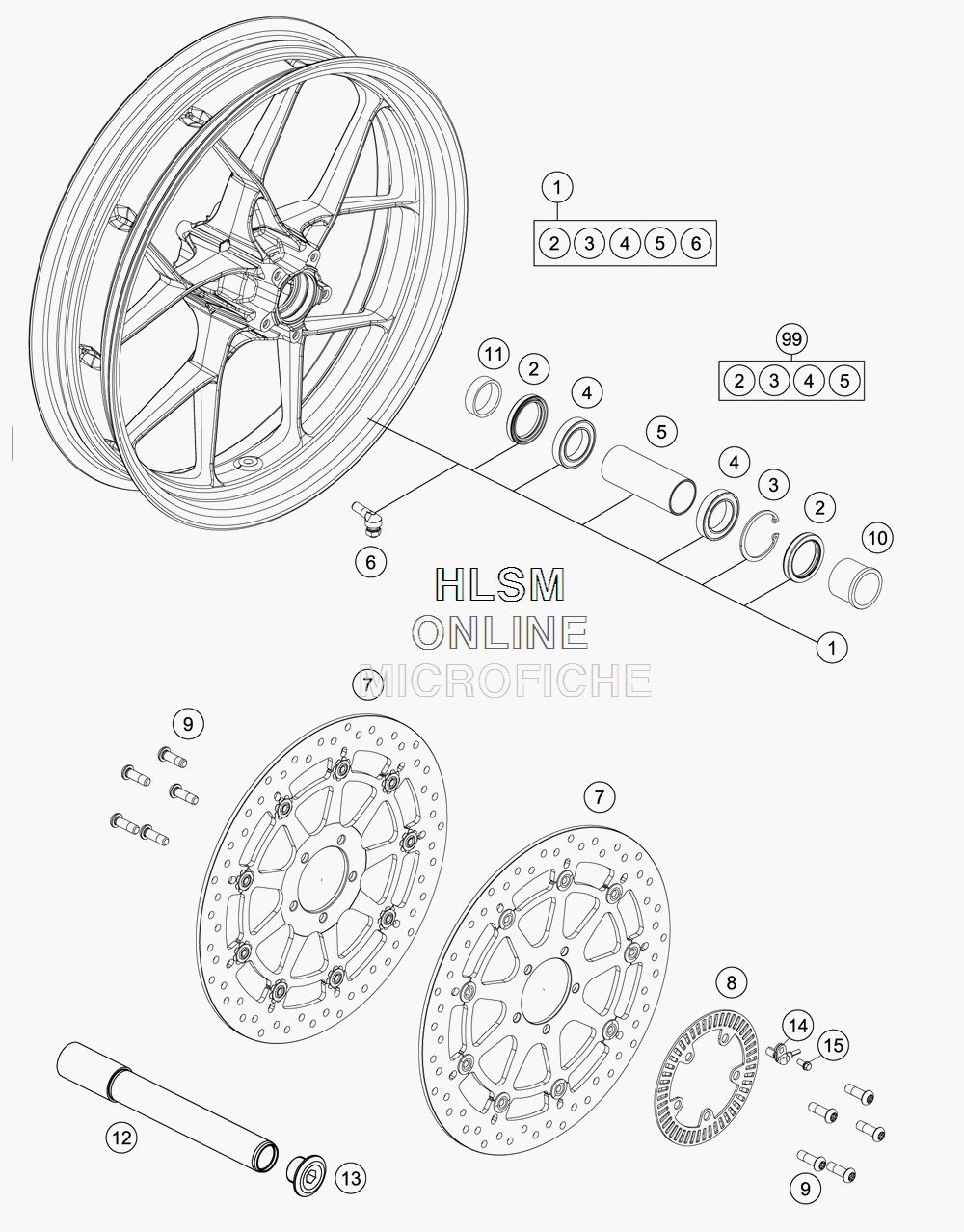

FRONT WHEEL для Ktm 1290 SUPER DUKE R ABS ORANGE - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    6130900114430 FRONT WHEEL 3,5X17" (BLACK)
    FRONT WHEEL 3,5X17" (BLACK)
  • 2
    0760354771 SHAFT SEAL RING 35X47X7 TC
    SHAFT SEAL RING 35X47X7 TC
  • 3
    0472047175 CIRCLIP DIN0472-47X1 ,75
    CIRCLIP DIN0472-47X1 ,75
  • 4
    0625069068 GR.BALL BEAR.6906 DDU2CG23 S6NM
    GR.BALL BEAR.6906 DDU2CG23 S6NM
  • 5
    61009011000 BEARING SPACER TUBE FRONT
    BEARING SPACER TUBE FRONT
  • 6
    61009076100 VALVE ANGLED
    VALVE ANGLED
  • 7
    6130906000033 BRAKE DISK D=320/5
    BRAKE DISK D=320/5
  • 8
    76042020000 SENSOR GEAR FRONT
    SENSOR GEAR FRONT
  • 9
    76009062000 SPECIAL SCREW M8X25 SS TX40
    SPECIAL SCREW M8X25 SS TX40
  • 10
    61009012000 SPACER BUSH. FR. WHEEL L/S
    SPACER BUSH. FR. WHEEL L/S
  • 11
    60009013000 SPACER BUSH. FR. WHEEL R/S
    SPACER BUSH. FR. WHEEL R/S
  • 12
    61009081000 WHEEL SPINDEL FRONT
    WHEEL SPINDEL FRONT
  • 13
    61009082000 AH SCREW M25X1,5 WS=12
    AH SCREW M25X1,5 WS=12
  • 14
    76042025000 ABS-SENSOR
    ABS-SENSOR
  • 15
    59009062013 SPECIAL SCREW M6X13 WS=8 10.9
    SPECIAL SCREW M6X13 WS=8 10.9
  • 99
    61009015000 FRONT WHEEL REP. KIT
    FRONT WHEEL REP. KIT
