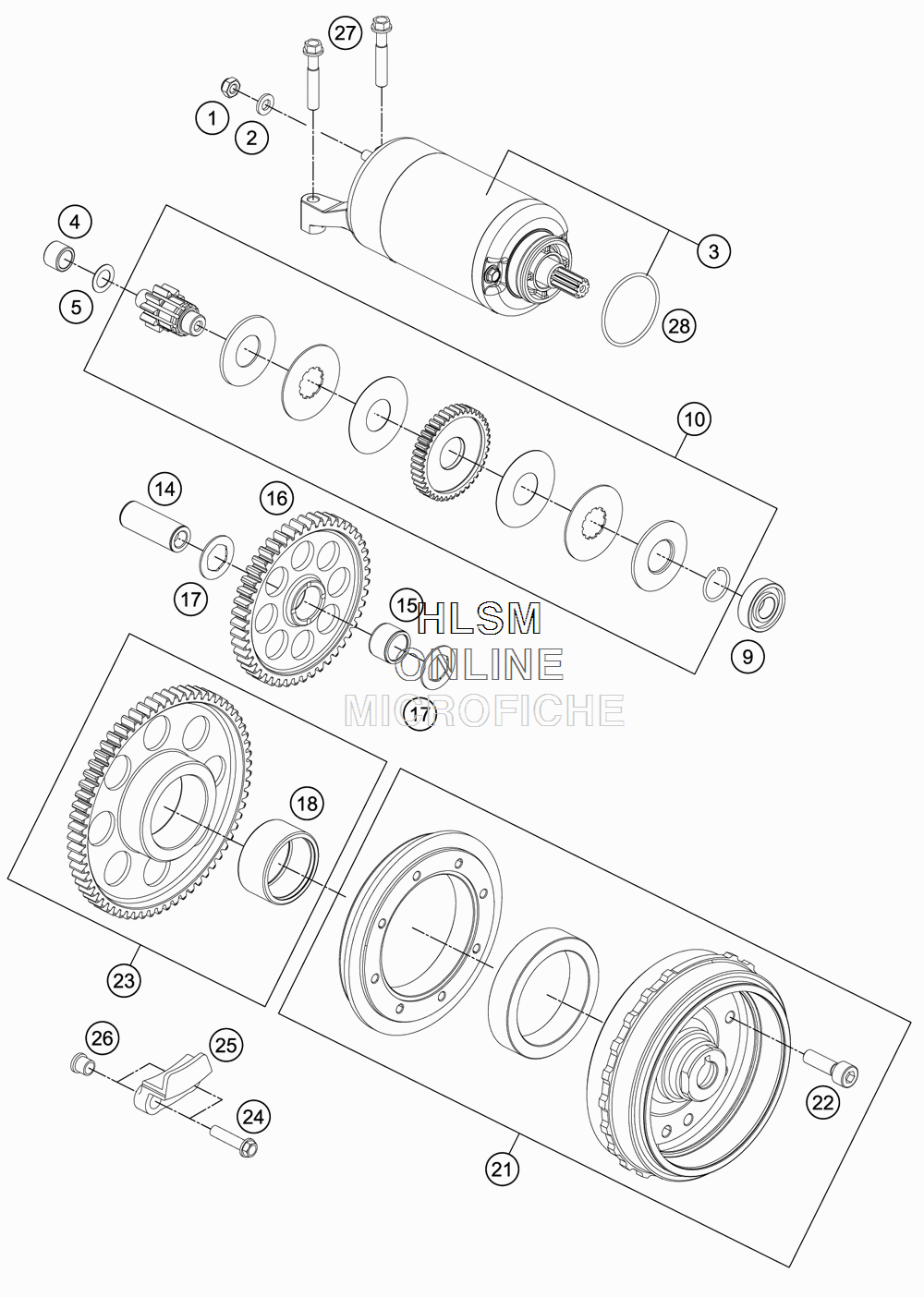

ELECTRIC STARTER для Ktm 1290 SUPER DUKE R ABS ORANGE - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 2
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 3
    60440001000 STARTER MOTOR
    STARTER MOTOR
  • 4
    0618101410 NEEDLE SLEEVE HK 1010 10/14/10
    NEEDLE SLEEVE HK 1010 10/14/10
  • 5
    60038007010 WASHER 10X16X0,5 03
    WASHER 10X16X0,5 03
  • 9
    0625060016 GROOV .BALL BEAR. 6001.2RSR C3
    GROOV .BALL BEAR. 6001.2RSR C3
  • 10
    60340017100 TORQUE LIMITER 10/55 CPL.
    TORQUE LIMITER 10/55 CPL.
  • 14
    61230058050 BEARING BOLT 15X39
    BEARING BOLT 15X39
  • 15
    0405151913 NEEDLE BEARING K 15X19X13
    NEEDLE BEARING K 15X19X13
  • 16
    60340022000 IDLER GEAR 43T
    IDLER GEAR 43T
  • 17
    61230057060 STOP DISK 15,2X25X1
    STOP DISK 15,2X25X1
  • 18
    0618354220 NEEDLE BUSH HK3520 35/42/20
    NEEDLE BUSH HK3520 35/42/20
  • 21
    60239105000 ROTOR
    ROTOR
  • 22
    0912060206 AH SCREW DIN 912 M6X20
    AH SCREW DIN 912 M6X20
  • 23
    60340020000 FREE WHEEL GEAR CPL.
    FREE WHEEL GEAR CPL.
  • 24
    0025060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 25
    60040027000 FREE WHEEL HOLDER
    FREE WHEEL HOLDER
  • 26
    60040027050 SUPPORTING SLEEVE
    SUPPORTING SLEEVE
  • 27
    0025060300 HH COLLAR SCREW M6X30 INOX
    HH COLLAR SCREW M6X30 INOX
  • 28
    0770033020 O-RING 33,75X2,00
    O-RING 33,75X2,00
