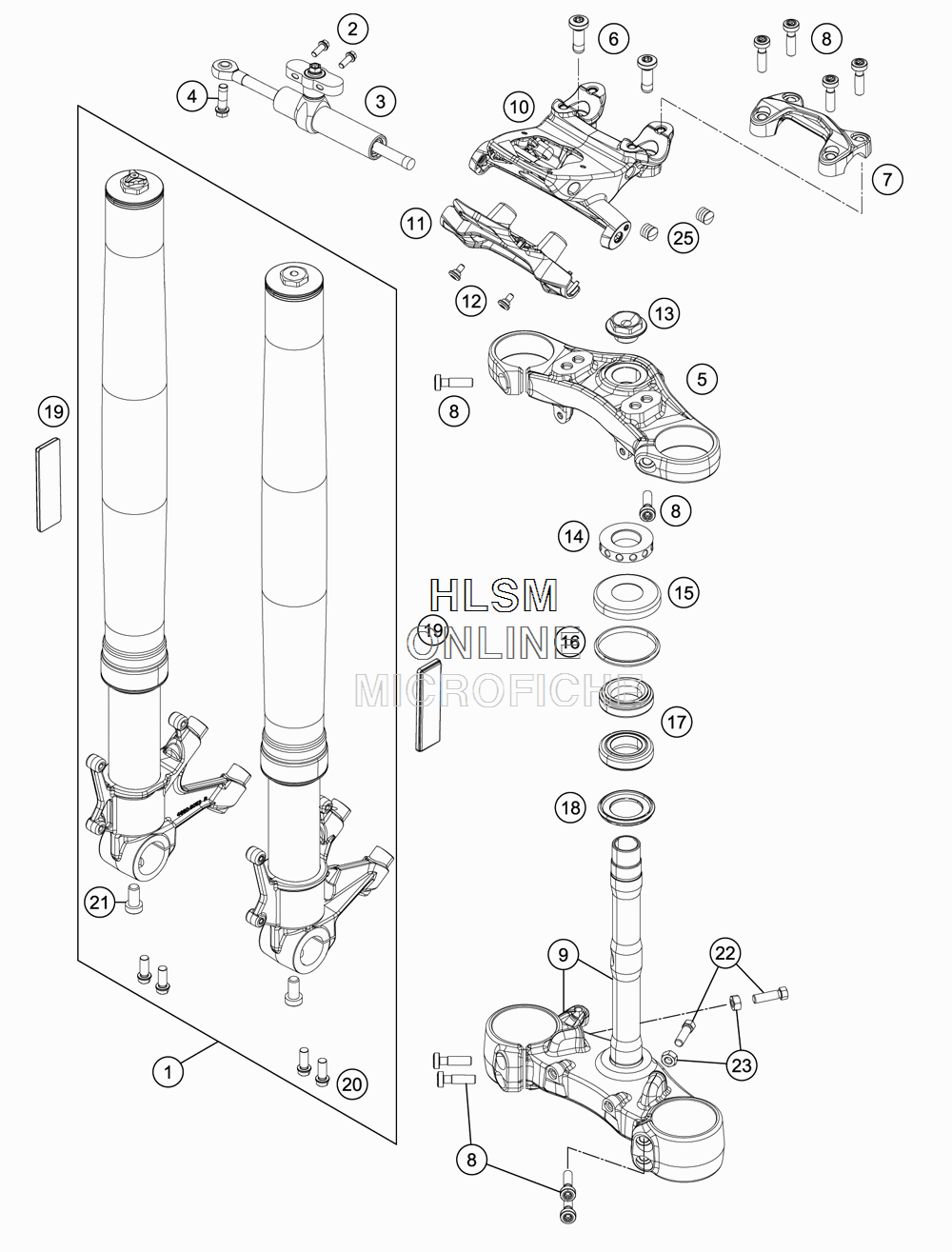

FRONT FORK TRIPLE CLAMP для Ktm 1290 SUPER DUKE R ABS ORANGE - 2015 года выпуска
-
№АртикулНазвание
-
114188N2201 FORK WP SUPERDUKEFORK WP SUPERDUKE
-
20025060206S HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
316181N52ES STEERING DAMPER CPL. STROKE 75STEERING DAMPER CPL. STROKE 75
-
40025080256S HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
56130103402933S TOP TRIPLE CLAMPTOP TRIPLE CLAMP
-
60035100309S AH-COLLAR SCREW M10X30 ISA45AH-COLLAR SCREW M10X30 ISA45
-
76130103800033S HANDLEBAR CLAMPHANDLEBAR CLAMP
-
80035080306 AH-COLLAR SCREW M8X30 ISA45AH-COLLAR SCREW M8X30 ISA45
-
96130103202933S BOTTOM TRIPLE CLAMP CPL.BOTTOM TRIPLE CLAMP CPL.
-
106130104304433 INSTRUMENTS BRACKET CPL.INSTRUMENTS BRACKET CPL.
-
1161301046000 CASE INSTRUMENTS BRACKETCASE INSTRUMENTS BRACKET
-
1269008021160 SPECIAL SCREW M5X12SPECIAL SCREW M5X12
-
136030103600001 STEER.HEAD SCREW M22X1,5 SW27STEER.HEAD SCREW M22X1,5 SW27
-
1457301036100 STEER.HEAD NUTSTEER.HEAD NUT
-
1561001086000 STEERING HEAD COVERSTEERING HEAD COVER
-
1654601184000 STEERING HEAD GASKET TOPSTEERING HEAD GASKET TOP
-
1754201081100 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
1854601084100 O-RING SUPPORT W/ SEALING LIPO-RING SUPPORT W/ SEALING LIP
-
1958412080100 REFLECTOR (YELLOW) ONLY USA & AUSREFLECTOR (YELLOW) ONLY USA & AUS
-
200025080206 HH COLLAR SCREW M8X20 TX40HH COLLAR SCREW M8X20 TX40
-
2100501020S1 AH SCREW M10X20 SETAH SCREW M10X20 SET
-
2259001037000 SPECIAL SCREW M8X26 WS=10SPECIAL SCREW M8X26 WS=10
-
230934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
2555009086000 PLUG SFL13PLUG SFL13
