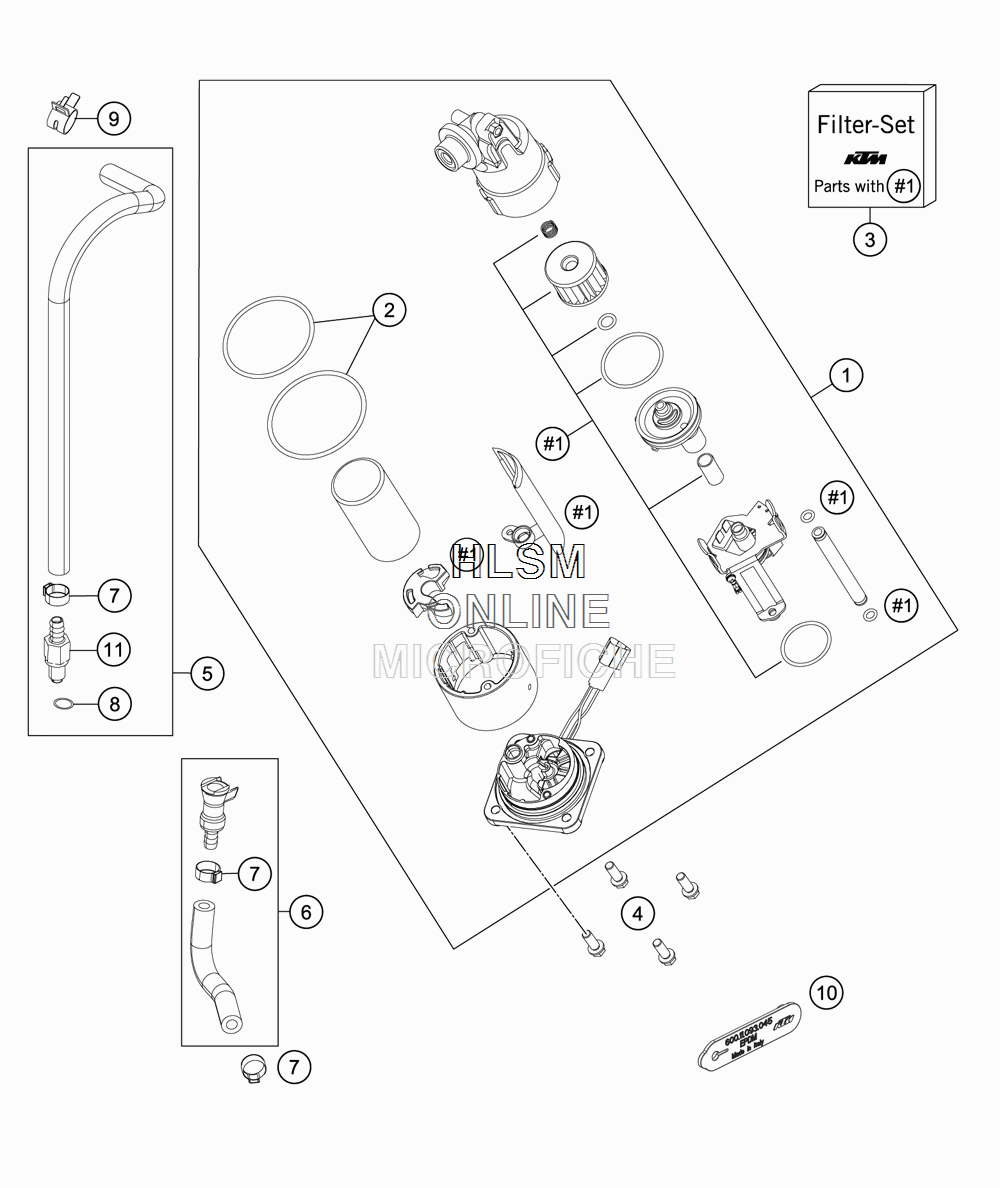

FUEL PUMP для Ktm 1290 ADVENTURE - 2015 года выпуска`
-
№АртикулНазвание
-
160307088000 FUEL PUMPFUEL PUMP
-
261007089000 O-RING SET FOR FUEL PUMPO-RING SET FOR FUEL PUMP
-
361007090100 FILTER SET FUEL PUMPFILTER SET FUEL PUMP
-
40025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
560307016000 FUEL HOSE 1 CPL.FUEL HOSE 1 CPL.
-
660307017000 FUEL HOSE TANK/CONNECTORFUEL HOSE TANK/CONNECTOR
-
700050157706 VARIABLE ONE-EAR CLAMP 15,7MMVARIABLE ONE-EAR CLAMP 15,7MM
-
858507012000 O-RING VITON F . PLUG CPCO-RING VITON F . PLUG CPC
-
900049140121 CLAMP STD DN14CLAMP STD DN14
-
1060011093045 RUBBER CABLE TIE 45MMRUBBER CABLE TIE 45MM
-
115850701030030 PLUG CPC (BLACK)PLUG CPC (BLACK)
