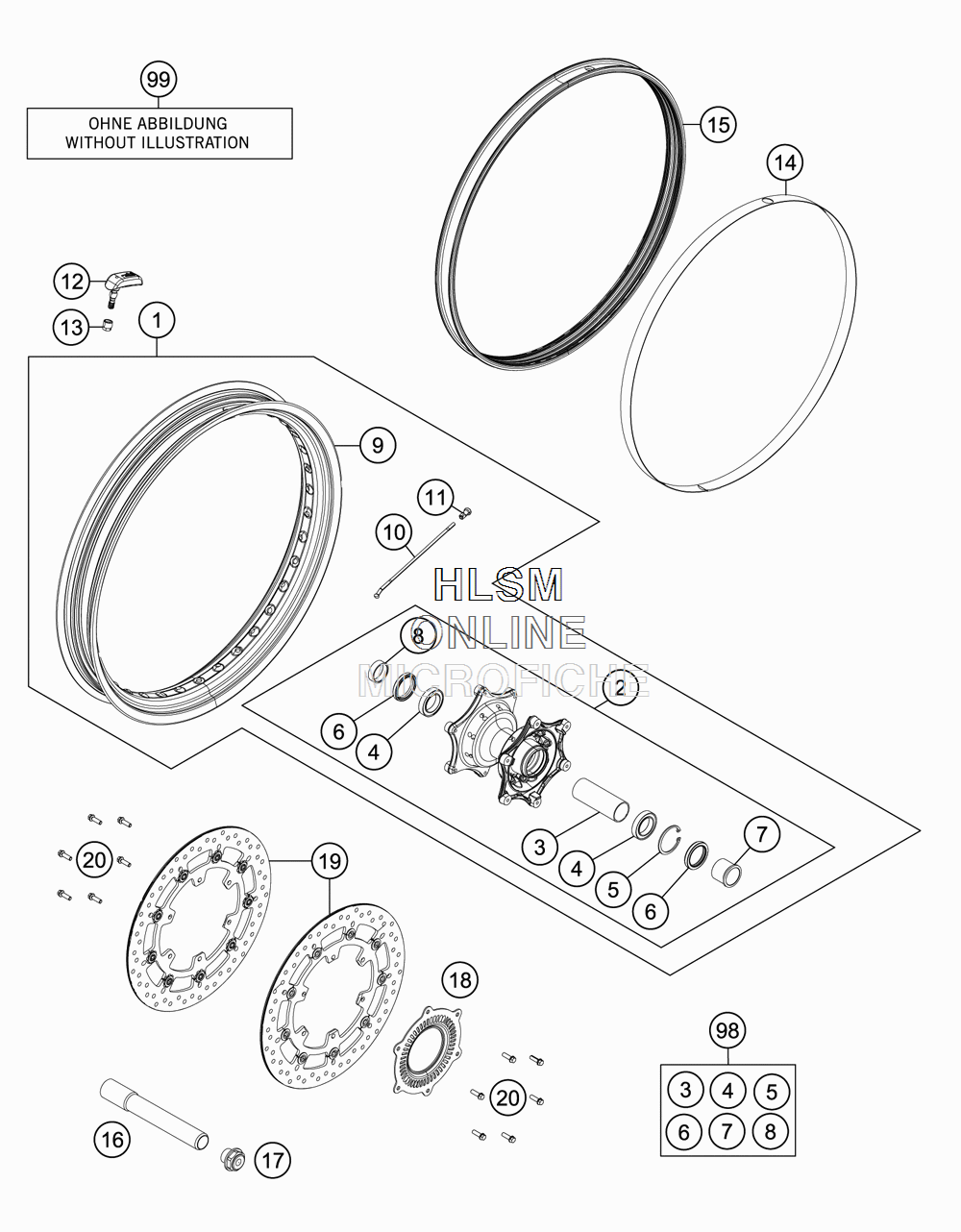

FRONT WHEEL для Ktm 1290 ADVENTURE - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    60409001044KBA FRONT WHEEL CPL. 3"X19" (BLACK)
    FRONT WHEEL CPL. 3"X19" (BLACK)
  • 2
    60309010044KBA FRONT WHEEL HUB CPL.
    FRONT WHEEL HUB CPL.
  • 3
    60309011000 BUSHING SPACER TUBE FRONT
    BUSHING SPACER TUBE FRONT
  • 4
    0625069068 GR.BALL BEAR.6906 DDU2CG23 S6NM
    GR.BALL BEAR.6906 DDU2CG23 S6NM
  • 5
    0472047175 CIRCLIP DIN0472-47X1 ,75
    CIRCLIP DIN0472-47X1 ,75
  • 6
    0760354771 SHAFT SEAL RING 35X47X7 TC
    SHAFT SEAL RING 35X47X7 TC
  • 7
    60309012000 SPACER BUSH. FRONT WHEEL LEFT
    SPACER BUSH. FRONT WHEEL LEFT
  • 8
    60009013000 SPACER BUSH. FR. WHEEL R/S
    SPACER BUSH. FR. WHEEL R/S
  • 9
    60409070000KBA FRONT WHEEL RIM 3"X19" TUBELES
    FRONT WHEEL RIM 3"X19" TUBELES
  • 10
    60309171000 SPOKE 5/4.37/M5
    SPOKE 5/4.37/M5
  • 11
    60310072100 SPOKE SIPPLE QUADRAX M5
    SPOKE SIPPLE QUADRAX M5
  • 12
    60312033000 TIRE AIR PRESSURE SENSOR
    TIRE AIR PRESSURE SENSOR
  • 13
    60312033050 NUT AIR PRESSURE SENSOR
    NUT AIR PRESSURE SENSOR
  • 14
    60309173100 RIM BAND 19"
    RIM BAND 19"
  • 15
    60309277100 GASKET RUBBER 3"X19"
    GASKET RUBBER 3"X19"
  • 16
    60309081000 AXLE FRONT
    AXLE FRONT
  • 17
    6900103600001 STEERING HEAD SCREW
    STEERING HEAD SCREW
  • 18
    60342020000 SENSOR GEAR ABS
    SENSOR GEAR ABS
  • 19
    6030906000030 BRAKE DISC FRONT D=320X4,5
    BRAKE DISC FRONT D=320X4,5
  • 20
    59009062019 SPECIAL SCREW M6X19 WS=8 10.9
    SPECIAL SCREW M6X19 WS=8 10.9
  • 98
    60309015000 FRONT WHEEL REP. KIT
    FRONT WHEEL REP. KIT
  • 99
    60312034044 VALVE KIT AIR PRESSURE SENSOR
    VALVE KIT AIR PRESSURE SENSOR
