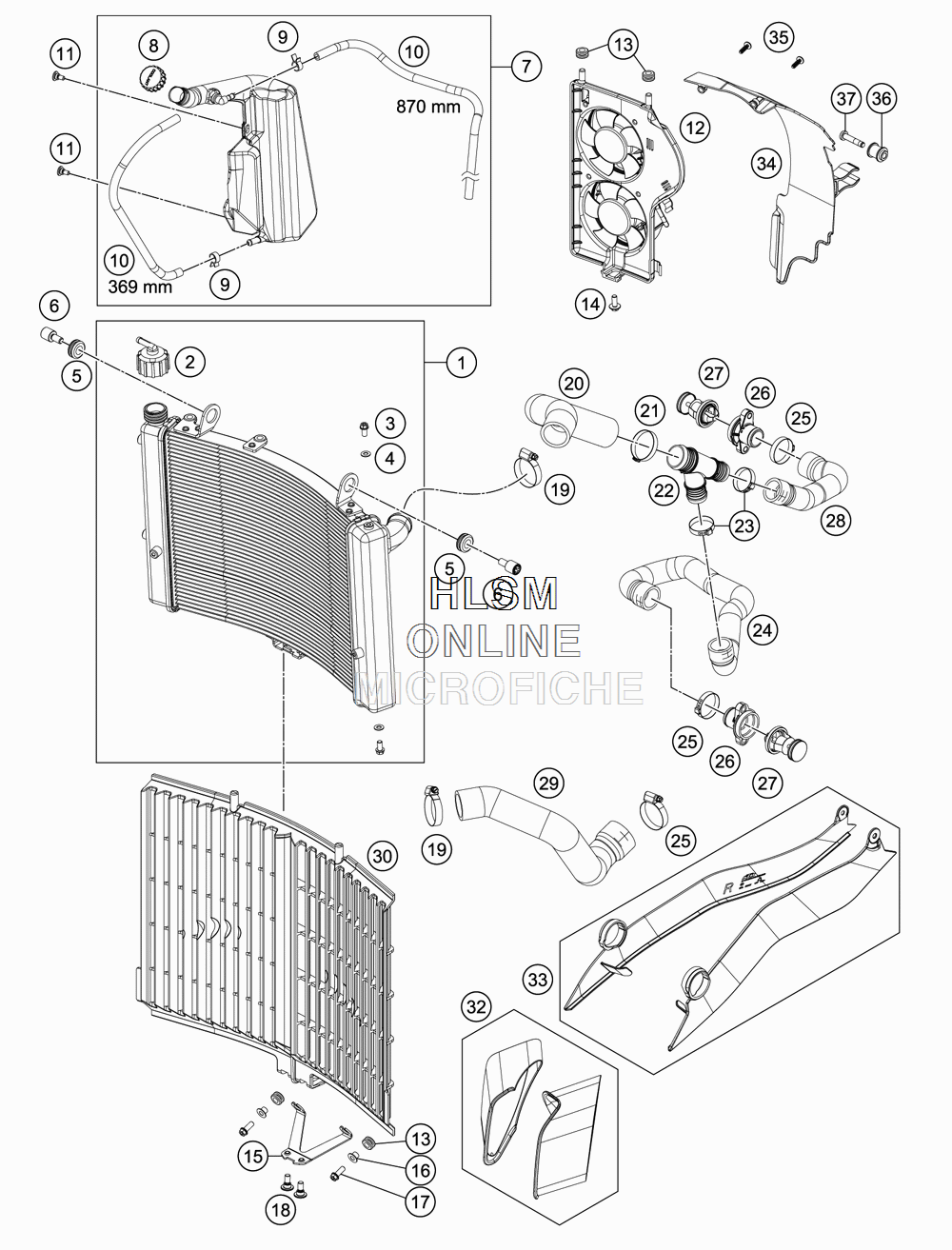

COOLING SYSTEM для Ktm 1290 ADVENTURE - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    60335010000 WATER COOLER
    WATER COOLER
  • 2
    62535009000 RADIATOR CAP 1,4 BAR
    RADIATOR CAP 1,4 BAR
  • 3
    0025060126 HH COLLAR SCREW M6X12 TX30
    HH COLLAR SCREW M6X12 TX30
  • 4
    60035048000 ALU-GASKET 6X10X1.5
    ALU-GASKET 6X10X1.5
  • 5
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 6
    69035001000 STUD BOLT M6 11X11 ISA45
    STUD BOLT M6 11X11 ISA45
  • 7
    60435065000 EXPANSION TANK
    EXPANSION TANK
  • 8
    60335066044 PLUG F . EXPANSION TANK
    PLUG F . EXPANSION TANK
  • 9
    58007117000 YDNAC-C LAMP 10107 10MM
    YDNAC-C LAMP 10107 10MM
  • 10
    60035067001 HOSE 6X10 EPDM 03
    HOSE 6X10 EPDM 03
  • 11
    69008021160 SPECIAL SCREW M5X12
    SPECIAL SCREW M5X12
  • 12
    60335044033 FAN COVER CPL.
    FAN COVER CPL.
  • 13
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 14
    0024060156 HH COLLAR SCREW M6X15 TX30
    HH COLLAR SCREW M6X15 TX30
  • 15
    60335005000 MOUNTING PLATE COOLER BOTTOM
    MOUNTING PLATE COOLER BOTTOM
  • 16
    75014010050 COLLAR BUSHING 6,1X8,1X14X8
    COLLAR BUSHING 6,1X8,1X14X8
  • 17
    0025060166 HH COLLAR SCREW M6X16 TX30
    HH COLLAR SCREW M6X16 TX30
  • 18
    0025050106 COLLAR SCREW M5X10 ISA30
    COLLAR SCREW M5X10 ISA30
  • 18
    69013099050 SCREW F . EXPANSION TANK ONLY AUS
    SCREW F . EXPANSION TANK ONLY AUS
  • 19
    54305058000 HOSE CLAMP 30-45 SGT
    HOSE CLAMP 30-45 SGT
  • 20
    60335026000 PREFORMED HOSE
    PREFORMED HOSE
  • 21
    00050396706 VARIABLE ONE-EAR CLAMP 39,6MM
    VARIABLE ONE-EAR CLAMP 39,6MM
  • 22
    60335093000 Y -JOINT
    Y -JOINT
  • 23
    00050331706 VARIABLE ONE-EAR CLAMP 33,1MM
    VARIABLE ONE-EAR CLAMP 33,1MM
  • 24
    60335025000 PREFORMED HOSE
    PREFORMED HOSE
  • 25
    00050331706 VARIABLE ONE-EAR CLAMP 33,1MM
    VARIABLE ONE-EAR CLAMP 33,1MM
  • 26
    61235019100 WATER CONNECTION CPL.
    WATER CONNECTION CPL.
  • 27
    61235017000 THERMOSTAT 70 DEGREE
    THERMOSTAT 70 DEGREE
  • 28
    60335024000 PREFORMED HOSE
    PREFORMED HOSE
  • 29
    60335027000 PREFORMED HOSE
    PREFORMED HOSE
  • 30
    60335040000 RADIATOR PROTECTOR (ONLY AUS)
    RADIATOR PROTECTOR (ONLY AUS)
  • 32
    60408052044 AIR DEFLECTOR KIT TANK
    AIR DEFLECTOR KIT TANK
  • 33
    60308053044 AIR DEFLECTOR KIT SEAT
    AIR DEFLECTOR KIT SEAT
  • 34
    60308056000 AIR DEFLECTOR FAN
    AIR DEFLECTOR FAN
  • 35
    0081050181 SCREW FOR PLASTIC K50X18 T20
    SCREW FOR PLASTIC K50X18 T20
  • 36
    60308056010 RETAINING SLEEVE
    RETAINING SLEEVE
  • 37
    0035100509S AH-COLLAR SCREW M10X50 ISA45
    AH-COLLAR SCREW M10X50 ISA45
