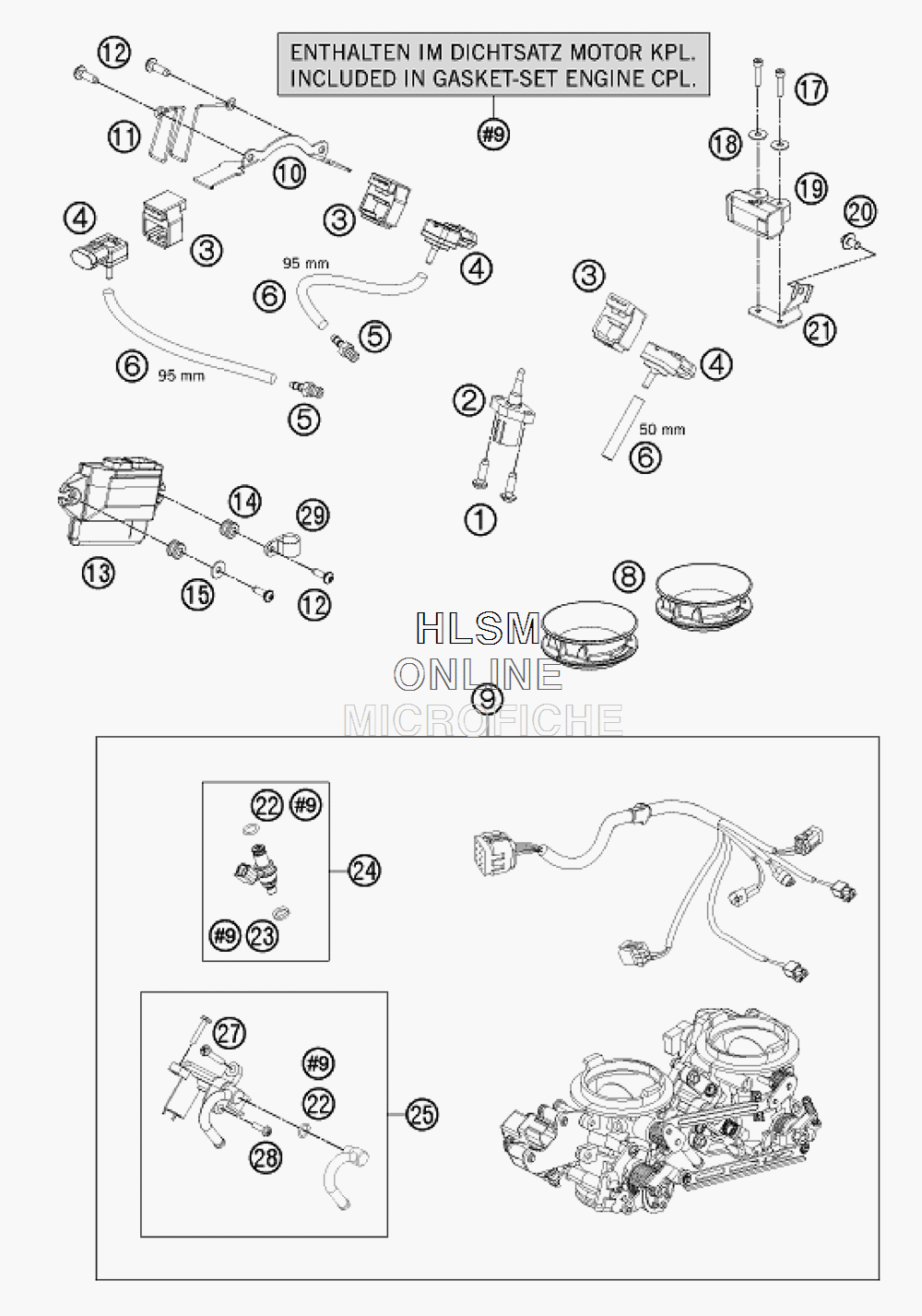

THROTTLE BODY для Ktm 1190 RC8 R WHITE - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0081050181 SCREW FOR PLASTIC K50X18 T20
    SCREW FOR PLASTIC K50X18 T20
  • 2
    61041080000 AMBIENT-AIR TEMPERATURE SENSOR
    AMBIENT-AIR TEMPERATURE SENSOR
  • 3
    61041085150 RUBBER SUPP. PRESSURE SENS.
    RUBBER SUPP. PRESSURE SENS.
  • 4
    61041085100 PRESSURE SENSOR
    PRESSURE SENSOR
  • 5
    61036023100 VACUUM CONECTION
    VACUUM CONECTION
  • 6
    60031098001 HOSE 3,2X8,5 PER METER
    HOSE 3,2X8,5 PER METER
  • 8
    61241040000 INTAKE TRUMPET
    INTAKE TRUMPET
  • 9
    69341001000 THROTTLE BODY CPL. DK52
    THROTTLE BODY CPL. DK52
  • 10
    69006001031 SENSOR-RETAIN. PLATE AIR BOX
    SENSOR-RETAIN. PLATE AIR BOX
  • 11
    69006001032 HOLDER WIRING HARNESS REAR
    HOLDER WIRING HARNESS REAR
  • 12
    0081050161 EJOT PT SCREW K50X16 1451
    EJOT PT SCREW K50X16 1451
  • 13
    61041031300 ELECTRONIC CONTROL UNIT
    ELECTRONIC CONTROL UNIT
  • 14
    60039030000 VIBRATION DAMPER DIGITAL BOX
    VIBRATION DAMPER DIGITAL BOX
  • 15
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 17
    0912040203 AH SCREW DIN 912-M 4X20
    AH SCREW DIN 912-M 4X20
  • 18
    61041088050 SHIM 4,3X15X1,25MM GALVANIZED
    SHIM 4,3X15X1,25MM GALVANIZED
  • 19
    61041088000 ROLLOVER SENSOR
    ROLLOVER SENSOR
  • 20
    0024060136 HH COLLAR SCREW M6X13
    HH COLLAR SCREW M6X13
  • 21
    69041088050 HOLDER ROLLOVER SENSOR
    HOLDER ROLLOVER SENSOR
  • 22
    75041023020 O-RING 7,2X2,2
    O-RING 7,2X2,2
  • 23
    75041023010 SEAL RING
    SEAL RING
  • 24
    61241023044 INJECTOR CPL.
    INJECTOR CPL.
  • 25
    61241013044 FUEL PIPE CPL.
    FUEL PIPE CPL.
  • 27
    75041013060 SCREW SHOULDER
    SCREW SHOULDER
  • 28
    61041060040 SCREW FOR SUPPORT STEPPER MOT.
    SCREW FOR SUPPORT STEPPER MOT.
  • 29
    69007029000 PVC-CLAMP HEYCO 13,9 3379
    PVC-CLAMP HEYCO 13,9 3379
