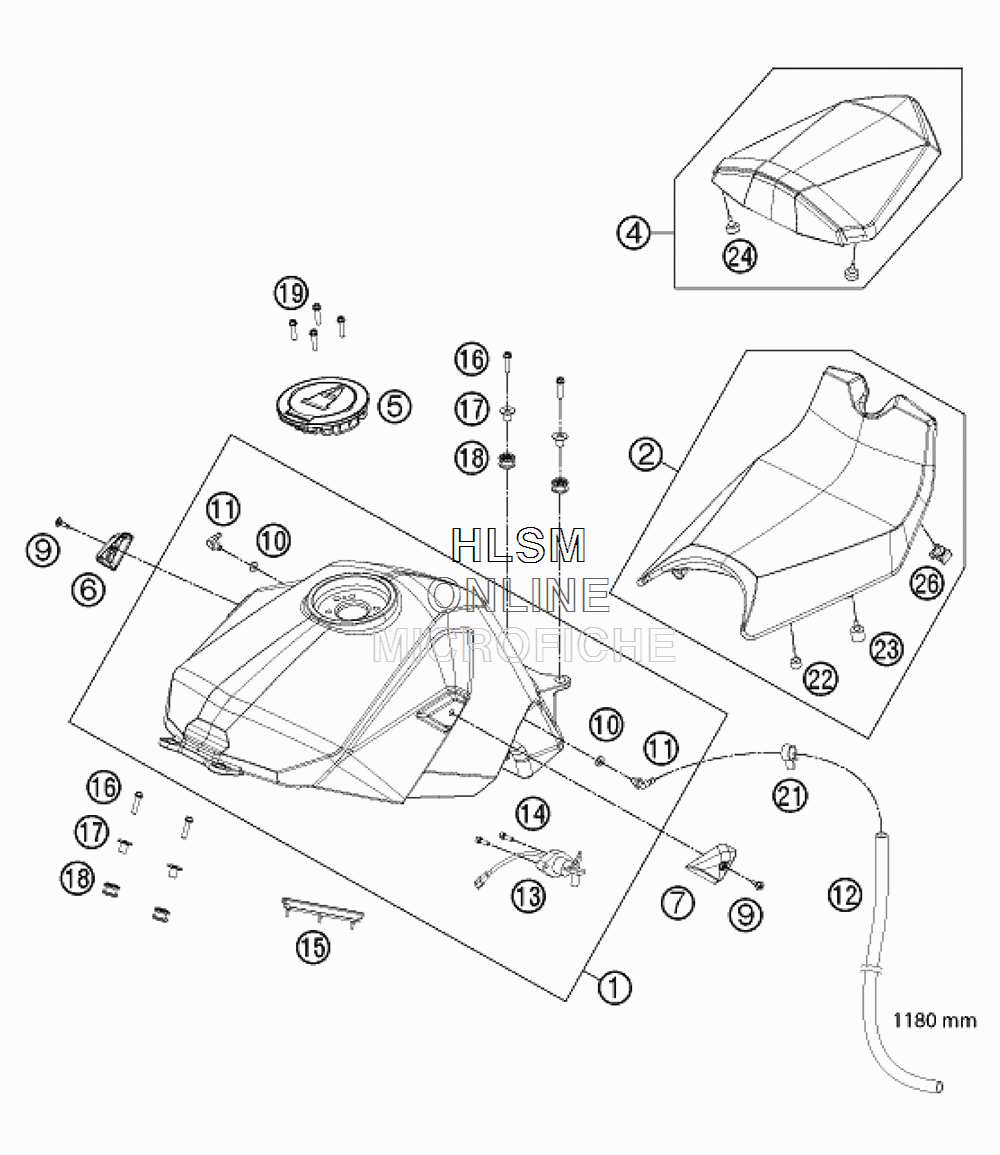

TANK SEAT COVER для Ktm 1190 RC8 R WHITE - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    6900701334428A FUEL TANK CPL. (WHITE BRILLIANT)
    FUEL TANK CPL. (WHITE BRILLIANT)
  • 2
    69007040200 SEAT
    SEAT
  • 4
    69007047000 PASSENGER SEAT
    PASSENGER SEAT
  • 5
    69007008100 TANK CAP
    TANK CAP
  • 6
    6900702610030 TANK PROTECTION R/S (BLACK) BR.
    TANK PROTECTION R/S (BLACK) BR.
  • 7
    6900702510030 TANK PROTECTION L/S (BLACK) BR.
    TANK PROTECTION L/S (BLACK) BR.
  • 9
    69007025050 SPECIAL SCREW M5X12 ISA30 ALU
    SPECIAL SCREW M5X12 ISA30 ALU
  • 10
    60007024050 GASKET FOR CONNECTING PIECE
    GASKET FOR CONNECTING PIECE
  • 11
    60007024000 CONNECT.PIECE F.OVERFLOW M7
    CONNECT.PIECE F.OVERFLOW M7
  • 12
    60007126001 HOSE 5,4X9,4 NBR, METER
    HOSE 5,4X9,4 NBR, METER
  • 13
    58207080100 GAS-LEVEL SENSOR ADV.
    GAS-LEVEL SENSOR ADV.
  • 14
    0912050163 AH SCREW DIN0912-M 5X16
    AH SCREW DIN0912-M 5X16
  • 15
    69007014100 TANK REST RUBBER
    TANK REST RUBBER
  • 16
    0025060306 HH COLLAR SCREW M6X30
    HH COLLAR SCREW M6X30
  • 17
    69007028000 COLLAR BUSH. 6,2X10X21X14MM
    COLLAR BUSH. 6,2X10X21X14MM
  • 18
    69007027000 RUBBER SLEEVE TANK MOUNT
    RUBBER SLEEVE TANK MOUNT
  • 19
    0912050123 AH SCREW DIN0912-M 5X12
    AH SCREW DIN0912-M 5X12
  • 21
    58007017000 YDNAC CLAMP 10101 (10,4MM)
    YDNAC CLAMP 10101 (10,4MM)
  • 22
    69007040010 DISTANCE RUBBER 14X8
    DISTANCE RUBBER 14X8
  • 23
    69007040020 DISTANCE RUBBER 17,8X16
    DISTANCE RUBBER 17,8X16
  • 24
    69007040030 DISTANCE RUBBER 18X8
    DISTANCE RUBBER 18X8
  • 26
    69007040070 SPACER RUBBER
    SPACER RUBBER
