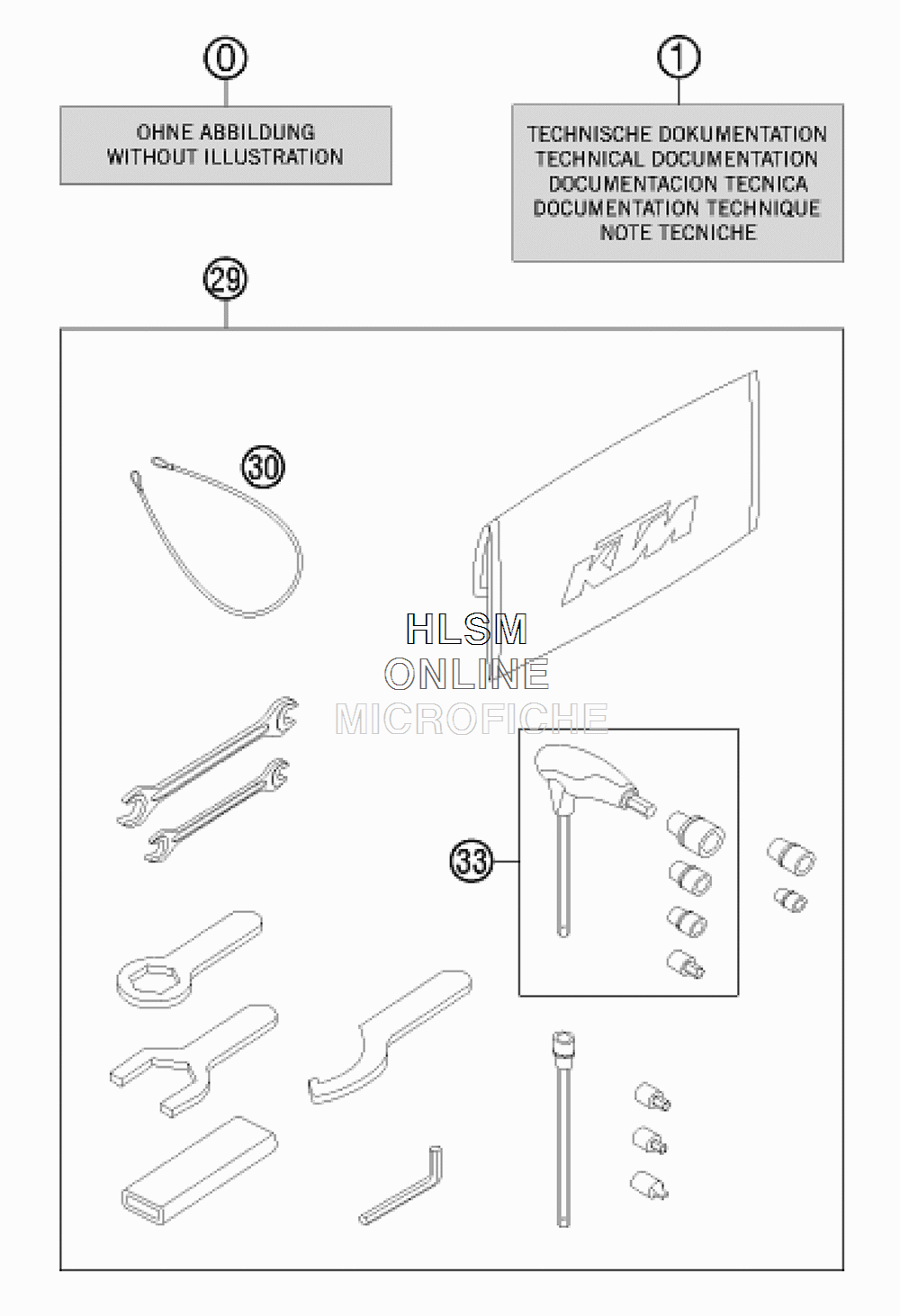

ACCESSORIES KIT для Ktm 1190 RC8 R WHITE - 2015 года выпуска
-
№АртикулНазвание
-
06900304803333S FOOTR. SUP. REAR L/S CPL. BL.FOOTR. SUP. REAR L/S CPL. BL.
-
06900304903333S FOOTR. SUP. REAR R/S CPL. BL.FOOTR. SUP. REAR R/S CPL. BL.
-
00025080556 HH COLLAR SCREW M8X55HH COLLAR SCREW M8X55
-
060012081200 LICENCE FITTINGLICENCE FITTING
-
00024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
00021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
00985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
058412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
040006006000 WASHER 6MMWASHER 6MM
-
00966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
00985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
00125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
058412080000 REFLECTOR (RED)REFLECTOR (RED)
-
069007047000 PASSENGER SEATPASSENGER SEAT
-
06900704705028 PASSENGERґS SEAT PLATE (WHITE)PASSENGERґS SEAT PLATE (WHITE)
-
000063099111 BAG FOR INSTR. MANUAL 245X170BAG FOR INSTR. MANUAL 245X170
-
000063004202 PRINT LABEL 60X51 MMPRINT LABEL 60X51 MM
-
0312305 DOCUMENTS BAGDOCUMENTS BAG
-
0312313 KTM BALLPOINT PEN (ORANGE)KTM BALLPOINT PEN (ORANGE)
-
03210040 CUSTOMER WELCOME LETTERCUSTOMER WELCOME LETTER
-
069002003100 DISTANCE BUSHING TRIPLE CLAMPDISTANCE BUSHING TRIPLE CLAMP
-
069008026060 WASHERWASHER
-
069007040090 STICKER SEAT LOCKINGSTICKER SEAT LOCKING
-
0U6915PWC POWERWEAR CATALOGPOWERWEAR CATALOG
-
13213285EN OWNERS MANUALOWNERS MANUAL
-
2969029099000 TOOL KITTOOL KIT
-
3060012015000 HELMET LOCKHELMET LOCK
-
3360029070300 T-WRENCH WS=6/8/10/TX45/SK4X1T-WRENCH WS=6/8/10/TX45/SK4X1
