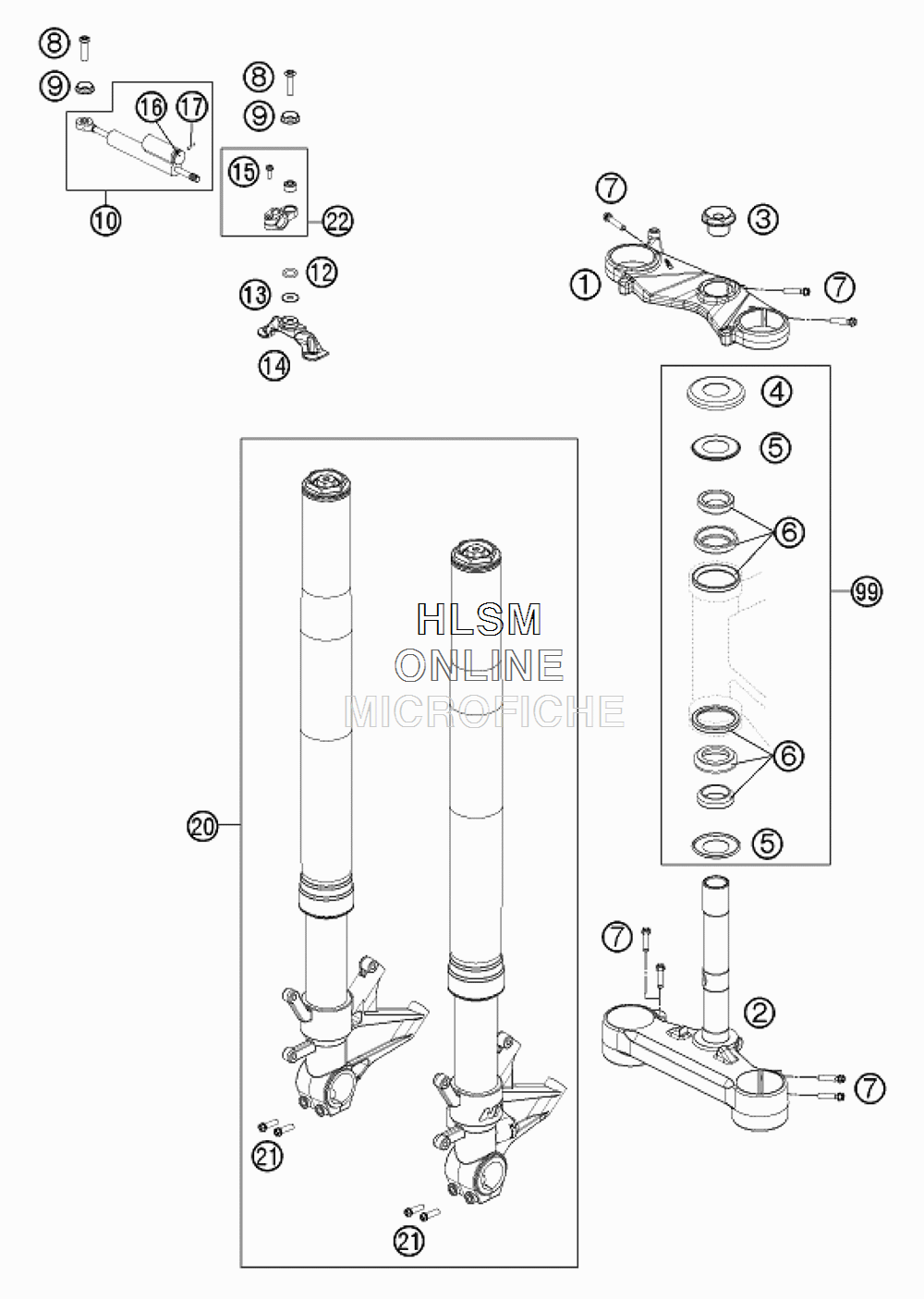

FRONT FORK TRIPLE CLAMP для Ktm 1190 RC8 R WHITE - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    6930103402833S TOP FORK PLATE 210/ 28 (BLACK)
    TOP FORK PLATE 210/ 28 (BLACK)
  • 2
    6910103202833S LOWER TRIPLE CLAMP CPL. (BLACK)
    LOWER TRIPLE CLAMP CPL. (BLACK)
  • 3
    6900103600001 STEERING HEAD SCREW
    STEERING HEAD SCREW
  • 4
    69001086100 PROT. RING STEER. HEAD BEARING
    PROT. RING STEER. HEAD BEARING
  • 5
    69001084000 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 6
    69001081000 STEERING HEAD BEARING CPL.
    STEERING HEAD BEARING CPL.
  • 7
    0025080356 HH COLLAR SCREW M8X35
    HH COLLAR SCREW M8X35
  • 8
    0019080356 COUNTERSUNK SCREW ISA45 M8X35
    COUNTERSUNK SCREW ISA45 M8X35
  • 9
    69012005050 SPECIAL WASHER ALU 8X22MM
    SPECIAL WASHER ALU 8X22MM
  • 10
    16181L01S01 STEERING DAMPER
    STEERING DAMPER
  • 12
    0770120025 O-RING 12X2,5 NBR 70
    O-RING 12X2,5 NBR 70
  • 13
    69012060060 WASHER F. STEERING DAMPER
    WASHER F. STEERING DAMPER
  • 14
    6901200600033 STEERING DAMPER SUPPORT
    STEERING DAMPER SUPPORT
  • 15
    0025050166 HH COLLAR SCREW M5X16
    HH COLLAR SCREW M5X16
  • 16
    15080122 ADJUSTING GEAR
    ADJUSTING GEAR
  • 17
    15080106 ADJUSTING SCREW M3X12
    ADJUSTING SCREW M3X12
  • 20
    05187K0701 FORK KTM
    FORK KTM
  • 21
    0025080306 HH COLLAR SCREW M8X30
    HH COLLAR SCREW M8X30
  • 22
    15080120S CLAMP CPL. + SCREW
    CLAMP CPL. + SCREW
  • 99
    69001081044 STEERING HEAD REP . KIT
    STEERING HEAD REP . KIT
