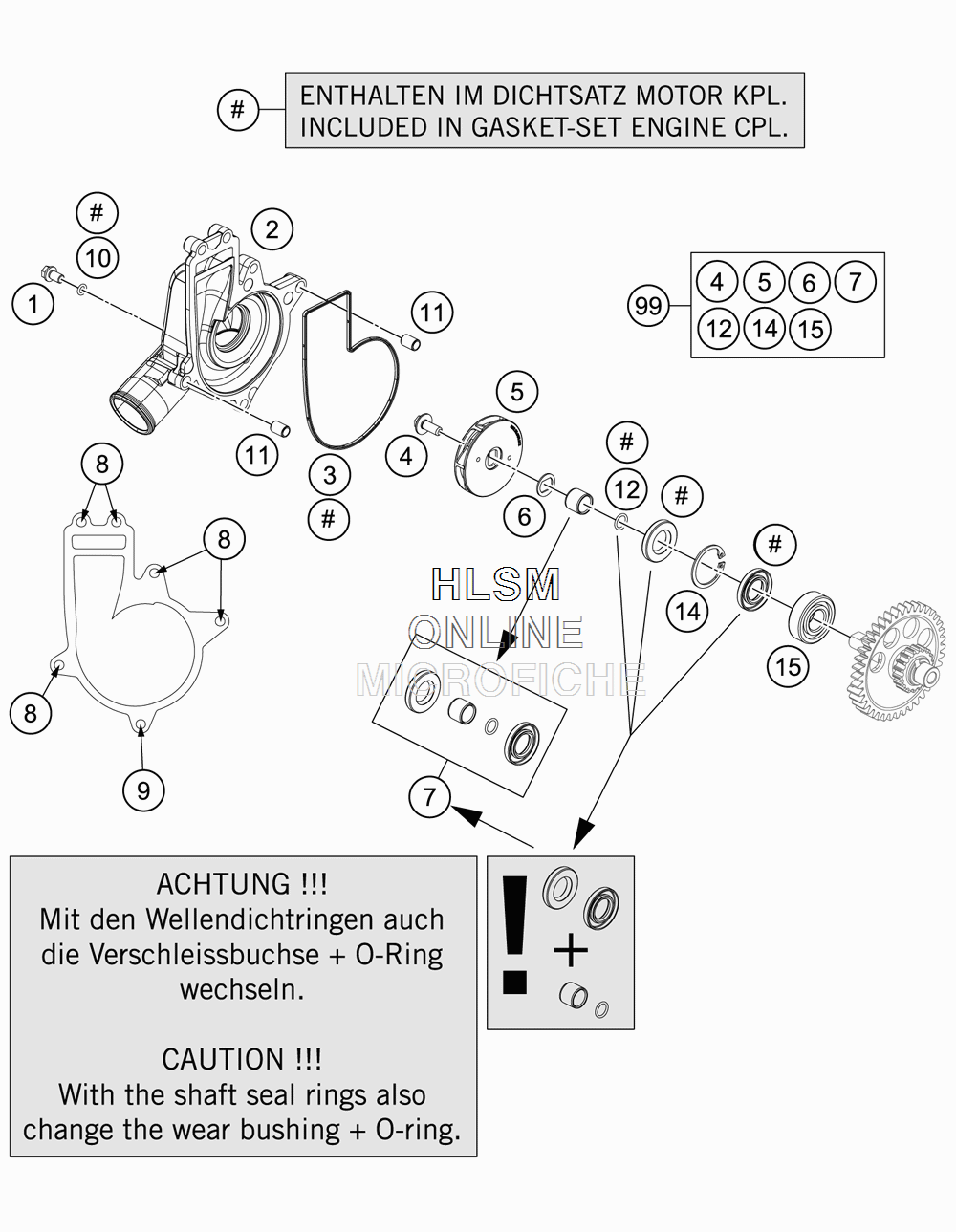

WATER PUMP для Ktm 1190 ADVENTURE R ABS - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0025060106 HH COLLAR SCREW M6X10 TX30
    HH COLLAR SCREW M6X10 TX30
  • 2
    6033505200041 WATER PUMP COVER CPL.
    WATER PUMP COVER CPL.
  • 3
    61235061000 MOLDED RING WATER PUMP COV .
    MOLDED RING WATER PUMP COV .
  • 4
    0024060136 HH COLLAR SCREW M6X13 TX30
    HH COLLAR SCREW M6X13 TX30
  • 5
    60335055100 WATER PUMP WHEEL CPL.
    WATER PUMP WHEEL CPL.
  • 6
    60035055150 FORM WASHER 16X1 NIRO
    FORM WASHER 16X1 NIRO
  • 7
    61235065244 WEAR BUSHING WITH SEAL RING
    WEAR BUSHING WITH SEAL RING
  • 8
    0025060456 HH COLLAR SCREW M6X45 TX30
    HH COLLAR SCREW M6X45 TX30
  • 9
    0025060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 10
    0770050012 O-RING 5,0X1,2 NBR 70
    O-RING 5,0X1,2 NBR 70
  • 11
    59030023000 DOWEL 6X8X11,5
    DOWEL 6X8X11,5
  • 12
    07700900151 O-RING 9X1,5 V80 SH
    O-RING 9X1,5 V80 SH
  • 14
    04720300121 CIRCLIP DIN0472-30X1 ,2 NIRO
    CIRCLIP DIN0472-30X1 ,2 NIRO
  • 15
    0412153511 CYL.ROLLE R BEAR. NJ202 ECP C3
    CYL.ROLLE R BEAR. NJ202 ECP C3
  • 99
    60335055110 WATER PUMP REP. KIT
    WATER PUMP REP. KIT
