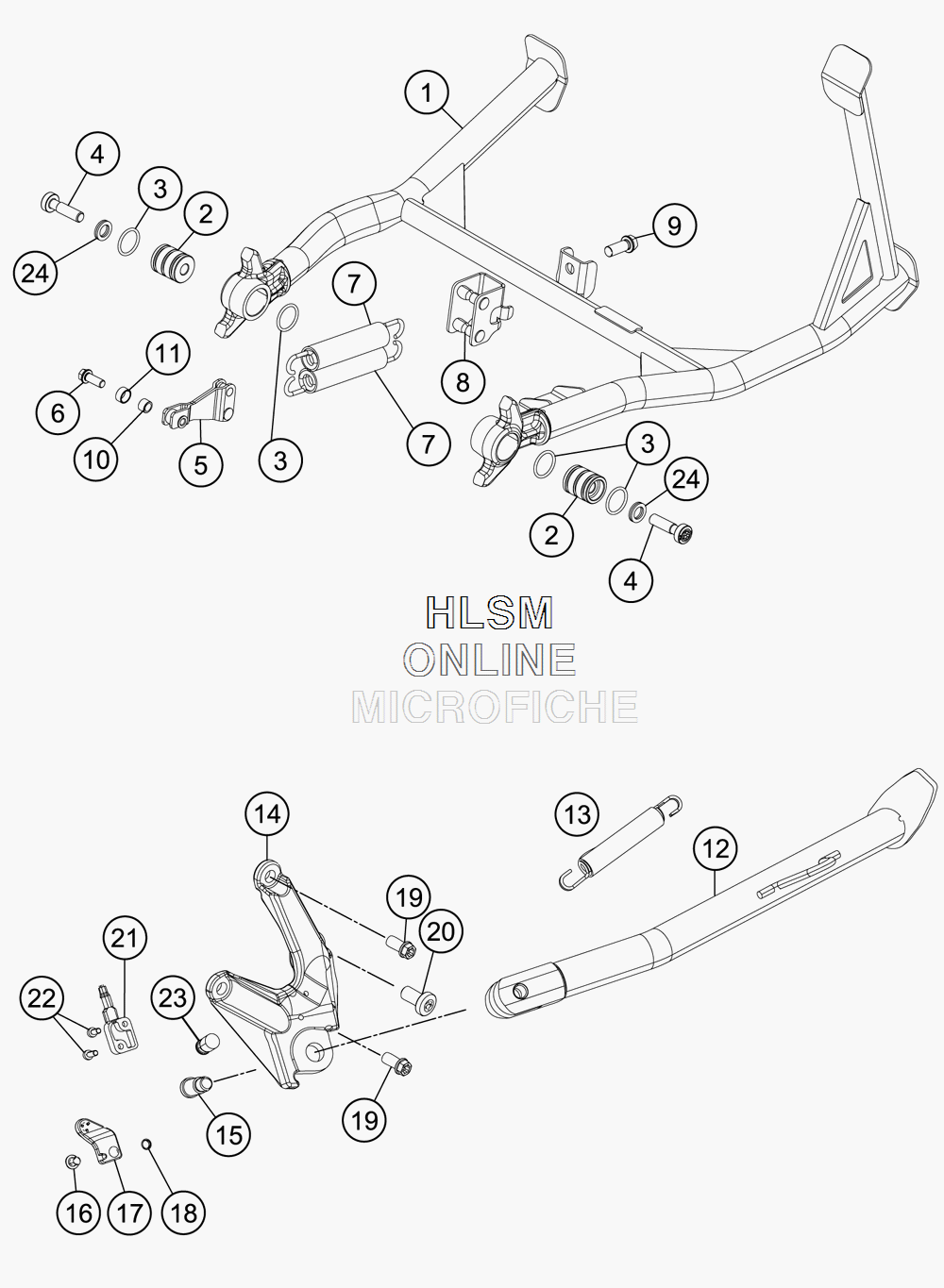

SIDE- CENTER STAND для Ktm 1190 ADVENTURE R ABS - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    6030302210030 CENTER STAND
    CENTER STAND
  • 2
    60303022007 BUSHING SUPPOR T CENTRAL
    BUSHING SUPPOR T CENTRAL
  • 3
    0770180020 O-RING 18,00X2,00 NBR 70
    O-RING 18,00X2,00 NBR 70
  • 4
    0035080356S SCREW M8X35 ISA45 SS
    SCREW M8X35 ISA45 SS
  • 5
    60303022025 SPRING SUPPOR T FRONT CPL.
    SPRING SUPPOR T FRONT CPL.
  • 6
    0025060166 HH COLLAR SCREW M6X16 TX30
    HH COLLAR SCREW M6X16 TX30
  • 7
    60303030100 SIDESTAND SPRING L=118MM
    SIDESTAND SPRING L=118MM
  • 8
    60303022026 SPRING SUPPOR T REAR CPL.
    SPRING SUPPOR T REAR CPL.
  • 9
    0025080206 HH COLLAR SCREW M8X20 TX40
    HH COLLAR SCREW M8X20 TX40
  • 10
    60303022031 BUSHING SPRINGSUPPOR T FRONT
    BUSHING SPRINGSUPPOR T FRONT
  • 11
    60303022032 BUSHING SPRING SUPPOR T FRONT
    BUSHING SPRING SUPPOR T FRONT
  • 12
    6030302310030 SIDE STAND CPL.
    SIDE STAND CPL.
  • 13
    60303024100 SIDE STAND SPRING
    SIDE STAND SPRING
  • 14
    6030302610033S SIDE STAND BRACKET
    SIDE STAND BRACKET
  • 15
    62503027200 SCREW FOR SIDE STAND M10X31,2
    SCREW FOR SIDE STAND M10X31,2
  • 16
    0902060083 AH OV AL SCREW ISO 7380 M 6X8
    AH OV AL SCREW ISO 7380 M 6X8
  • 17
    60303029050 MAGNET HOLDER
    MAGNET HOLDER
  • 18
    60303029051 BUSHING MAGNET HOLDER
    BUSHING MAGNET HOLDER
  • 19
    0025080166 HH COLLAR SCREW M8X16 TX40
    HH COLLAR SCREW M8X16 TX40
  • 20
    0035100309S AH-COLLAR SCREW M10X30 ISA45
    AH-COLLAR SCREW M10X30 ISA45
  • 21
    61011045000 SIDE STAND SENSOR
    SIDE STAND SENSOR
  • 22
    0084040123 CYL.HEAD SCREW DIN84A M4X12
    CYL.HEAD SCREW DIN84A M4X12
  • 23
    60303023111 RET AINING BOL T
    RET AINING BOL T
  • 24
    60303022035 PAIR OF WASHERS M8
    PAIR OF WASHERS M8
