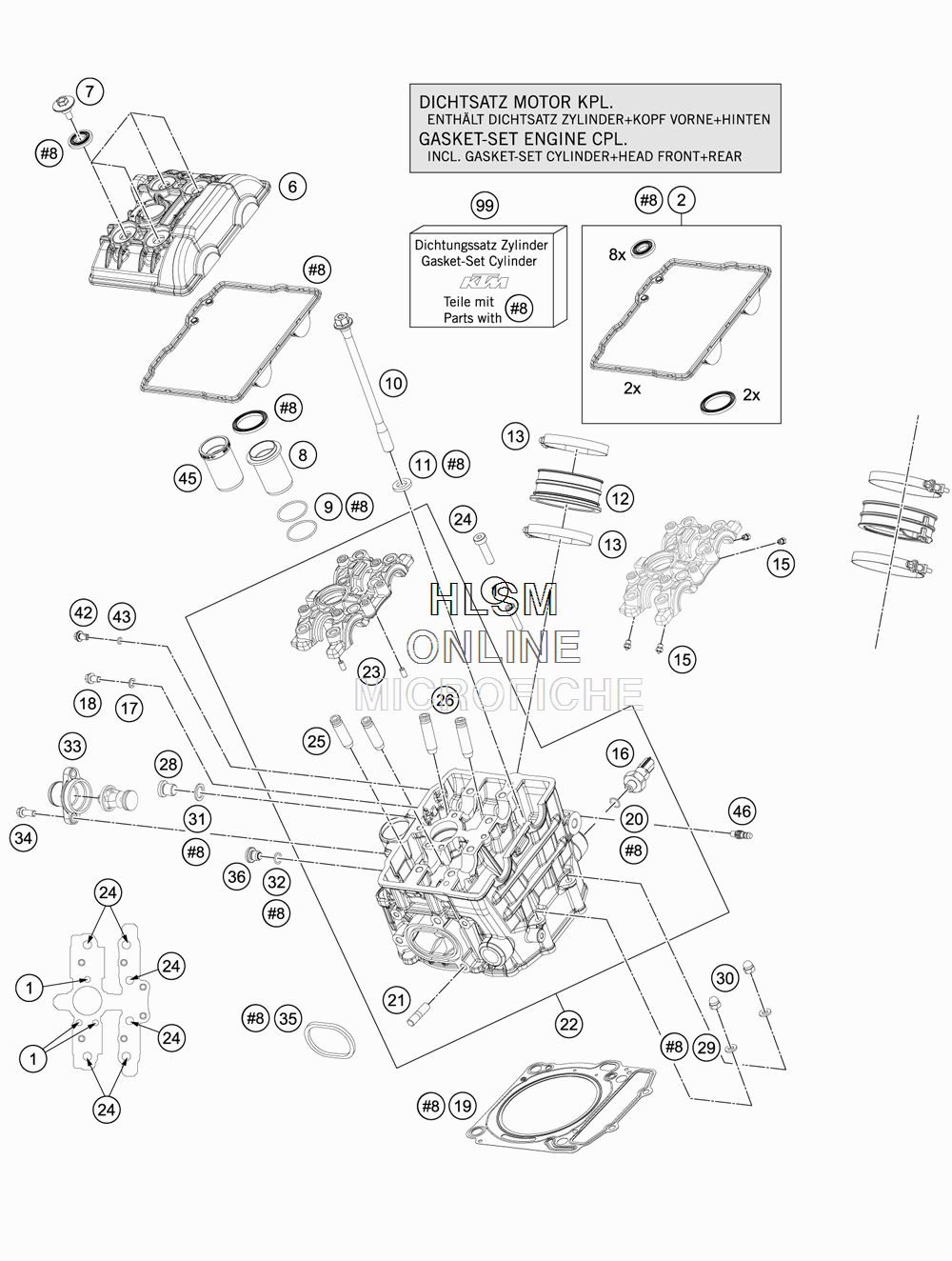

CYLINDER HEAD FRONT для Ktm 1190 ADVENTURE R ABS - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0912060255 AH SCREW DIN0912-M 6X25 10.9
    AH SCREW DIN0912-M 6X25 10.9
  • 2
    61236099100 VALVE COVER GASKET SET
    VALVE COVER GASKET SET
  • 6
    6123605210033 VALVE COVER FRONT
    VALVE COVER FRONT
  • 7
    60036052020 COLLAR SCREW M 6 WS=10
    COLLAR SCREW M 6 WS=10
  • 8
    60336075000 SPARK PLUG SHAFT
    SPARK PLUG SHAFT
  • 9
    0770298178 O-RING 29,87X1,78 VITON
    O-RING 29,87X1,78 VITON
  • 10
    61236079000 CYLINDER HEAD SCREW
    CYLINDER HEAD SCREW
  • 11
    61236079050 WASHER 11,1X20X3
    WASHER 11,1X20X3
  • 12
    61336044000 INTAKE BOOT
    INTAKE BOOT
  • 13
    61336048000 HOSE CLAMP GEMI 75
    HOSE CLAMP GEMI 75
  • 15
    60030063050 OIL JET 50
    OIL JET 50
  • 16
    61238091000 OIL PRESSURE SWITCH "BITRON"
    OIL PRESSURE SWITCH "BITRON"
  • 17
    0603061001 CU-SEAL RING DIN7603-6X10X 1
    CU-SEAL RING DIN7603-6X10X 1
  • 18
    0025060106 HH COLLAR SCREW M6X10 TX30
    HH COLLAR SCREW M6X10 TX30
  • 19
    69130036000 CYLINDER HEAD GASKET MLS
    CYLINDER HEAD GASKET MLS
  • 20
    0770080015 O-RING 8,00X1,5 NBR 70
    O-RING 8,00X1,5 NBR 70
  • 21
    0835080165 STUD M 8X16 10.9
    STUD M 8X16 10.9
  • 22
    6033602010024 CYL. HEAD CPL. FRONT
    CYL. HEAD CPL. FRONT
  • 23
    0402050980 NEEDLE ROLLER DIN5402 5X9,8
    NEEDLE ROLLER DIN5402 5X9,8
  • 24
    0984080305 AH SCREW DIN7984-M 8X30 10.9
    AH SCREW DIN7984-M 8X30 10.9
  • 25
    61236026001 VALVE GUIDE EXHAUST
    VALVE GUIDE EXHAUST
  • 26
    61236025001 VALVE GIUDE INTAKE 6MM
    VALVE GIUDE INTAKE 6MM
  • 28
    0908120153 PLUG DIN0908-M12X1, 5
    PLUG DIN0908-M12X1, 5
  • 29
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 30
    61230045000 CAP NUT M6 ST AINLESS STEEL
    CAP NUT M6 ST AINLESS STEEL
  • 31
    58038022000 CU-SEAL RING DIN7603-12X18 X1,5
    CU-SEAL RING DIN7603-12X18 X1,5
  • 32
    07700900151 O-RING 9X1,5 V80 SH
    O-RING 9X1,5 V80 SH
  • 33
    61235019100 WATER CONNECTION CPL.
    WATER CONNECTION CPL.
  • 34
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 35
    69005005100 EXHAUST PIPE FLANGE GASKET
    EXHAUST PIPE FLANGE GASKET
  • 36
    77336056095 SCREW PLUG
    SCREW PLUG
  • 42
    59036006090 VENT SCREW M6X10 CPL.
    VENT SCREW M6X10 CPL.
  • 43
    0770050012 O-RING 5,0X1,2 NBR 70
    O-RING 5,0X1,2 NBR 70
  • 45
    60236075000 INSER T SPARK-PLUG SHAFT
    INSER T SPARK-PLUG SHAFT
  • 46
    60036023200 V ACUUM CONNECTION M6/0.75MM
    V ACUUM CONNECTION M6/0.75MM
  • 99
    69130097000 GASKET KIT CYLINDER+HEAD FRONT-REAR
    GASKET KIT CYLINDER+HEAD FRONT-REAR
