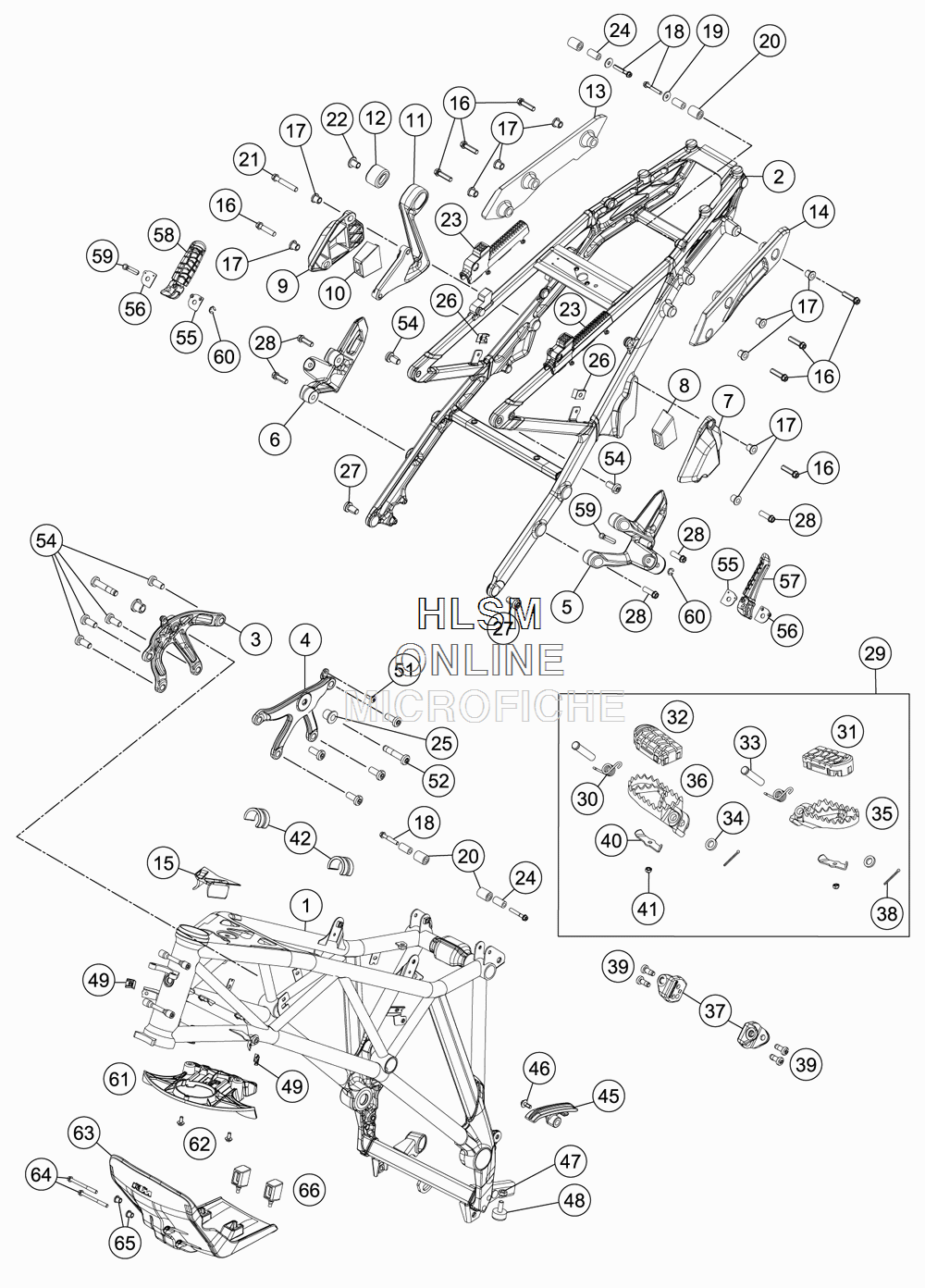

FRAME для Ktm 1190 ADVENTURE R ABS - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    6030300120004 FRAME "603 OA" ORANGE
    FRAME "603 OA" ORANGE
  • 2
    6030300200033 SUB FRAME
    SUB FRAME
  • 3
    6030300600033S ENGINE SUPPOR T R/S BLACK
    ENGINE SUPPOR T R/S BLACK
  • 4
    6030300500033S ENGINE SUPPOR TL/S BLACK
    ENGINE SUPPOR TL/S BLACK
  • 5
    6030304800033S FOOTREST SUP . REAR L/S BLACK
    FOOTREST SUP . REAR L/S BLACK
  • 6
    6030304900033S FOOTREST SUP . REAR R/S BLACK
    FOOTREST SUP . REAR R/S BLACK
  • 7
    60312010050 SUITCASE HOOK L/S
    SUITCASE HOOK L/S
  • 8
    60312010060 DAMPING RUBBER SUITCASE HOOK
    DAMPING RUBBER SUITCASE HOOK
  • 9
    60312011050 SUITCASE HOOK R/S
    SUITCASE HOOK R/S
  • 10
    60312011060 DAMPING RUBBER SUITCASE HOOK
    DAMPING RUBBER SUITCASE HOOK
  • 11
    6030508400033S EXHAUST BRACKET
    EXHAUST BRACKET
  • 12
    61305068000 DAMPING RUBBER
    DAMPING RUBBER
  • 13
    60312021250 CASE BAR R/S
    CASE BAR R/S
  • 14
    60312020250 CASE BAR L/S
    CASE BAR L/S
  • 15
    60303003010 STEARING HEAD COVER
    STEARING HEAD COVER
  • 16
    0025080356 HH COLLAR SCREW M8X35 TX40
    HH COLLAR SCREW M8X35 TX40
  • 17
    60303002058 SPACER BUSHING 13X17X8,2
    SPACER BUSHING 13X17X8,2
  • 18
    0025060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
  • 19
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 20
    60307048000 RUBBER SEA T -CONT ACT SURF ACE
    RUBBER SEA T -CONT ACT SURF ACE
  • 21
    0025080506 HH COLLAR SCREW M8X50 TX40
    HH COLLAR SCREW M8X50 TX40
  • 22
    60305069000 BUSHING
    BUSHING
  • 23
    60307040041 PLATE RUBBER SEA T
    PLATE RUBBER SEA T
  • 24
    60307049000 BUSH 6.2X12X21.5
    BUSH 6.2X12X21.5
  • 25
    60303007000 SPACER BUSH ENGINE SUPPOR T
    SPACER BUSH ENGINE SUPPOR T
  • 26
    54603048100 RANGE CHANGE MET AL NUT M6
    RANGE CHANGE MET AL NUT M6
  • 27
    0035100209 AH-COLLAR SCREW M10X20 ISA45
    AH-COLLAR SCREW M10X20 ISA45
  • 28
    0025080256 HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 29
    60003040133 FOOTPEG LS+RS CPL.
    FOOTPEG LS+RS CPL.
  • 30
    54603041000 FOOTREST SPRING L/S & R/S
    FOOTREST SPRING L/S & R/S
  • 31
    60003040010 FOOTREST RUBBER FRONT L/S
    FOOTREST RUBBER FRONT L/S
  • 32
    60003041010 FOOTREST RUBBER FRONT R/S
    FOOTREST RUBBER FRONT R/S
  • 33
    54803044000 PIN FOR FOOT PED 51.5X9.8 MM
    PIN FOR FOOT PED 51.5X9.8 MM
  • 34
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 35
    59003040250 FOOT PEG L/S SIL VER
    FOOT PEG L/S SIL VER
  • 36
    59003041250 FOOT PEG R/S SIL VER
    FOOT PEG R/S SIL VER
  • 37
    6030310109533S FOOTREST MOUNTING
    FOOTREST MOUNTING
  • 38
    0094032253 PIN DIN0094-3,2X25 STEEL
    PIN DIN0094-3,2X25 STEEL
  • 39
    0025080166S HH COLLAR SCREW M8X16 TX40
    HH COLLAR SCREW M8X16 TX40
  • 40
    60003044010 CLOSING P ANEL FRONT L/S R/S
    CLOSING P ANEL FRONT L/S R/S
  • 41
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 42
    61007014000 SPACER FUEL TANK
    SPACER FUEL TANK
  • 45
    60303070000 CHAIN GUIDE
    CHAIN GUIDE
  • 46
    0024060156 HH COLLAR SCREW M6X15 TX30
    HH COLLAR SCREW M6X15 TX30
  • 47
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 48
    58303070100 BUMP RUBBER M8X25MM
    BUMP RUBBER M8X25MM
  • 49
    54603048200 RANGE CHANGE MET AL NUT M5
    RANGE CHANGE MET AL NUT M5
  • 51
    69008021160 SPECIAL SCREW M5X12
    SPECIAL SCREW M5X12
  • 52
    0035100509S AH-COLLAR SCREW M10X50 ISA45
    AH-COLLAR SCREW M10X50 ISA45
  • 54
    0035100249 AH-COLLAR SCREW M10X24 ISA45
    AH-COLLAR SCREW M10X24 ISA45
  • 55
    60003152000 ENGAGE P ANEL FOOTREST L/S
    ENGAGE P ANEL FOOTREST L/S
  • 56
    60003052000 ENGAGE P ANEL FOOTREST R/S
    ENGAGE P ANEL FOOTREST R/S
  • 57
    60003050000 FOOTREST CPL. L/S REAR
    FOOTREST CPL. L/S REAR
  • 58
    60003051000 FOOTREST CPL. R/S REAR
    FOOTREST CPL. R/S REAR
  • 59
    60003044100 BOL T FOR FOOTREST REAR
    BOL T FOR FOOTREST REAR
  • 60
    0799060003 TAB WASHER DIN6799-RS 6,0
    TAB WASHER DIN6799-RS 6,0
  • 61
    60308024000 TRIPLE CLAMP COVER LOWER SIDE
    TRIPLE CLAMP COVER LOWER SIDE
  • 62
    0024060136 HH COLLAR SCREW M6X13 TX30
    HH COLLAR SCREW M6X13 TX30
  • 63
    6030319000030 SKID PLATE ADV
    SKID PLATE ADV
  • 64
    0025060406 HH COLLAR SCREW M6X40 TX30
    HH COLLAR SCREW M6X40 TX30
  • 65
    45239060050 COLLAR BUSHING 6,3X8X13X9,5
    COLLAR BUSHING 6,3X8X13X9,5
  • 66
    60003096000 VIBRATION DAMPER
    VIBRATION DAMPER
