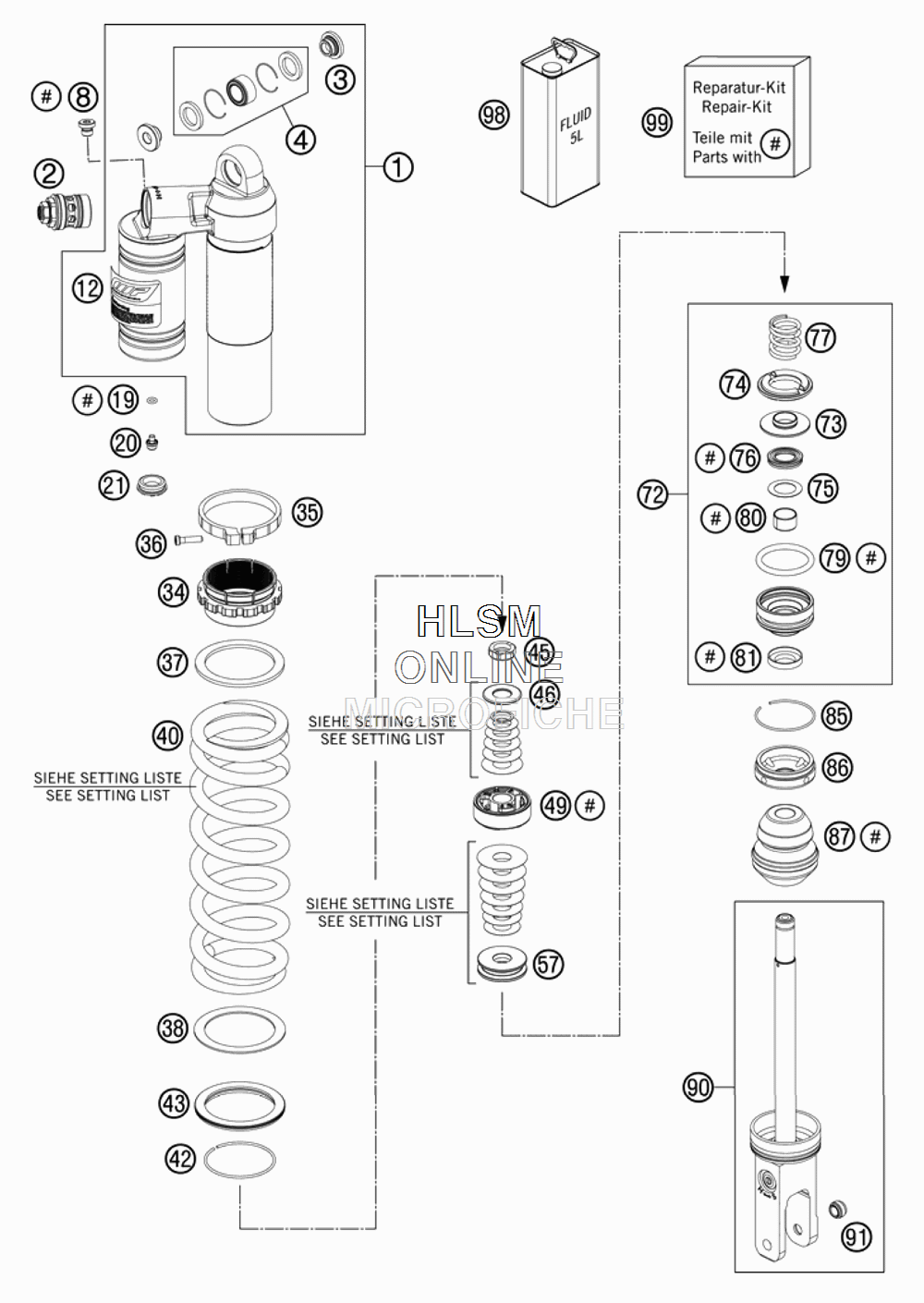

SHOCK ABSORBER DISASSEMBLED для Ktm 350 XC-F - 2013 года выпуска`
-
№АртикулНазвание
-
150180944S1 MONOSHOCK UPPER PART CPL.MONOSHOCK UPPER PART CPL.
-
250180213S17 DCC COMPR.DAMP.CON.DCC COMPR.DAMP.CON.
-
346180010 BUSH KGW 10X24BUSH KGW 10X24
-
4R12012 REP. KIT BEAR./SEAL UP.REP. KIT BEAR./SEAL UP.
-
850180095 BLEED PLUG R 1/8BLEED PLUG R 1/8
-
1252000087 STICKER WP MONOSHOCKSTICKER WP MONOSHOCK
-
1946810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
2036120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
2146811208 RUBBER CAP "DO NOT OPEN"RUBBER CAP "DO NOT OPEN"
-
3450180938 ADJUSTING NUT PLASTICADJUSTING NUT PLASTIC
-
3550180937 TENSIONING RING D64 H10TENSIONING RING D64 H10
-
3614460042 ALLENHEAD SCREW M5 L=20 STAINLALLENHEAD SCREW M5 L=20 STAINL
-
3750180965 SPACER RING SPRING 61,3X78X3SPACER RING SPRING 61,3X78X3
-
3850180793 SPACER RING ADJUSTING NUTSPACER RING ADJUSTING NUT
-
4091210081S SPRING 260 48 N/MM ORANGESPRING 260 48 N/MM ORANGE
-
4091210082S SPRING 260 51N/MM D11,25 ORANGESPRING 260 51N/MM D11,25 ORANGE
-
4091210083S SPRING 260 54N/MM D11,5 ORANGESPRING 260 54N/MM D11,5 ORANGE
-
4091210084S SPRING 260 57N/MM D11,75 ORANGESPRING 260 57N/MM D11,75 ORANGE
-
4091210085S SPRING 260 45N/MM ORANGESPRING 260 45N/MM ORANGE
-
4091210089S SPRING 260 60 N/MM ORANGESPRING 260 60 N/MM ORANGE
-
4250180273 CIRCLIP 58,2X2CIRCLIP 58,2X2
-
4350180824 VALVE SPRING D80 CLOSEDVALVE SPRING D80 CLOSED
-
4550180141 PISTON ROD NUT M16X1PISTON ROD NUT M16X1
-
4650180836 REBOUND DISC 16X34 T2 H0REBOUND DISC 16X34 T2 H0
-
4950180786S PISTON D50PISTON D50
-
5750180961 REBOUND DISC D16X43 H12REBOUND DISC D16X43 H12
-
7250180603SA ADAPTER D50 H28 CPL.ADAPTER D50 H28 CPL.
-
7350180800 SPRING RINGSPRING RING
-
7450180798 REBOUND RUBBERREBOUND RUBBER
-
7550180604 SHIM D29,75 X D19 X T0,4SHIM D29,75 X D19 X T0,4
-
7650180605S SEAL D18X30X5SEAL D18X30X5
-
7750180780 REBOUND SPRINGREBOUND SPRING
-
7950180103 O-RING 41X5O-RING 41X5
-
8050180974 DU-BUSHING 18X20X12DU-BUSHING 18X20X12
-
8150180606 DUST T SEAL 1828DUST T SEAL 1828
-
8550180126 CIRCLIP 53X1,75CIRCLIP 53X1,75
-
8650180626 RESERVOIR CAP D=50 H=10RESERVOIR CAP D=50 H=10
-
8750180775 BUMP RUBBERBUMP RUBBER
-
9050180773SA1 MONOSHOCK BOTTOM PART CPL.MONOSHOCK BOTTOM PART CPL.
-
9146811205 ADAPTOR-BUSH M10X1,50, D=15ADAPTOR-BUSH M10X1,50, D=15
-
9850180751S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
-
99R12020 REPAIR KITREPAIR KIT
