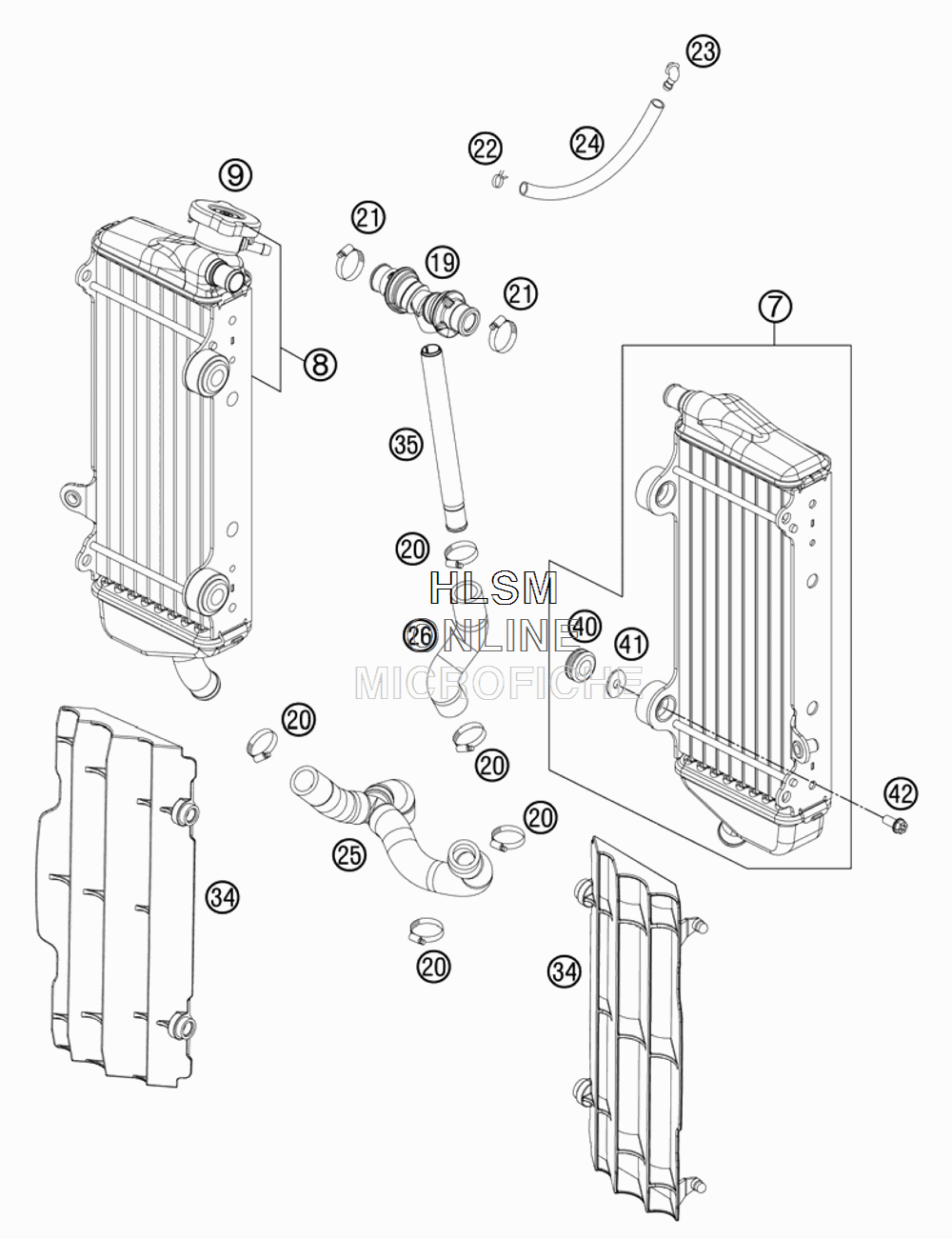

COOLING SYSTEM для Ktm 350 XC-F - 2013 года выпуска

  • №
    Артикул
    Название
  • 7
    77035007300 RADIATOR L/S "55623U"
    RADIATOR L/S "55623U"
  • 8
    77235008100 RADIATOR R/S "55637U"
    RADIATOR R/S "55637U"
  • 9
    77335016000 RADIATOR CAP SMALL 1,8 BAR
    RADIATOR CAP SMALL 1,8 BAR
  • 19
    77235071044 Y-CONNECOTOR CPL.
    Y-CONNECOTOR CPL.
  • 20
    10001020000 HOSE CLAMP GEMI 16-27
    HOSE CLAMP GEMI 16-27
  • 21
    42013037400 HOSE CLAMP NORMA 12/24
    HOSE CLAMP NORMA 12/24
  • 22
    59007017000 CLAMP YDNAC 10096F (9,6MM)
    CLAMP YDNAC 10096F (9,6MM)
  • 23
    50303089000 ANGLE PIECE
    ANGLE PIECE
  • 24
    50335030001 PVC-HOSE 6X9
    PVC-HOSE 6X9
  • 25
    77235025033 RADIATOR HOSE CPL.+Y-CONNECT.
    RADIATOR HOSE CPL.+Y-CONNECT.
  • 26
    77235024000 PREFORMED HOSE ENG. Y-CONNECT.
    PREFORMED HOSE ENG. Y-CONNECT.
  • 34
    7733503400004 RADIATOR PROTECTION L/S+R/S
    RADIATOR PROTECTION L/S+R/S
  • 34
    7733503400030 RADIATOR PROTECTION BLACK
    RADIATOR PROTECTION BLACK
  • 35
    77235073000 HOSE CONNECTOR L=172,5
    HOSE CONNECTOR L=172,5
  • 40
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 41
    77335001000 WASHER FOR RADIATOR
    WASHER FOR RADIATOR
  • 42
    0023060123 COLLAR SCREW M6X12TX
    COLLAR SCREW M6X12TX
