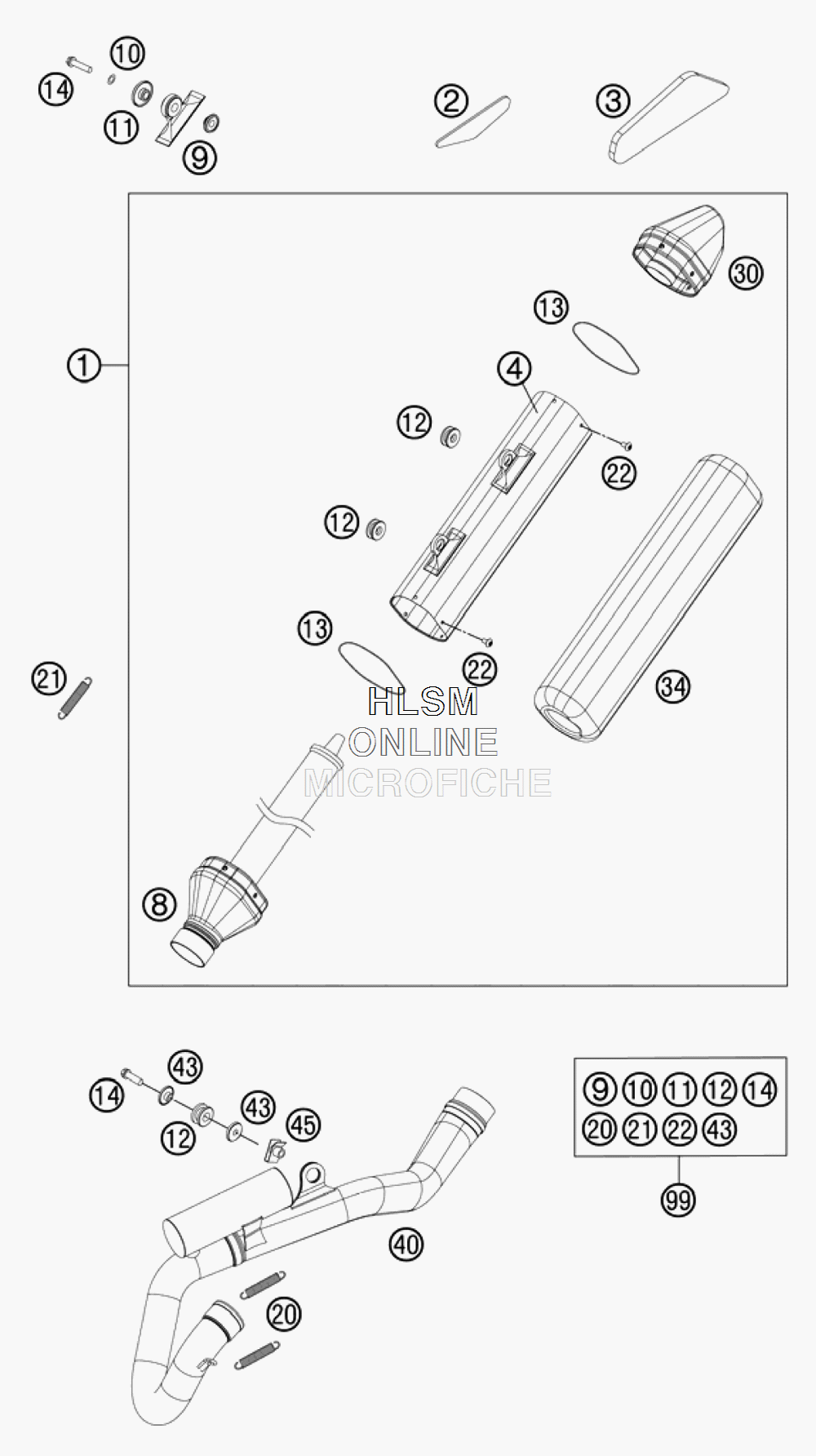

EXHAUST SYSTEM для Ktm 350 XC-F - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    77805079000 SILENCER
    SILENCER
  • 2
    77308013050 THERMAL PROTECTION FOIL
    THERMAL PROTECTION FOIL
  • 3
    77208013050 THERMAL PROTECTION FOIL
    THERMAL PROTECTION FOIL
  • 4
    77805079080 SILENCER HOUSING
    SILENCER HOUSING
  • 8
    77805079050 CONNECTING CAP CPL.
    CONNECTING CAP CPL.
  • 9
    77805069000 BUSHING 8.5X12X28X8.3
    BUSHING 8.5X12X28X8.3
  • 10
    0137060003 SPRING WASHER DIN0137-B 6
    SPRING WASHER DIN0137-B 6
  • 11
    77205169000 BUSHING 7.5X12X28X8.3 11
    BUSHING 7.5X12X28X8.3 11
  • 12
    77205068000 DAMP. COMPON. BLACK
    DAMP. COMPON. BLACK
  • 13
    0770740015 O-RING 74,00X1,50 FKM 75SH
    O-RING 74,00X1,50 FKM 75SH
  • 14
    0025060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
  • 20
    50305016000 TEN.SPRING L=62MM EY.MOVEABLE
    TEN.SPRING L=62MM EY.MOVEABLE
  • 21
    50305116000 TEN.SPRING L=75MM EY.MOVEABLE
    TEN.SPRING L=75MM EY.MOVEABLE
  • 22
    78105081010 SCREW TORX M5X10
    SCREW TORX M5X10
  • 30
    77105079060 ENDCAP CPL.
    ENDCAP CPL.
  • 34
    78905078700 ROCKWOOL PREFORMED
    ROCKWOOL PREFORMED
  • 40
    77805007000 EXHAUST MANIFOLD SX
    EXHAUST MANIFOLD SX
  • 43
    77805069000 BUSHING 8.5X12X28X8.3
    BUSHING 8.5X12X28X8.3
  • 45
    54603048000 RANGE CHANGE METAL NUT M8
    RANGE CHANGE METAL NUT M8
  • 99
    00050000814 EXHAUST PARTS KIT
    EXHAUST PARTS KIT
