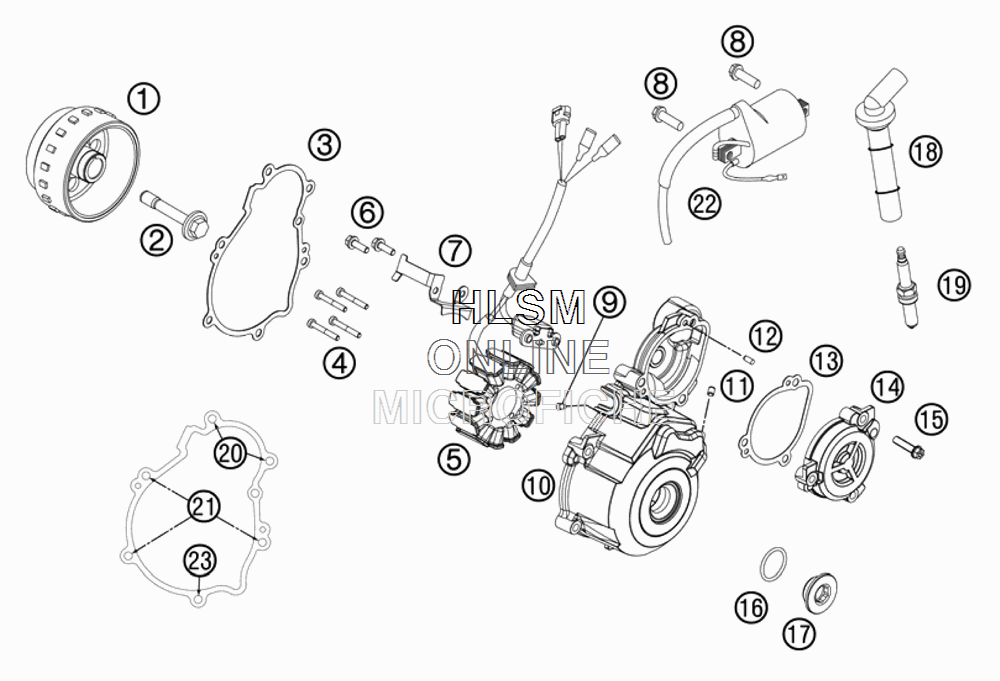

IGNITION SYSTEM для Ktm 350 XC-F - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    77239005100 ROTOR EFI
    ROTOR EFI
  • 2
    77339010100 FLYWHEEL SCREW
    FLYWHEEL SCREW
  • 3
    77530040000 IGNITION COVER GASKET
    IGNITION COVER GASKET
  • 4
    0012040303 AH SCREW DIN6912 M4X30
    AH SCREW DIN6912 M4X30
  • 5
    77239004000 STATOR
    STATOR
  • 6
    0025050166 HH COLLAR SCREW M5X16 TX30
    HH COLLAR SCREW M5X16 TX30
  • 7
    77230002050 WIRING RETAINING BRACKET
    WIRING RETAINING BRACKET
  • 8
    0025060166 HH COLLAR SCREW M6X16 TX30
    HH COLLAR SCREW M6X16 TX30
  • 9
    80030058060 OIL JET "60" M4
    OIL JET "60" M4
  • 10
    7723000200015 IGNITION COVER
    IGNITION COVER
  • 11
    0913050063 THREAD PIN DIN 913 M5X6
    THREAD PIN DIN 913 M5X6
  • 12
    0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8
    NEEDLE ROL.DIN5402 NRB 4X9,8
  • 13
    77240043000 GASKET TORQUE LIMITER
    GASKET TORQUE LIMITER
  • 14
    7723000201015 COVER TORQUE LIMITER
    COVER TORQUE LIMITER
  • 15
    0025060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 16
    07700240251 O-RING 24X2,5 VITON
    O-RING 24X2,5 VITON
  • 17
    7723000206030 FACTORY IGNITION COVER PLUG
    FACTORY IGNITION COVER PLUG
  • 18
    77239090000 SPARK PLUG CONNECTOR
    SPARK PLUG CONNECTOR
  • 19
    77239093000 PLUG NGK LMAR9AI - 8
    PLUG NGK LMAR9AI - 8
  • 20
    0025060506 HH COLLAR SCREW M6X50 TX30
    HH COLLAR SCREW M6X50 TX30
  • 21
    0025060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
  • 22
    58439006000 IGNITION COIL IG3826 KOKUSAN
    IGNITION COIL IG3826 KOKUSAN
  • 23
    0025060406 HH COLLAR SCREW M6X 40 TX30
    HH COLLAR SCREW M6X 40 TX30
