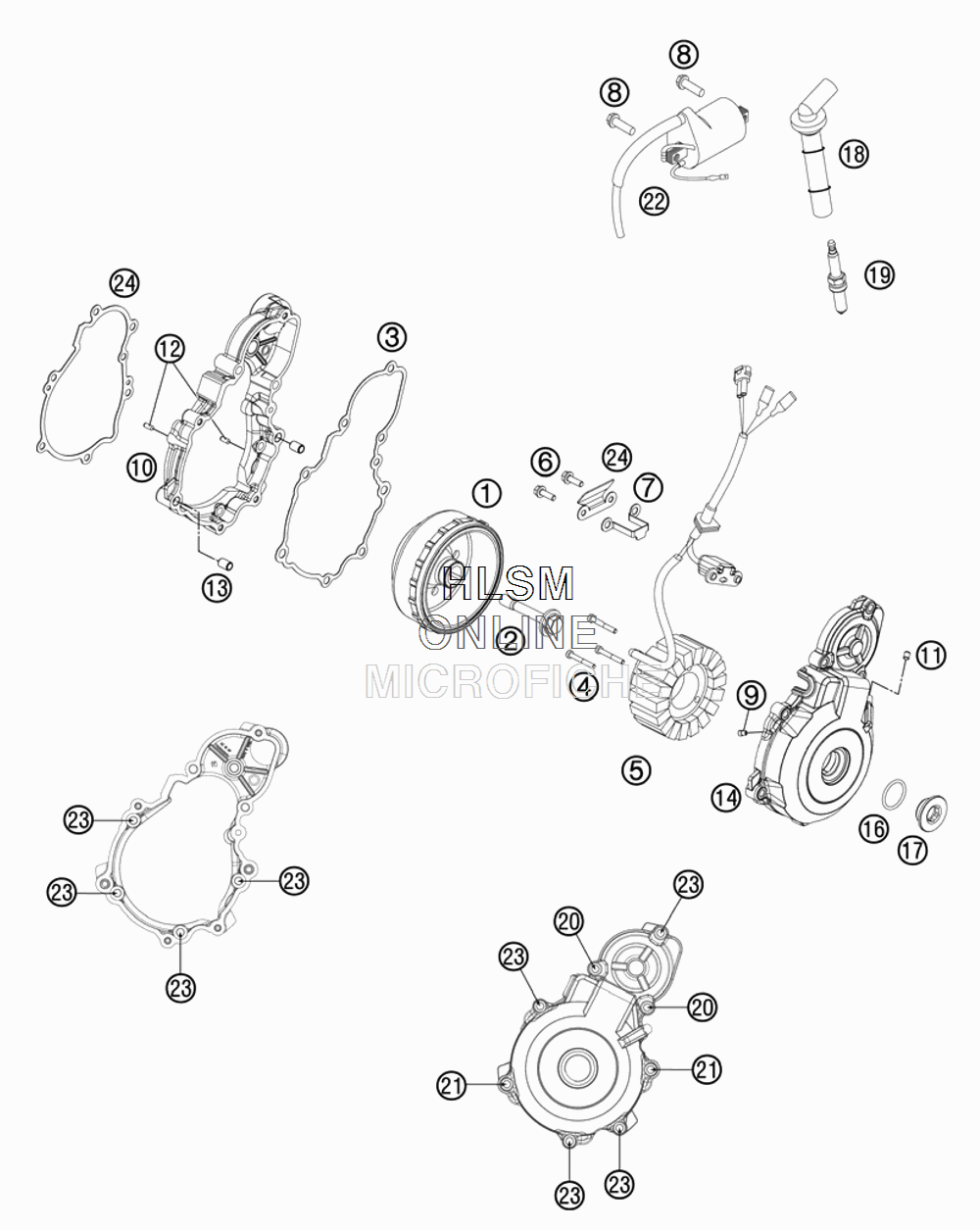

IGNITION SYSTEM для Ktm 350 XCF-W - 2012 года выпуска`

№

Артикул

Название
1

77539005000 ROTOR

ROTOR

119 530 ₽
2

77339010100 FLYWHEEL SCREW

FLYWHEEL SCREW

1 290 ₽
3

77530042000 IGNITION COVER GASKET

IGNITION COVER GASKET

3 190 ₽
4

0912050303 AH SCREW DIN0912-M 5X30

AH SCREW DIN0912-M 5X30

210 ₽
5

77539004000 STATOR

STATOR

52 160 ₽
6

0025050166 HH COLLAR SCREW M5X16

HH COLLAR SCREW M5X16

290 ₽
7

77530002050 CABLE TAB WASHER

CABLE TAB WASHER

4 240 ₽
8

0025060206 HH COLLAR SCREW M6X20

HH COLLAR SCREW M6X20

500 ₽
9

80030058060 OIL JET "60" M4

OIL JET "60" M4

2 800 ₽
10

7753000200015 IGNITION COVER INSIDE

IGNITION COVER INSIDE

18 490 ₽
11

0913050063 THREAD PIN DIN 913 M5X6

THREAD PIN DIN 913 M5X6

120 ₽
12

0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8

NEEDLE ROL.DIN5402 NRB 4X9,8

560 ₽
13

59030023000 DOWEL 6X8X11,5

DOWEL 6X8X11,5

910 ₽
14

7753001200015 IGNITION COVER

IGNITION COVER

35 430 ₽
16

07700240251 O-RING 24X2,5 VITON

O-RING 24X2,5 VITON

640 ₽
17

7723000206030 FACTORY IGNITION COVER PLUG

FACTORY IGNITION COVER PLUG

9 870 ₽
18

77239090000 SPARK PLUG CONNECTOR

SPARK PLUG CONNECTOR

7 830 ₽
19

77239093000 PLUG NGK LMAR9AI - 8

PLUG NGK LMAR9AI - 8

5 950 ₽
20

0025060506 HH COLLAR SCREW M6X50

HH COLLAR SCREW M6X50

640 ₽
21

0025060306 HH COLLAR SCREW M6X30

HH COLLAR SCREW M6X30

560 ₽
22

58439006000 IGNITIONCOIL IG3826 KOKUSAN

IGNITIONCOIL IG3826 KOKUSAN

19 420 ₽
23

0025060256 HH COLLAR SCREW M6X25

HH COLLAR SCREW M6X25

560 ₽
24

77530040000 IGNITION COVER GASKET

IGNITION COVER GASKET

3 040 ₽
