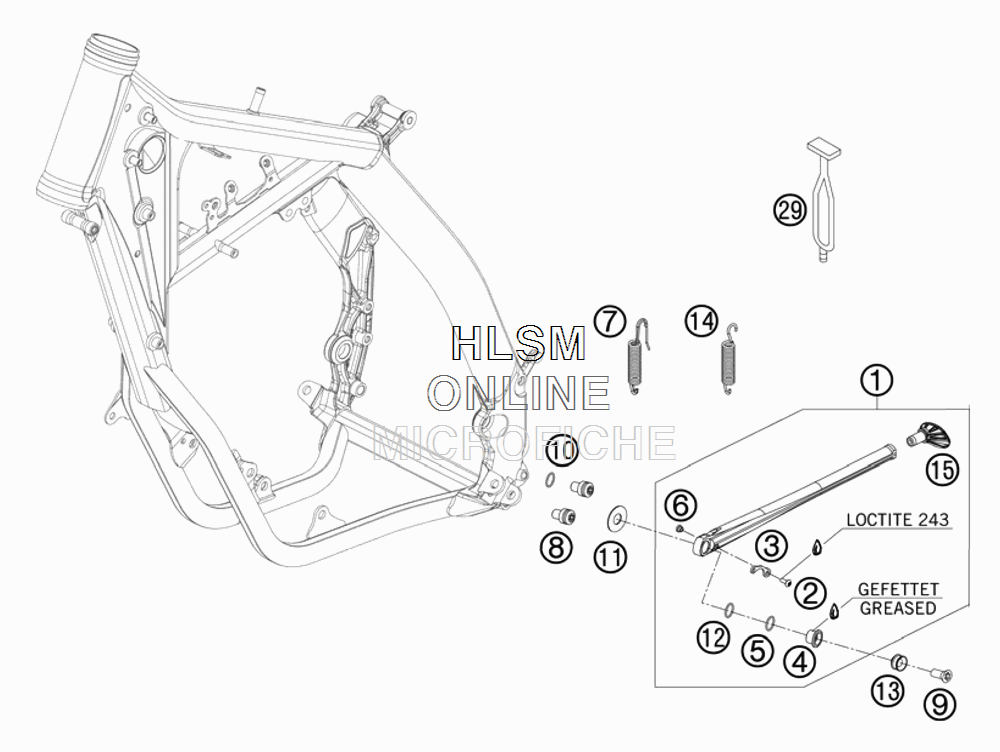

SIDE / CENTER STAND для Ktm 350 XCF-W - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    78003023044 SIDE STAND CPL.
    SIDE STAND CPL.
  • 2
    58605083014 SCREW M5X14 TORX 25
    SCREW M5X14 TORX 25
  • 3
    78003023090 SPRING BRACKET F. SIDE ST.
    SPRING BRACKET F. SIDE ST.
  • 4
    78003023080 SIDE STAND BUSHING
    SIDE STAND BUSHING
  • 5
    0770180020 O-RING 18,00X2,00 NBR 70
    O-RING 18,00X2,00 NBR 70
  • 6
    78003023070 SPACER BUSH. SPRING BRACKET
    SPACER BUSH. SPRING BRACKET
  • 7
    81203024000 SIDE STAND SPRING EYE MOVEABLE
    SIDE STAND SPRING EYE MOVEABLE
  • 8
    78003023182 SIDE STAND STOP SCREW M10X12
    SIDE STAND STOP SCREW M10X12
  • 9
    0019080266S COUNTER-SUNK SCREW ISA45 M8X26
    COUNTER-SUNK SCREW ISA45 M8X26
  • 9
    0025080306 HH COLLAR SCREW M8X30 (FOR EURO)
    HH COLLAR SCREW M8X30 (FOR EURO)
  • 10
    0770120020 O-RING 12,00X2,00 NBR 70
    O-RING 12,00X2,00 NBR 70
  • 11
    78003023083 WASHER F. SIDE STAND 12,2X29,5
    WASHER F. SIDE STAND 12,2X29,5
  • 12
    0770125015 O-RING 12,5X1,5 NBR
    O-RING 12,5X1,5 NBR
  • 13
    78003023081 SIDE STAND BUSHING (FOR EURO)
    SIDE STAND BUSHING (FOR EURO)
  • 14
    78003024100 SIDE STAND SPRING
    SIDE STAND SPRING
  • 15
    78003023055 STAND BASE
    STAND BASE
  • 29
    50303018000 RUBBER L=145MM
    RUBBER L=145MM
