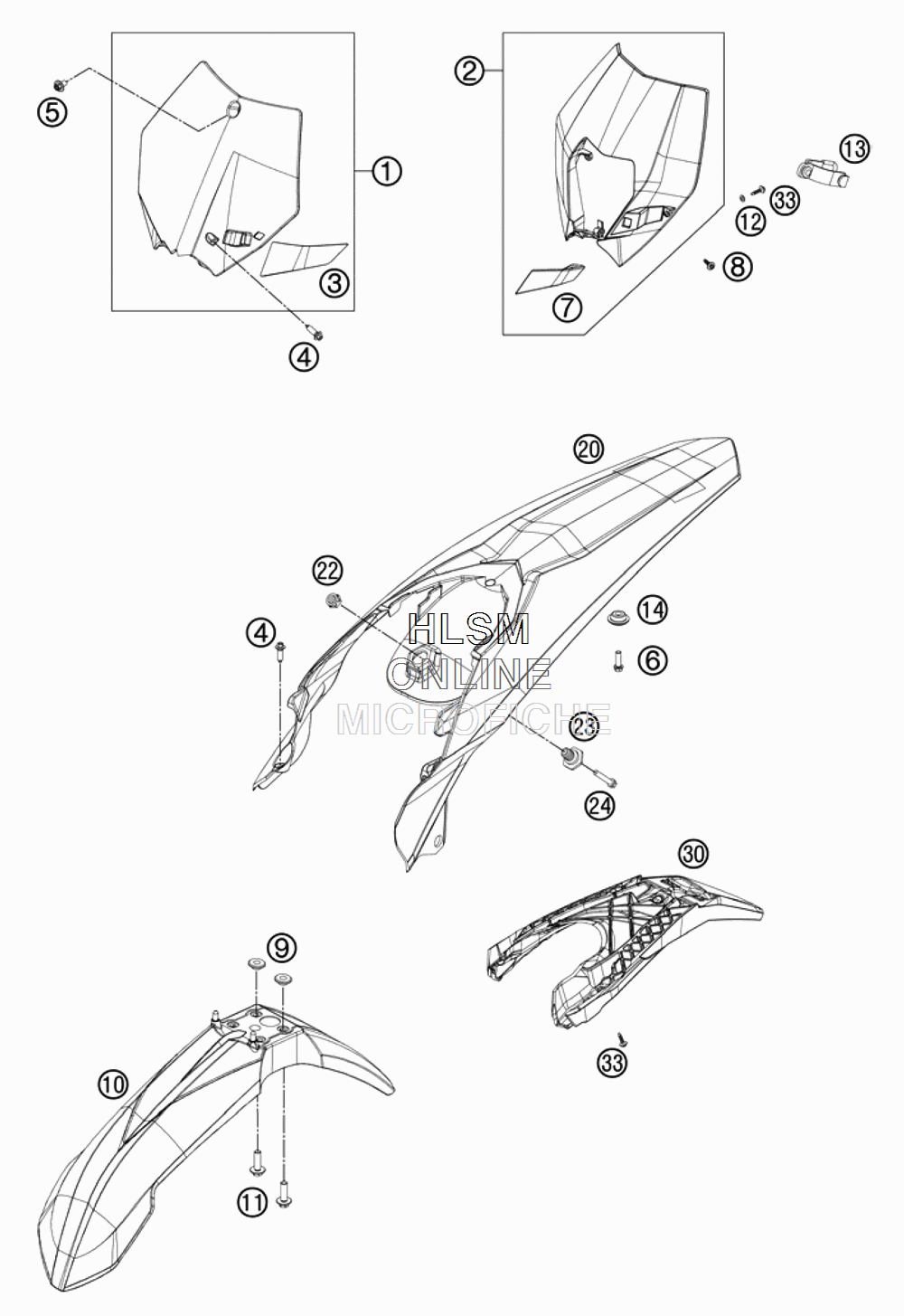

MASK FENDERS для Ktm 350 XCF-W - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    7730800704428 START NUMBER PLATE CPL. WHITE
    START NUMBER PLATE CPL. WHITE
  • 2
    7800800100028 HEAD LIGHT MASK WHITE
    HEAD LIGHT MASK WHITE
  • 3
    7730802200030 BRAKE HOSE GUIDE BLACK
    BRAKE HOSE GUIDE BLACK
  • 4
    0017060204 EJOT PT SCREW K60X20 ALU WS=6
    EJOT PT SCREW K60X20 ALU WS=6
  • 5
    0024060106 HH COLLAR SCREW M6X10
    HH COLLAR SCREW M6X10
  • 6
    0025050206 HH COLLAR SCREW M5X20
    HH COLLAR SCREW M5X20
  • 7
    7800802200028 BRAKE HOSE GUIDE WHITE
    BRAKE HOSE GUIDE WHITE
  • 8
    0081050181 SCREW FOR PLASTIC K50X18 T20
    SCREW FOR PLASTIC K50X18 T20
  • 9
    54808020000 SPACER BUSHING
    SPACER BUSHING
  • 10
    7730801000004 FRONT FENDER
    FRONT FENDER
  • 11
    0024060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 12
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 13
    50211086000 MASK RUBBER UFO WP
    MASK RUBBER UFO WP
  • 14
    77308013010 COLLAR BUSH. F.REAR FENDER
    COLLAR BUSH. F.REAR FENDER
  • 20
    7810801300004 REAR PART ORANGE
    REAR PART ORANGE
  • 22
    50314057050 COLLAR NUT M12X1/WS17 H=5MM
    COLLAR NUT M12X1/WS17 H=5MM
  • 23
    54807048000 BUSHING FOR SEAT FASTENING
    BUSHING FOR SEAT FASTENING
  • 24
    0025060256 HH COLLAR SCREW M6X25
    HH COLLAR SCREW M6X25
  • 30
    78108016000 NUMBER PLATE CARRIER TOP
    NUMBER PLATE CARRIER TOP
  • 33
    0017060203 EJOT PT SCREW K60X20
    EJOT PT SCREW K60X20
