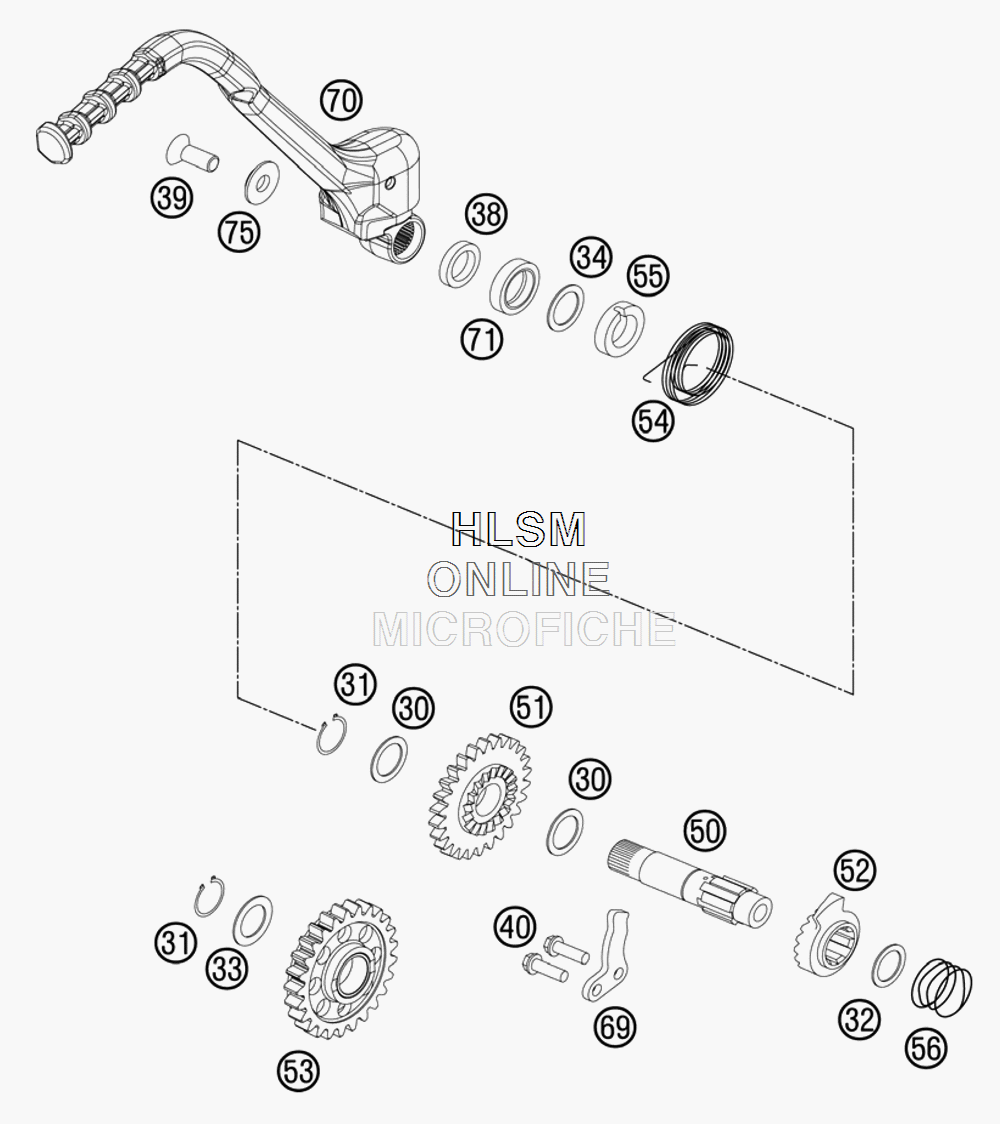

KICK STARTER для Ktm 350 XCF-W - 2012 года выпуска

  • №
    Артикул
    Название
  • 30
    50333030000 STOP DISK 17,2X24X1
    STOP DISK 17,2X24X1
  • 31
    0471170010 CIRCLIP DIN0471-17X1
    CIRCLIP DIN0471-17X1
  • 32
    0988162210 THRUST WASHER DIN0988-16X22X1
    THRUST WASHER DIN0988-16X22X1
  • 33
    0988172405 SHIM WASHER DIN0988-17X24X0,5
    SHIM WASHER DIN0988-17X24X0,5
  • 34
    54633090000 STOP DISK 17,2X25X1
    STOP DISK 17,2X25X1
  • 38
    50333038100 SPACER BUSHING 16X23X26X6,1
    SPACER BUSHING 16X23X26X6,1
  • 39
    0019080206S FLAT HEAD SCREW M. ISA45 M8X20
    FLAT HEAD SCREW M. ISA45 M8X20
  • 40
    0025060166 HH COLLAR SCREW M6X16
    HH COLLAR SCREW M6X16
  • 50
    77033050000 KICKSTARTER SHAFT
    KICKSTARTER SHAFT
  • 51
    77033051000 KICKSTART. GEAR 28-T
    KICKSTART. GEAR 28-T
  • 52
    50333052000 KICKSTARTER RATCHET
    KICKSTARTER RATCHET
  • 53
    77233053000 INTERMEDIATE GEAR
    INTERMEDIATE GEAR
  • 54
    77033054000 KICKSTARTER SPRING
    KICKSTARTER SPRING
  • 55
    77033055000 DRIVING HUB
    DRIVING HUB
  • 56
    50333056000 SPRING 1,4MM
    SPRING 1,4MM
  • 69
    50333069000 STOP MET.SHEET 4MM
    STOP MET.SHEET 4MM
  • 70
    77133070144 KICKSTARTER CPL.
    KICKSTARTER CPL.
  • 71
    0760172870 SHAFT SEAL RING 17X28X7 B
    SHAFT SEAL RING 17X28X7 B
  • 75
    54633037000 WASHER 8MM GALVANIZED
    WASHER 8MM GALVANIZED
