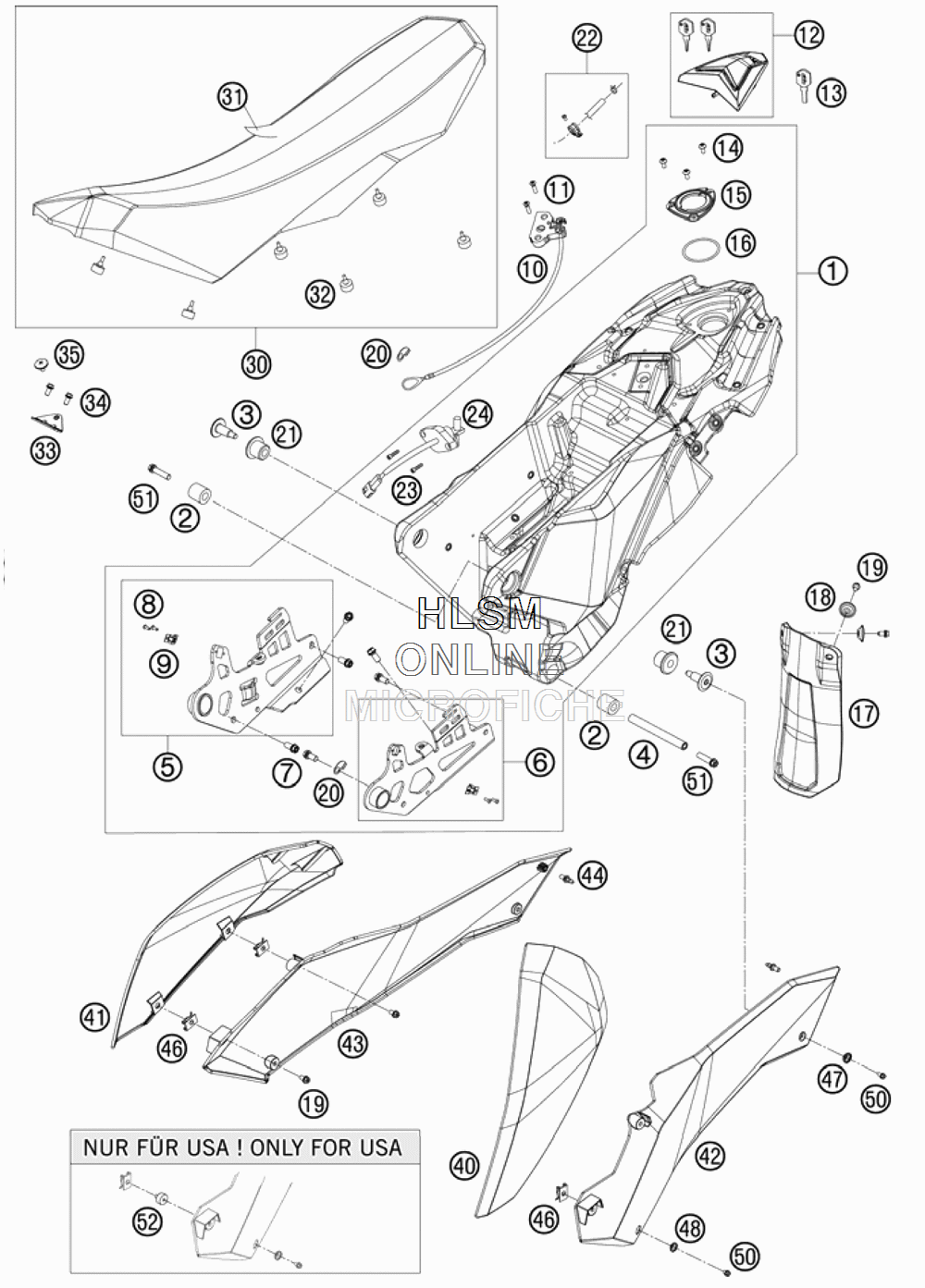

TANK SEAT COVER для Ktm 690 SMC - 2010 года выпуска`
-
№АртикулНазвание
-
17650701304433A FUEL TANK BLACK MATTFUEL TANK BLACK MATT
-
276507065000 RUBBER BEAR. BOX 12X24 L=24,5RUBBER BEAR. BOX 12X24 L=24,5
-
376507060000 BEARING BUSHING UPBEARING BUSHING UP
-
476507061000 BEARING BUSHING DOWNBEARING BUSHING DOWN
-
576507028000 TANK-RETAINING PLATE R/STANK-RETAINING PLATE R/S
-
676507027000 TANK-RETAINING PLATE L/STANK-RETAINING PLATE L/S
-
70025080166 HH COLLAR SCREW M8X16 TX40HH COLLAR SCREW M8X16 TX40
-
854806108052 BLIND RIVET 3,3X9,7 GROOVEDBLIND RIVET 3,3X9,7 GROOVED
-
954806008050 QUICK RELEASE-SPRING HANGERQUICK RELEASE-SPRING HANGER
-
1076507050000 SEAT LOCKSEAT LOCK
-
110738060181 COU.SUNK SCR. AH ISO7380 M6X18COU.SUNK SCR. AH ISO7380 M6X18
-
1276507008000 TANK PLUGTANK PLUG
-
1340011166100 KEY BLANK LC4/DUKE/LC8KEY BLANK LC4/DUKE/LC8
-
1340011166150 KEY MILLEDKEY MILLED
-
1458605083012 SCREW M5X12 TORX 25SCREW M5X12 TORX 25
-
1576507008050 CLOSURE FLANGECLOSURE FLANGE
-
160770050030 O-RING 50,00X3,00 VITONO-RING 50,00X3,00 VITON
-
1776506010000 SPLASHBACK 08SPLASHBACK 08
-
1872210079000 BUCKETBUCKET
-
190025060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
2076507053000 CLAMP F. CABLE SEAT LOCKCLAMP F. CABLE SEAT LOCK
-
2176507066000 RUBB.BEAR.BOX 12X24X35 L=24,5RUBB.BEAR.BOX 12X24X35 L=24,5
-
2276507031044 TANK BREAT. - MODIFICATION KITTANK BREAT. - MODIFICATION KIT
-
230912050163 AH SCREW DIN0912-M 5X16AH SCREW DIN0912-M 5X16
-
2458207080100 GAS-LEVEL SENSOR ADV.GAS-LEVEL SENSOR ADV.
-
3076507040000 SEATSEAT
-
3176507040050 SEAT COVERSEAT COVER
-
3275007046010 SEAT RUBBER 10 MMSEAT RUBBER 10 MM
-
3376507048000 BRACKET F. SEATBRACKET F. SEAT
-
340023060123 COLLAR SCREW M6X12 TXCOLLAR SCREW M6X12 TX
-
3558407011100 SCREW FOR SEAT M6X11,5/8SCREW FOR SEAT M6X11,5/8
-
40*7650805000030 SPOILER LEFT BLACKSPOILER LEFT BLACK
-
41*7650805100030 SPOILER RIGHT BLACKSPOILER RIGHT BLACK
-
42*7650804100028 SIDE COVER L/S WHITESIDE COVER L/S WHITE
-
43*7650804200028 SIDE COVER R/S WHITESIDE COVER R/S WHITE
-
4454806008051 QUICK RELEASE-NIPPLEQUICK RELEASE-NIPPLE
-
4654603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
4776508043150 COLLAR BUSHINGCOLLAR BUSHING
-
4876508043050 COLLAR BUSHINGCOLLAR BUSHING
-
500025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
510025080306 HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
5243205062100 RUBBER GROMMET 20X15-M6X10 (ONLY FOR USA)RUBBER GROMMET 20X15-M6X10 (ONLY FOR USA)
