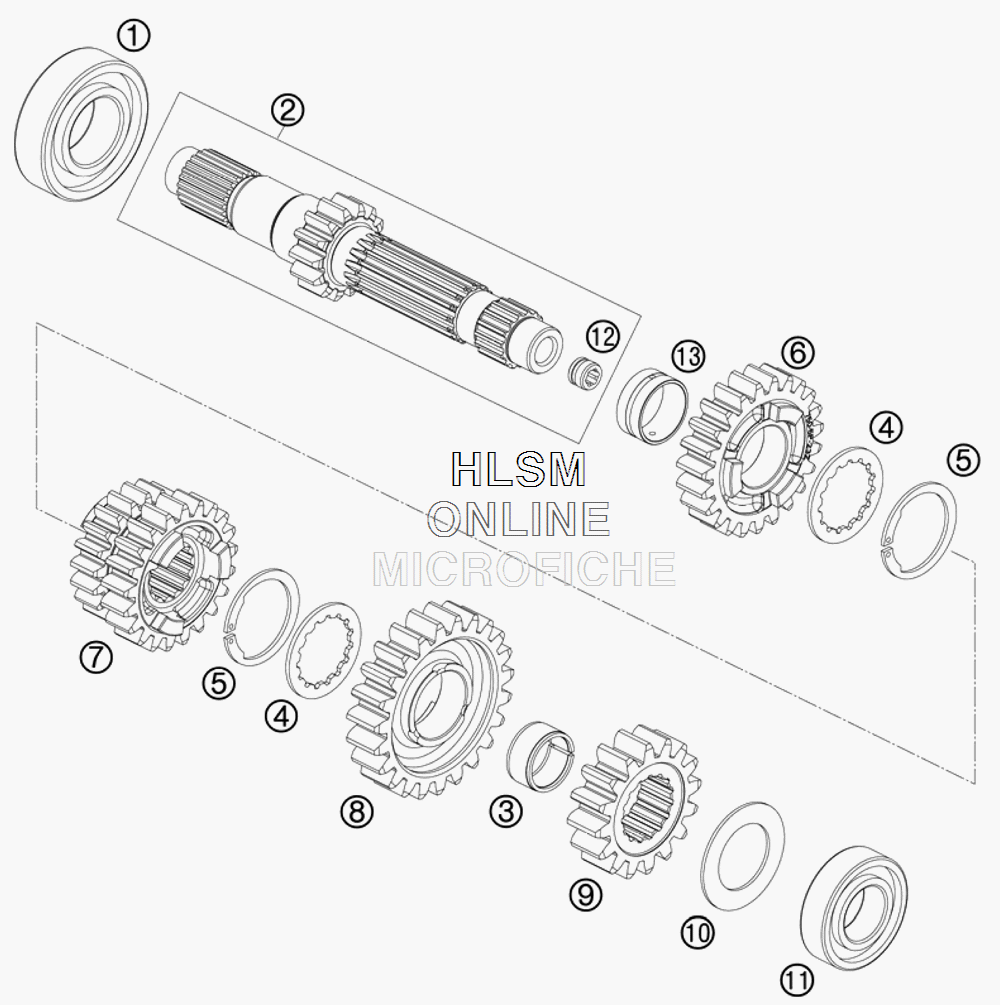

TRANSMISSION I - MAIN SHAFT для Ktm 690 SMC - 2010 года выпуска`
-
№АртикулНазвание
-
106252858161 BALL BEARING 58/28 C4 NBALL BEARING 58/28 C4 N
-
276233001000 MAIN SHAFTMAIN SHAFT
-
30405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
456533016300 STOP DISK 22,7 X 32 X 1,5STOP DISK 22,7 X 32 X 1,5
-
575033041000 STOP-V-RING AV25STOP-V-RING AV25
-
675033105000 IDLER GEAR 5.G.IDLER GEAR 5.G.
-
775033003000 3/4TH GEAR MAINSHAFT3/4TH GEAR MAINSHAFT
-
875033006000 IDLER 6. GEARIDLER 6. GEAR
-
975033002000 SOLID GEAR 2.G.SOLID GEAR 2.G.
-
1059033080000 SHIM 20X32X1SHIM 20X32X1
-
110625060041 BALL BEARING 6004 TNH C3BALL BEARING 6004 TNH C3
-
1277333001160 GUIDE BUSHINGGUIDE BUSHING
-
1376233022100 BEARING BUSHBEARING BUSH
