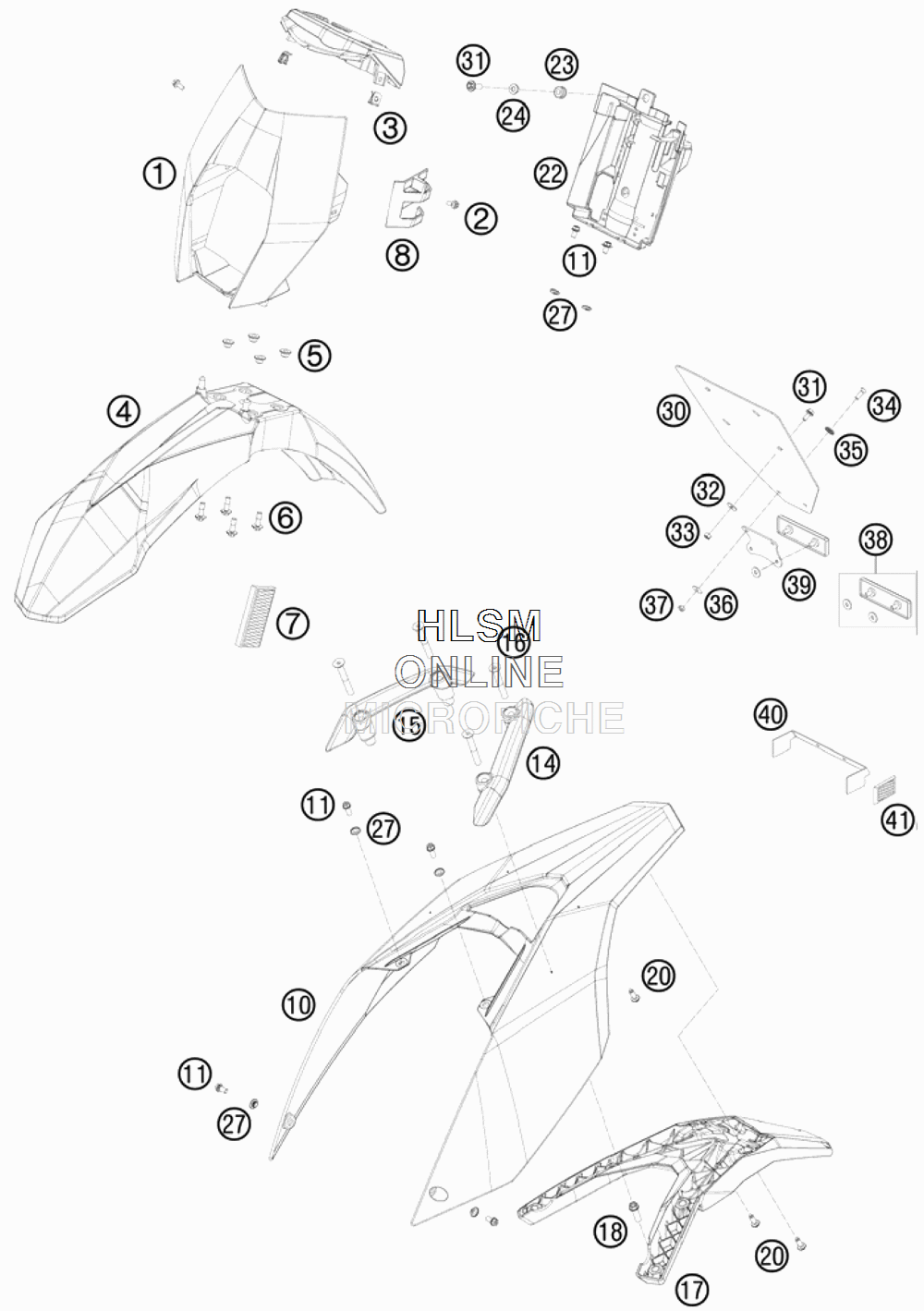

MASK FENDERS для Ktm 690 SMC - 2010 года выпуска

  • №
    Артикул
    Название
  • 1*
    7650800100030 HEAD LIGHT MASK
    HEAD LIGHT MASK
  • 2
    0025050206 HH COLLAR SCREW M5X20 TX30
    HH COLLAR SCREW M5X20 TX30
  • 3
    54603048200 RANGE CHANGE METAL NUT M5
    RANGE CHANGE METAL NUT M5
  • 4*
    7730821000028 FRONT FENDER WHITE
    FRONT FENDER WHITE
  • 5
    54808020000 SPACER BUSHING
    SPACER BUSHING
  • 6
    0024060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 7
    58412080100 REFLECTOR YELLOW (ONLY FOR USA AUS/UK)
    REFLECTOR YELLOW (ONLY FOR USA AUS/UK)
  • 8
    76513025000 BRAKE HOSE GUIDE
    BRAKE HOSE GUIDE
  • 10*
    7650801300028 REAR PART WHITE
    REAR PART WHITE
  • 11
    0025060166 HH COLLAR SCREW M6X16 TX30
    HH COLLAR SCREW M6X16 TX30
  • 14
    76512008000 HAND GRIP L/S
    HAND GRIP L/S
  • 15
    76512009000 HAND GRIP R/S
    HAND GRIP R/S
  • 16
    0019080756 COUNTERSUNK SCREW ISA45 M8X75
    COUNTERSUNK SCREW ISA45 M8X75
  • 17
    76508116100 NUMBER PLATE CARRIER TOP
    NUMBER PLATE CARRIER TOP
  • 18
    0025080256 HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 20
    0017060203 EJOT PT SCREW K60X20 W=6
    EJOT PT SCREW K60X20 W=6
  • 22
    76514064000 COVER
    COVER
  • 23
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 24
    75014010050 COLLAR BUSHING 6,1X8,1X14X8 07
    COLLAR BUSHING 6,1X8,1X14X8 07
  • 27
    76508043050 COLLAR BUSHING
    COLLAR BUSHING
  • 30
    60012081200 LICENCE FITTING
    LICENCE FITTING
  • 31
    0024060156 HH COLLAR SCREW M6X15 TX30
    HH COLLAR SCREW M6X15 TX30
  • 32
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 33
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 34
    0966050163 OVAL HEAD SCREW DIN0966-M 5X16
    OVAL HEAD SCREW DIN0966-M 5X16
  • 35
    40006006000 WASHER 6MM
    WASHER 6MM
  • 36
    0125050003 WASHER DIN0125-A 5,3
    WASHER DIN0125-A 5,3
  • 37
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 38
    58412080000 REFLECTOR RED LC4
    REFLECTOR RED LC4
  • 39
    58412080050 BRACKET FOR REFLECTOR
    BRACKET FOR REFLECTOR
  • 40
    62512081000 BRACKET SIDE REFLECTOR (ONLY FOR USA)
    BRACKET SIDE REFLECTOR (ONLY FOR USA)
  • 41
    16512180100 SIDE REFLECTOR RED REAR
    SIDE REFLECTOR RED REAR
