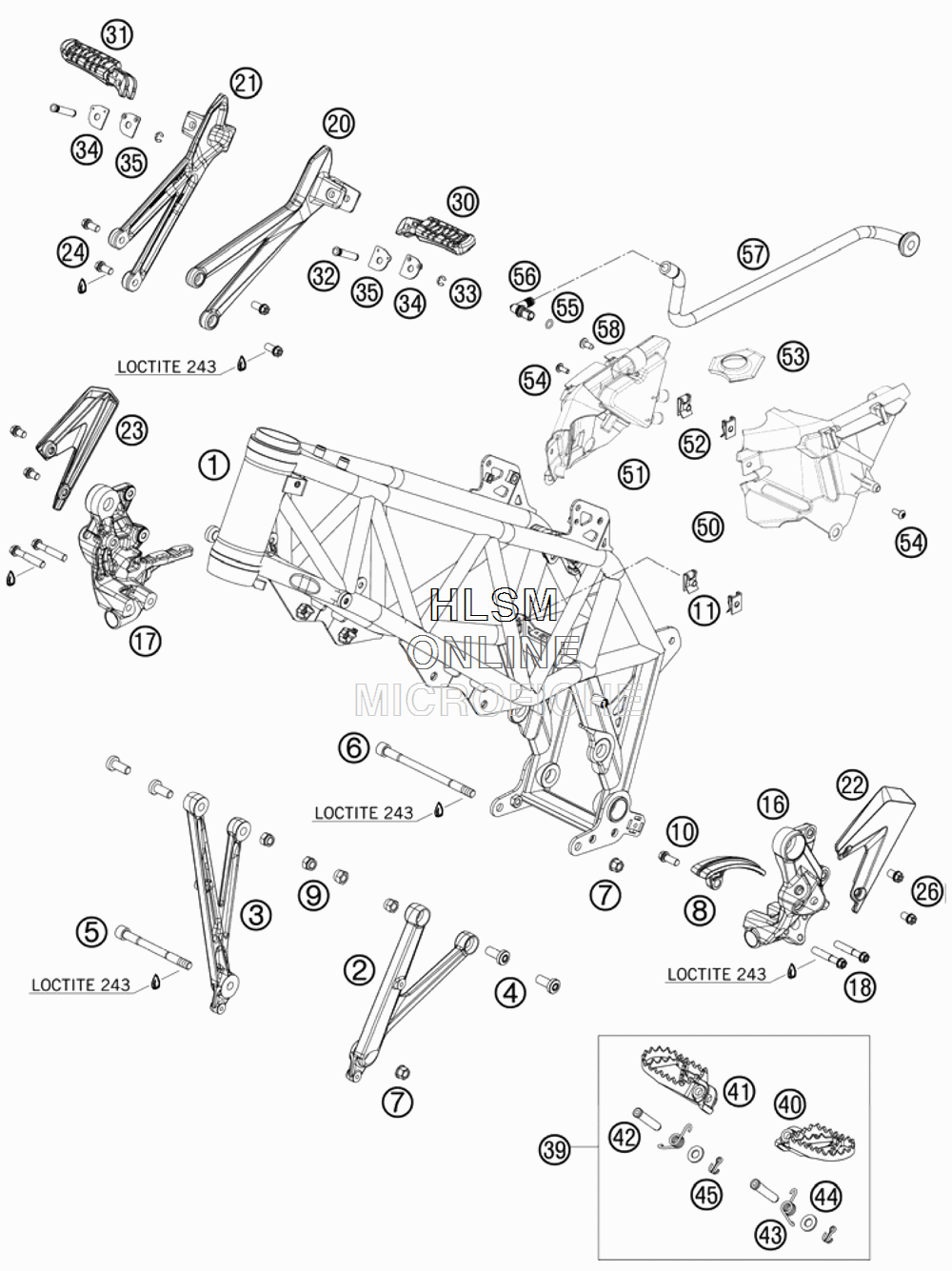

FRAME для Ktm 690 SMC - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    7650300100033 FRAME "EC08" BLACK MATT
    FRAME "EC08" BLACK MATT
  • 2
    7650300500001S ENGINE SUPPORT LEFT SIDE
    ENGINE SUPPORT LEFT SIDE
  • 3
    7650300600001S ENGINE SUPPORT RIGHT SIDE
    ENGINE SUPPORT RIGHT SIDE
  • 4
    0035100249 AH-COLLAR SCREW M10X24 ISA45
    AH-COLLAR SCREW M10X24 ISA45
  • 5
    75003015000 SPECIAL SCREW M10X115 ISK8 07
    SPECIAL SCREW M10X115 ISK8 07
  • 6
    75003014000 SCREW
    SCREW
  • 7
    54630044000 COLLAR NUT M10 WS=13
    COLLAR NUT M10 WS=13
  • 8
    76504067000 CHAIN SLID. GUARD
    CHAIN SLID. GUARD
  • 9
    54310086100 SELF LOCKING NUT M10 CU WS=14
    SELF LOCKING NUT M10 CU WS=14
  • 10
    0025080206 HH COLLAR SCREW M8X20 TX40
    HH COLLAR SCREW M8X20 TX40
  • 11
    54603048500 RANGE CHANGE METAL NUT M4
    RANGE CHANGE METAL NUT M4
  • 16
    7650303804401S FOOTREST BRACKET L/S
    FOOTREST BRACKET L/S
  • 17
    7650303904401S FOOTREST BRACKE R/S
    FOOTREST BRACKE R/S
  • 18
    0025080456 HH COLLAR SCREW M8X45 TX40
    HH COLLAR SCREW M8X45 TX40
  • 20
    7650304800001S FOOT REST BRACKET REAR L/S
    FOOT REST BRACKET REAR L/S
  • 21
    7650304900001S FOOT REST BRACKET REAR R/S
    FOOT REST BRACKET REAR R/S
  • 22
    76503038150 HEEL PROTECTOR LS
    HEEL PROTECTOR LS
  • 23
    76503039050 HEEL PROTECTOR RS
    HEEL PROTECTOR RS
  • 24
    0025080166 HH COLLAR SCREW M8X16 TX40
    HH COLLAR SCREW M8X16 TX40
  • 26
    0025080126 HH COLLAR SCREW M8X12 TX40
    HH COLLAR SCREW M8X12 TX40
  • 30
    60003050000 FOOTREST CPL. L/S REAR
    FOOTREST CPL. L/S REAR
  • 31
    60003051000 FOOTREST CPL. R/S REAR
    FOOTREST CPL. R/S REAR
  • 32
    60003044000 BOLT FOR FOOTREST REAR
    BOLT FOR FOOTREST REAR
  • 33
    0799060003 TAB WASHER DIN6799-RS 6,0
    TAB WASHER DIN6799-RS 6,0
  • 34
    60003052000 ENGAGE PANEL FOOTREST R/S
    ENGAGE PANEL FOOTREST R/S
  • 35
    60003152000 ENGAGE PANEL FOOTREST L/S
    ENGAGE PANEL FOOTREST L/S
  • 39
    76503040033 FOOTREST L/S+R/S CPL.
    FOOTREST L/S+R/S CPL.
  • 40
    59003040250 FOOT PEG L/S SILVER
    FOOT PEG L/S SILVER
  • 41
    59003041250 FOOT PEG R/S SILVER
    FOOT PEG R/S SILVER
  • 42
    76503044000 BOLT FOR FOOT PED
    BOLT FOR FOOT PED
  • 43
    54603041000 FOOTREST SPRING L/S & R/S
    FOOTREST SPRING L/S & R/S
  • 44
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 45
    0094032253 PIN DIN0094-3,2X25 STEEL
    PIN DIN0094-3,2X25 STEEL
  • 50*
    76503083100 COVER FRAME L/S
    COVER FRAME L/S
  • 51*
    76503084100 COVER FRAME R/S
    COVER FRAME R/S
  • 52
    69008021080 RANGE CHANGE METAL NUT M5
    RANGE CHANGE METAL NUT M5
  • 53*
    76503085000 COVER FOR IGNITION LOCK
    COVER FOR IGNITION LOCK
  • 54
    58605083014 SCREW M5X14 TORX 25
    SCREW M5X14 TORX 25
  • 55
    0770080020 O-RING 8X2 SILICONE
    O-RING 8X2 SILICONE
  • 56
    60038082000 ANGLE CONNECTOR LC8
    ANGLE CONNECTOR LC8
  • 57
    76530087000 VENTILATION OIL SEPARATOR FOAM
    VENTILATION OIL SEPARATOR FOAM
  • 58
    0081050181 SCREW FOR PLASTIC K50X18 T20
    SCREW FOR PLASTIC K50X18 T20
