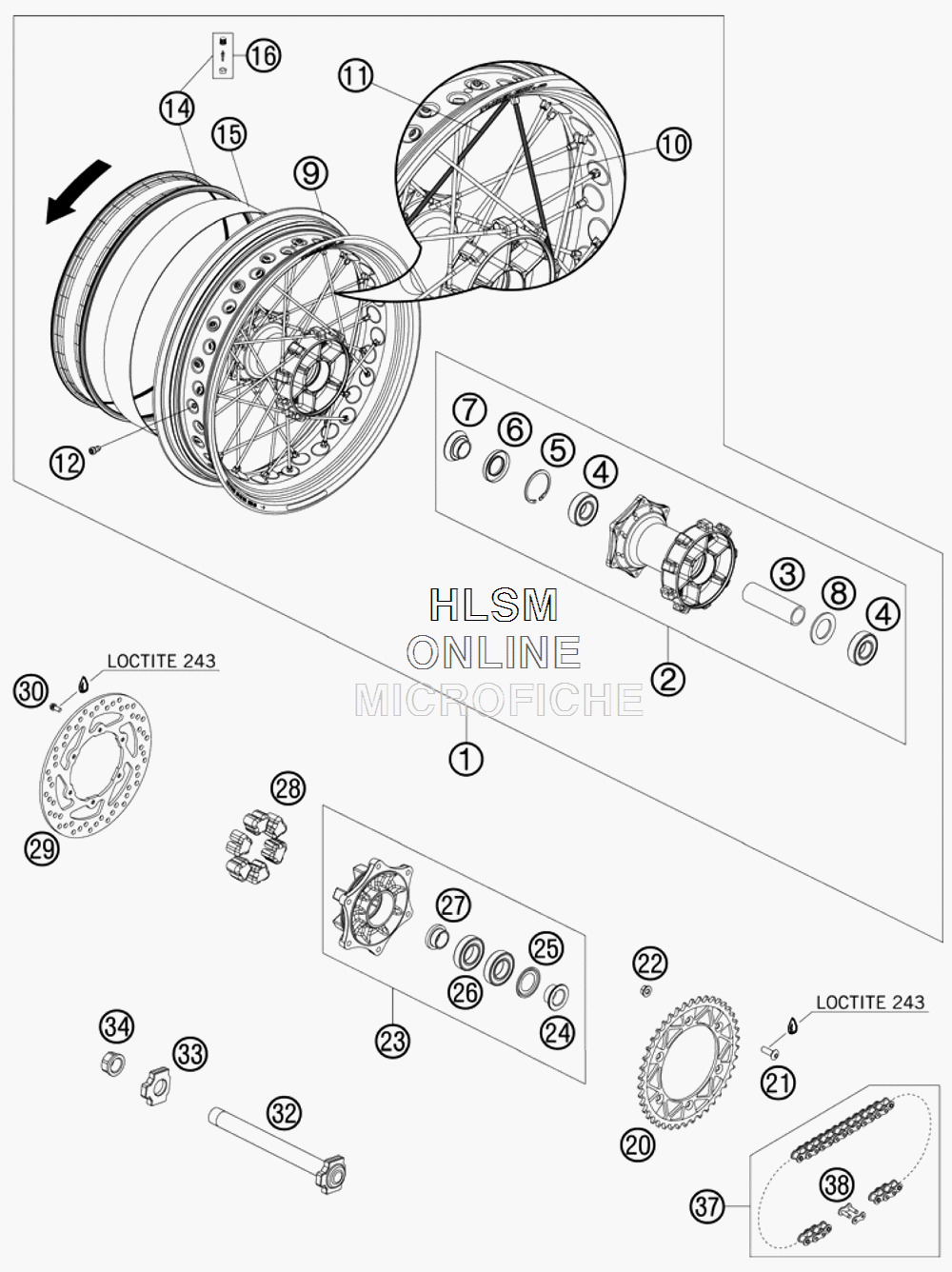

REAR WHEEL для Ktm 690 SMC - 2010 года выпуска`
-
№АртикулНазвание
-
1*7501010104430 RE. WHEEL CPL. 5X17" TUBELESSRE. WHEEL CPL. 5X17" TUBELESS
-
275310010044 REAR HUB CPL.REAR HUB CPL.
-
375310011000 BEARING SPACER TUBE L=106MMBEARING SPACER TUBE L=106MM
-
40625062052 GR.BALL BEAR. 6205-2RSHC3HMTF7GR.BALL BEAR. 6205-2RSHC3HMTF7
-
50472052200 CIRCLIP DIN0472-52X2CIRCLIP DIN0472-52X2
-
60760305271 SHAFT SEAL RING 30X52X7SHAFT SEAL RING 30X52X7
-
760110013000 SPACER BUSH. REAR WHEEL R/SSPACER BUSH. REAR WHEEL R/S
-
860010015000 SPACER RINGSPACER RING
-
9*7501017000030 TL RIM 5X17"TL RIM 5X17"
-
10*75010073196 SPOKE M4,5X196-16G 17" INOXSPOKE M4,5X196-16G 17" INOX
-
11*81210171181 SPOKE M4,5X0,75X181SPOKE M4,5X0,75X181
-
12*81210072000 SPOKE NIPPLE QUADRAX M4,5SPOKE NIPPLE QUADRAX M4,5
-
14*75010177044 GASKET RUB. 17X5" CPL.W. VALVEGASKET RUB. 17X5" CPL.W. VALVE
-
15*81210073000 RIM TAPE 17"X4,50/5,00"RIM TAPE 17"X4,50/5,00"
-
16*81210076000 VALVE CPL.VALVE CPL.
-
2075010051040 SPROCKET STEALTH 40TSPROCKET STEALTH 40T
-
2075010051042 SPROCKET STEALTH 42TSPROCKET STEALTH 42T
-
210019080266S COUNTER-SUNK SCREW ISA45 M8X26COUNTER-SUNK SCREW ISA45 M8X26
-
2254310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
23*7501005004491 SPROCKET SUPPORT CPL. SILVERSPROCKET SUPPORT CPL. SILVER
-
2460110012000 SPACER BUSH. SPROCKET SUPP.SPACER BUSH. SPROCKET SUPP.
-
2560110016000 NILOS RING 6006AVNILOS RING 6006AV
-
260625060060 BALL BEARING 6006 DDU2CG23S6NMBALL BEARING 6006 DDU2CG23S6NM
-
2760110014000 SPACER BUSH. SPR. SUPP. IN.SPACER BUSH. SPR. SUPP. IN.
-
2854610459000 RUBBER DAMPING BLOCKRUBBER DAMPING BLOCK
-
2960010060000 REAR BRAKE DISK D=240MMREAR BRAKE DISK D=240MM
-
3059009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
3275310085144 WHEEL SPINDLE CPL.WHEEL SPINDLE CPL.
-
3360010084000 CHAIN TENSIONER R/S LC8CHAIN TENSIONER R/S LC8
-
3460010086000 COLLAR NUT WH. SPINDLE REARCOLLAR NUT WH. SPINDLE REAR
-
3776510065116 CHAIN X-RING 116 + RIVET LINKCHAIN X-RING 116 + RIVET LINK
-
3876510066000 RIVET LINK FOR 76510065116RIVET LINK FOR 76510065116
