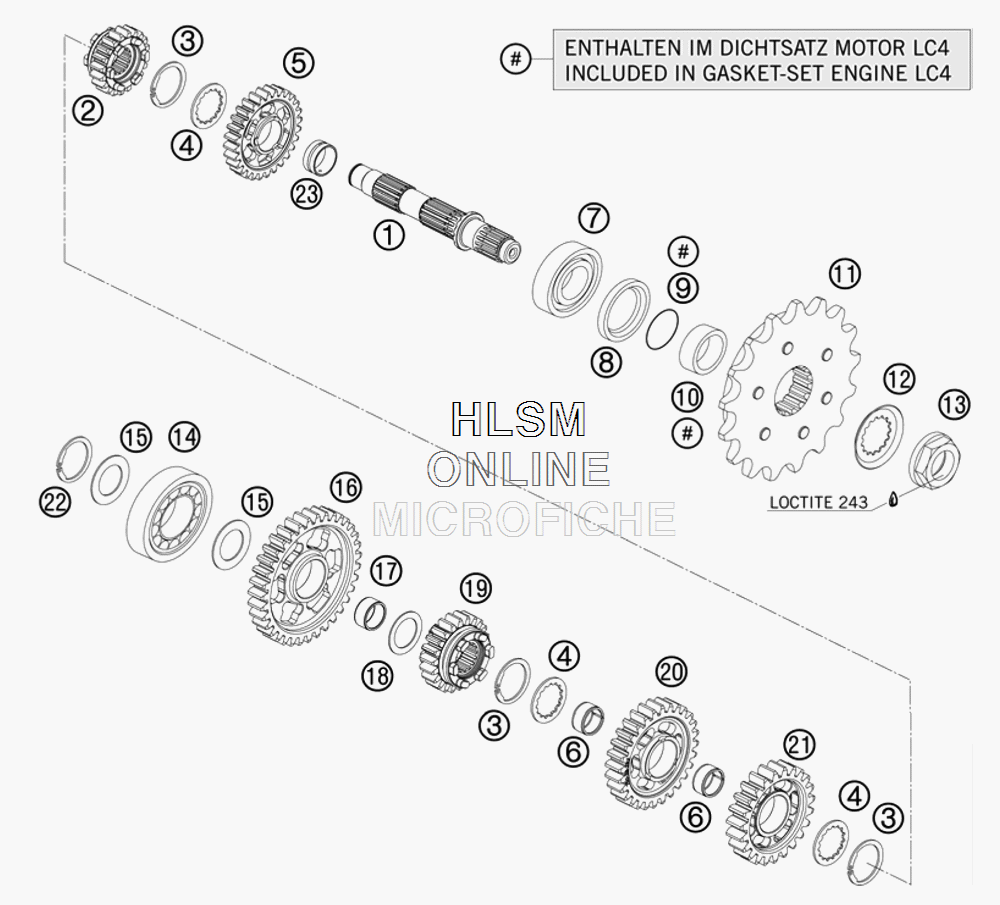

TRANSMISSION II - COUNTERSHAFT для Ktm 690 DUKE (ORANGE) - 2010 года выпуска`

№

Артикул

Название
1

76233010000 COUNTER SHAFT

COUNTER SHAFT

56 740 ₽
2

75033016000 SLIDING GEAR 6TH G.

SLIDING GEAR 6TH G.

21 320 ₽
3

0417025000 CIRCLIP SW25

CIRCLIP SW25

790 ₽
4

56533016300 STOP DISK 22,7 X 32 X 1,5

STOP DISK 22,7 X 32 X 1,5

1 520 ₽
5

76233012100 IDLER 2. GEAR

IDLER 2. GEAR

49 210 ₽
6

0405222613 NEEDLE BEAR. K 22X26X13 TN

NEEDLE BEAR. K 22X26X13 TN

2 340 ₽
7

49030023100 CYL.ROLLER BEARING NJ205 C4

CYL.ROLLER BEARING NJ205 C4

16 040 ₽
8

0760324773 SHAFT SEAL R. 32X47X7BSL VITON

SHAFT SEAL R. 32X47X7BSL VITON

2 310 ₽
9

0770020220 O-RING 25,12X1,78 NBR70

O-RING 25,12X1,78 NBR70

590 ₽
10

54633014100 SPACER BUSHING 12MM

SPACER BUSHING 12MM

5 140 ₽
11

58033029115 ENGINE SPROCKET 15 T DAMPED

ENGINE SPROCKET 15 T DAMPED

8 050 ₽
11

58033029116 ENGINE SPROCKET 16 T DAMPED

ENGINE SPROCKET 16 T DAMPED

8 050 ₽
11

58033029117 ENGINE SPROCKET 17 T DAMPED

ENGINE SPROCKET 17 T DAMPED

8 050 ₽
12

51033031000 LOCK WASHER

LOCK WASHER

1 230 ₽
13

58033032200 SPROCKET NUT LC4

SPROCKET NUT LC4

3 760 ₽
14

0625204213 BALL BEARING 6004 C4 N

BALL BEARING 6004 C4 N

2 570 ₽
15

59033080000 SHIM 20X32X1

SHIM 20X32X1

440 ₽
16

75033011000 IDLER GEAR 1ST GEAR

IDLER GEAR 1ST GEAR

15 800 ₽
17

56533098000 NEEDLE BEARING K22X26X13H

NEEDLE BEARING K22X26X13H

3 210 ₽
18

54603036000 STOP DISK 22,2X31,7X1

STOP DISK 22,2X31,7X1

440 ₽
19

75033015000 5TH GEAR COUNTERSHAFT

5TH GEAR COUNTERSHAFT

21 730 ₽
20

75033013000 IDLER GEAR 3.G

IDLER GEAR 3.G

14 930 ₽
21

75033014000 IDLER GEAR 4.G

IDLER GEAR 4.G

14 930 ₽
22

0471200120 CIRCLIP DIN471 20X1,2

CIRCLIP DIN471 20X1,2

290 ₽
23

76233022100 BEARING BUSH

BEARING BUSH

28 390 ₽
