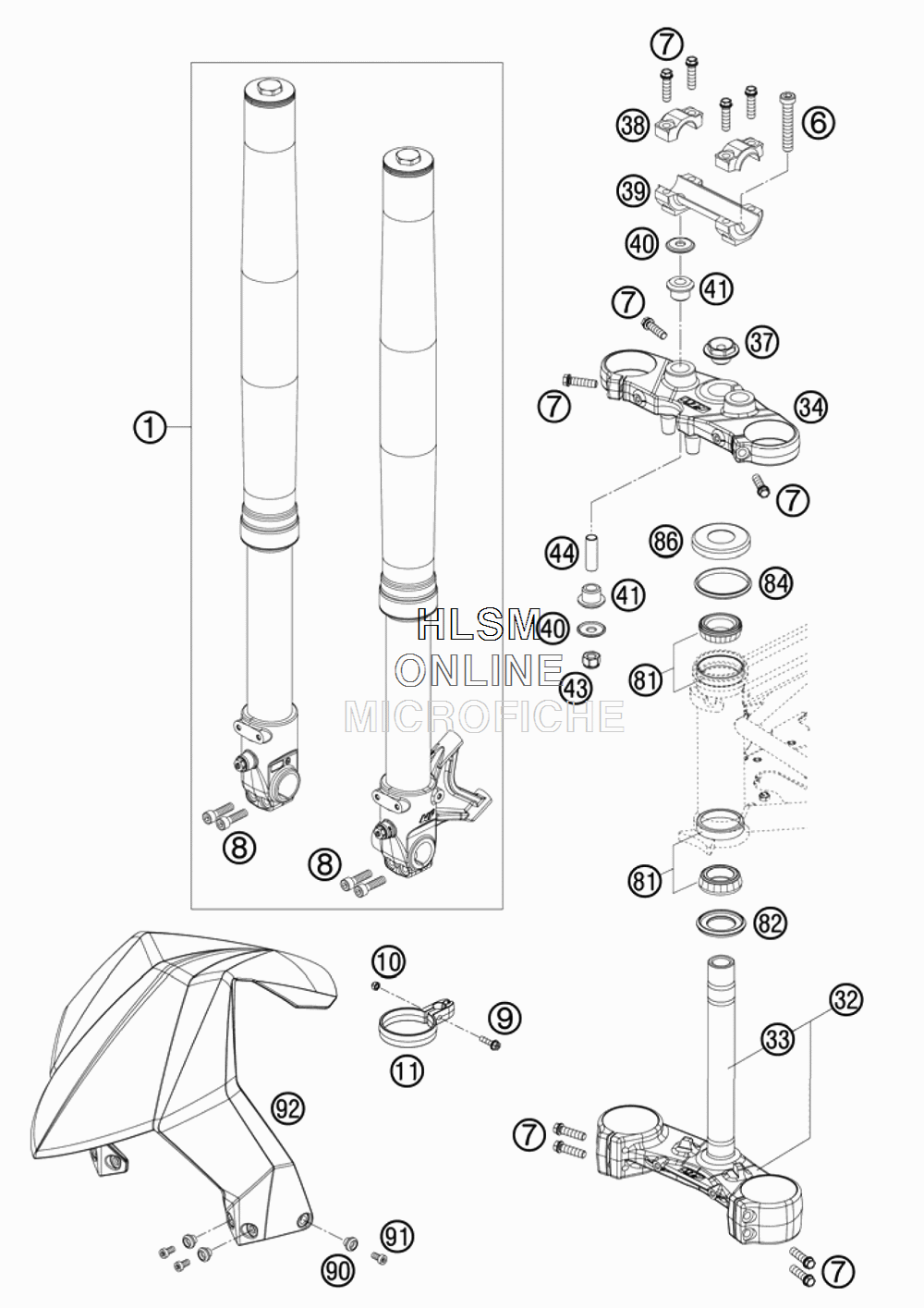

FRONT FORK TRIPLE CLAMP для Ktm 690 DUKE (ORANGE) - 2010 года выпуска

  • №
    Артикул
    Название
  • 1*
    14187J0901 FRONT FORK KTM 690 DUKE
    FRONT FORK KTM 690 DUKE
  • 6
    0012100603 AH SCREW DIN6912-M10X60
    AH SCREW DIN6912-M10X60
  • 7
    0025080306 HH COLLAR SCREW M8X30 TX40
    HH COLLAR SCREW M8X30 TX40
  • 8
    0912080303 AH SCREW DIN0912-M 8X30
    AH SCREW DIN0912-M 8X30
  • 9
    0025050206 HH COLLAR SCREW M5X20 TX30
    HH COLLAR SCREW M5X20 TX30
  • 10
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 11
    75001070000 CLAMP BRAKE HOSE
    CLAMP BRAKE HOSE
  • 32
    7500103203201S BOTTOM TRIPLE CLAMP CPL.
    BOTTOM TRIPLE CLAMP CPL.
  • 33
    60001033000 FORK TUBE LC8 ADV
    FORK TUBE LC8 ADV
  • 34
    7500103403201S TOP TRIPLE CLAMP 54MM
    TOP TRIPLE CLAMP 54MM
  • 37
    54801036000 STEER.HEAD SCREW M20X1,5 WS=27
    STEER.HEAD SCREW M20X1,5 WS=27
  • 38
    5900103830001S HANDLEBAR CLAMP 28MM
    HANDLEBAR CLAMP 28MM
  • 39
    5900103920001S HANDLEBAR SUPPORT 28MM
    HANDLEBAR SUPPORT 28MM
  • 40
    56401042000 WASHER 10,5X32X2
    WASHER 10,5X32X2
  • 41
    56401040000 RUBBER BUSHING
    RUBBER BUSHING
  • 43
    0982100003 SELF LOCK.NUT DIN0982-M10 HIGH
    SELF LOCK.NUT DIN0982-M10 HIGH
  • 44
    61001041000 SPACER TUBE 10,2X12X38
    SPACER TUBE 10,2X12X38
  • 81
    54201081100 TAPERED ROLLER BEARING CPL.
    TAPERED ROLLER BEARING CPL.
  • 82
    54601084100 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 84
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 86
    61001086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 90
    75001094010 BUSHING MUD FLAP
    BUSHING MUD FLAP
  • 91
    0012060123 AH SCREW DIN6912 M6X12
    AH SCREW DIN6912 M6X12
  • 92
    7560801000040A FENDER FRONT BLACK MET.
    FENDER FRONT BLACK MET.
