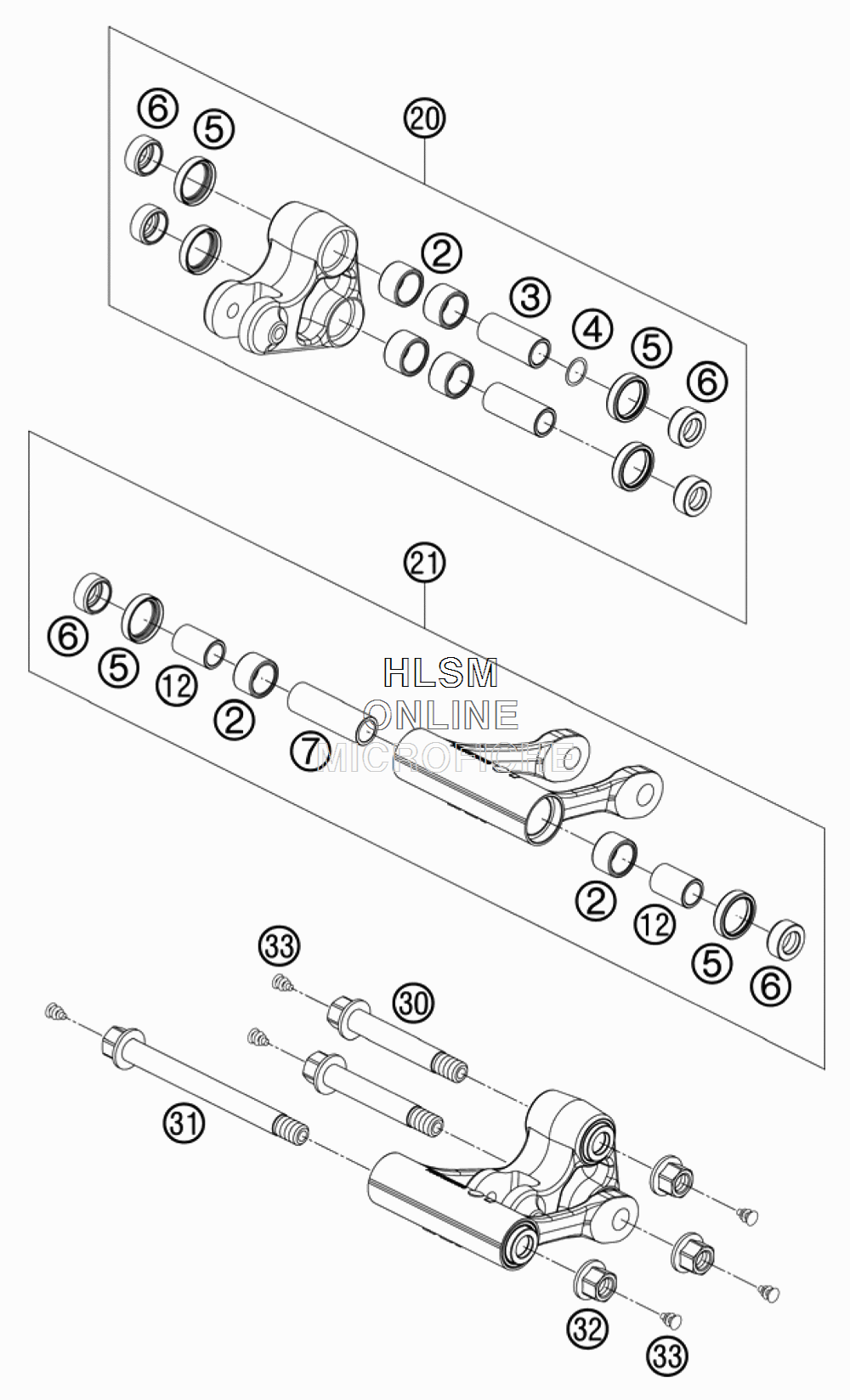

PRO LEVER LINKING для Ktm 690 DUKE (ORANGE) - 2010 года выпуска

  • №
    Артикул
    Название
  • 2
    54603097000 NEEDLE BUSH HK 2016
    NEEDLE BUSH HK 2016
  • 3
    54603081000 BUSHING SLEEVE 15 X 20 X 48
    BUSHING SLEEVE 15 X 20 X 48
  • 4
    54603090020 STEEL WASHER 15,2X19X0,2
    STEEL WASHER 15,2X19X0,2
  • 5
    0760253270 SHAFT SEAL RING 25X32X7
    SHAFT SEAL RING 25X32X7
  • 6
    58303090000 SPAC.F.SHAFT SEALRING 15X25X11
    SPAC.F.SHAFT SEALRING 15X25X11
  • 7
    75004084000 SPACER SLEEVE 15X20X63
    SPACER SLEEVE 15X20X63
  • 12
    50203081800 BEARING BUSHING
    BEARING BUSHING
  • 20
    7500408004401 SETTING LEVER CPL.
    SETTING LEVER CPL.
  • 21
    7500408304401 INTERMEDIATE LEVER CPL.
    INTERMEDIATE LEVER CPL.
  • 30
    54603182044 BOLT CPL.
    BOLT CPL.
  • 31
    75004085044 BOLT CPL. M14X1,5 L=175MM
    BOLT CPL. M14X1,5 L=175MM
  • 32
    54603015000 SELF LOCKING NUT M14X1,5 WS=19
    SELF LOCKING NUT M14X1,5 WS=19
  • 33
    54403135000 PLASTIC CAP SFL10
    PLASTIC CAP SFL10
